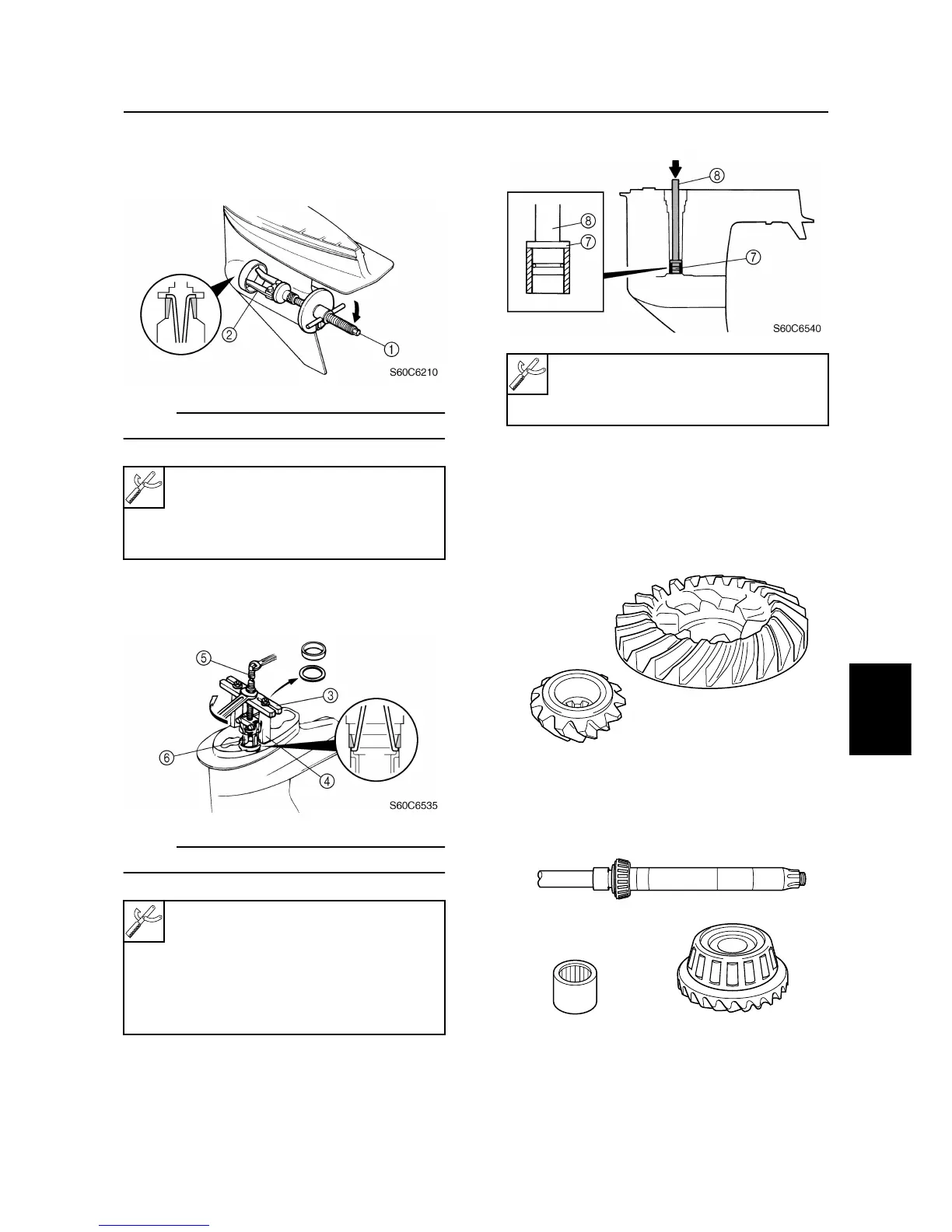

Disassembling the lower case
1. Remove the taper roller bearing outer
race and shim(s).
NOTE:
Install the claws as shown.
2. Remove the drive shaft bearing outer
race, shim(s), and drive shaft sleeve.
NOTE:
Install the claws as shown.
3. Remove the needle bearing.
Checking the pinion and forward
gear
1. Check the teeth of the pinion, and the
teeth and dogs of the forward gear for
cracks or wear. Replace if necessary.
Checking the bearings
1. Check the bearings for pitting or rum-
bling. Replace if necessary.
Checking the drive shaft
1. Check the drive shaft for bends or wear.
Replace if necessary.
Bearing outer race puller
1
:
90890-06523
Outer race puller claw A
2
:
90890-06532
Stopper guide plate
3
: 90890-06501
Stopper guide stand
4
:
90890-06538
Bearing puller
5
: 90890-06535
Bearing puller claw 1
6
:
90890-06536
Needle bearing attachment
7
:
90890-06611
Driver rod L3
8
: 90890-06652
S60C6220
S60C6545
Drive shaft and lower case (F100C)
