BRKT
Bracket unit
7-51
60C5D11

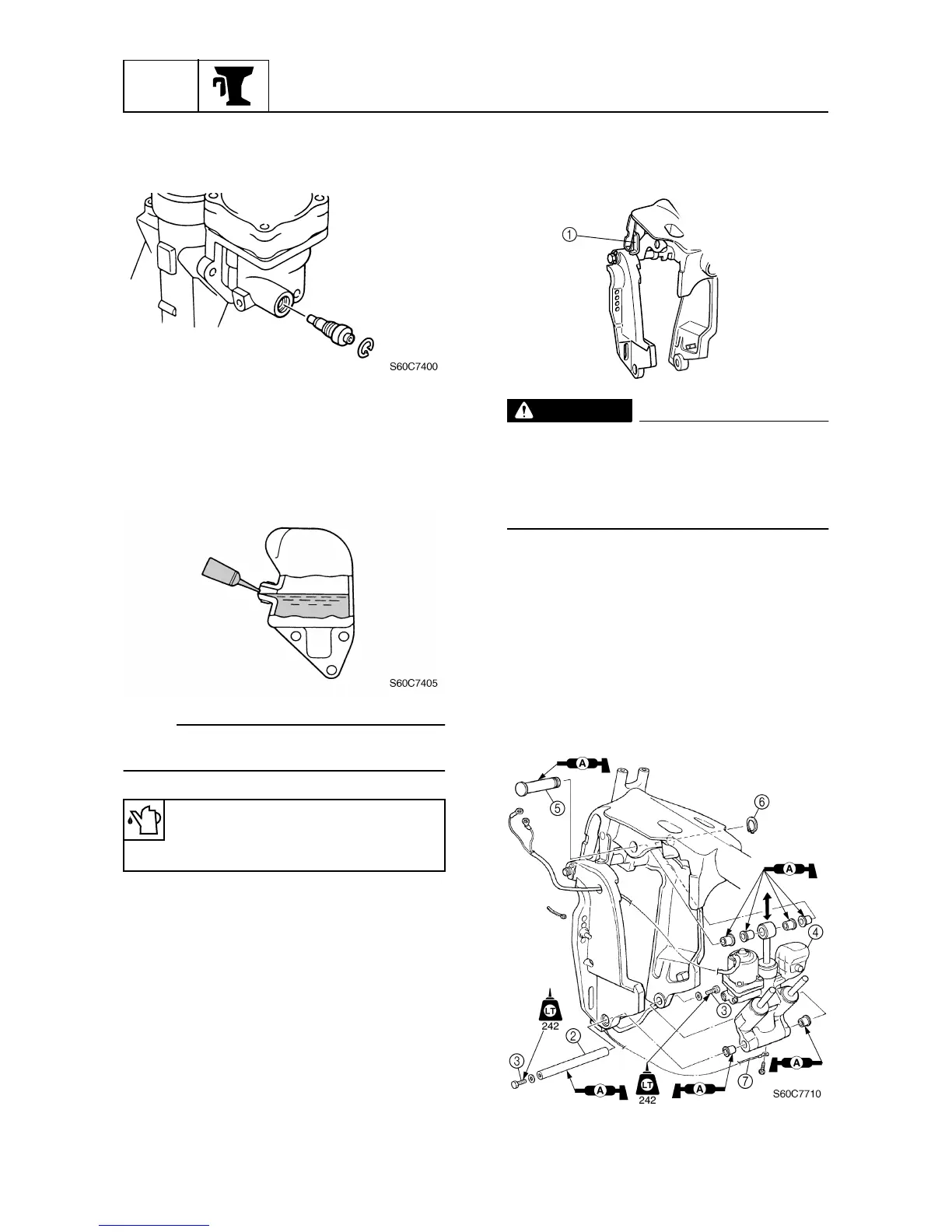

10. Remove the special tools.
11. Install the manual valve and circlip.
12. Remove the reservoir cap, and then
check the fluid level in the reservoir.
13. If necessary, add fluid of the recom-
mended type to the correct level.
NOTE:
The fluid level should be at the brim of the
filler hole.
14. Install the reservoir cap.
Installing the power trim and tilt unit
1. Fully tilt the outboard motor up, and then
support it with the tilt stop lever
1
.
WARNING
After tilting up the outboard motor, be
sure to support it with the tilt stop lever.
Otherwise, the outboard motor could sud-
denly lower if the power trim and tilt unit
should lose fluid pressure.
2. Install the shaft
2
and bolts
3
onto both
clamp brackets together with the power
trim and tilt unit
4
.
3. Install the tilt ram upper end into the
swivel bracket with the shaft
5
and cir-
clip
6
.
4. Connect the ground lead
7
.
Recommended power trim and tilt
fluid:
ATF Dexron
II
S60C7705
To Next Page
