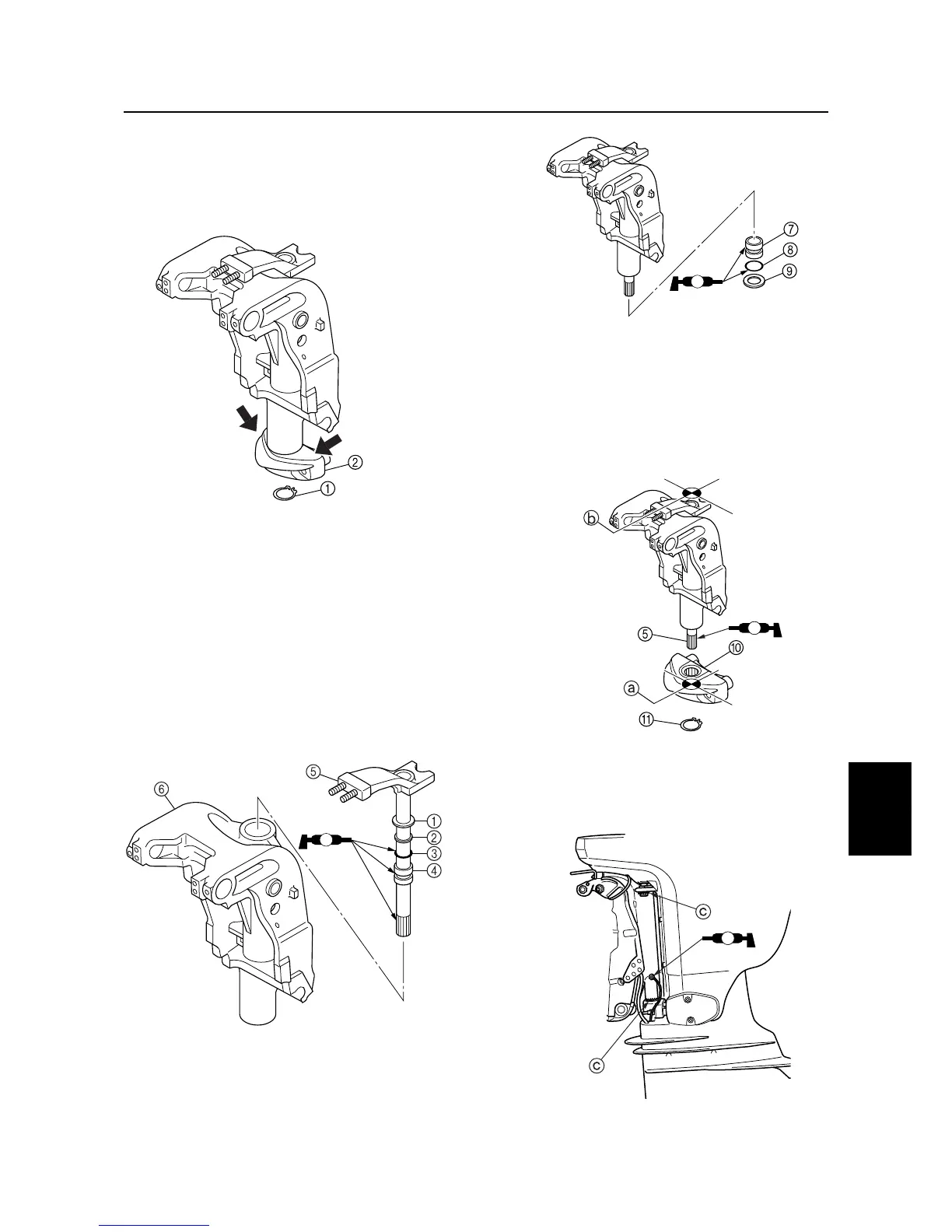

Removing the steering arm
1. Remove the circlip
1
.
2. Remove the steering yoke
2
by striking
it with a plastic hammer.
3. Remove the steering arm from the swivel
bracket by pulling the arm off the bracket.
Installing the steering arm
1. Install the washer
1
, bushing
2
, O-ring
3
, and bushing
4
onto the steering arm
5
.
2. Place the swivel bracket
6
in an upright
position, and then install the steering arm
onto the swivel bracket.
3. Install the bushing
7
, O-ring
8
, and
washer
9
onto the swivel bracket.
4. Install the steering arm
5
into the steer-
ing yoke
0
by aligning the center
a
of
the yoke with the center
b
of the steer-
ing arm.
5. Install the circlip
A
.
6. Inject grease into the grease nipple until
grease comes out from both the upper
and lower bushings
c
.
S60C7235
S60C7240
AA
S60C7245
AA
S60C7250
A
S60C7255
AA
Swivel bracket and clamp brackets (F100C)
