Yamaha F100B Service Manual

BRKT
Bracket unit
7-75
60C5D11

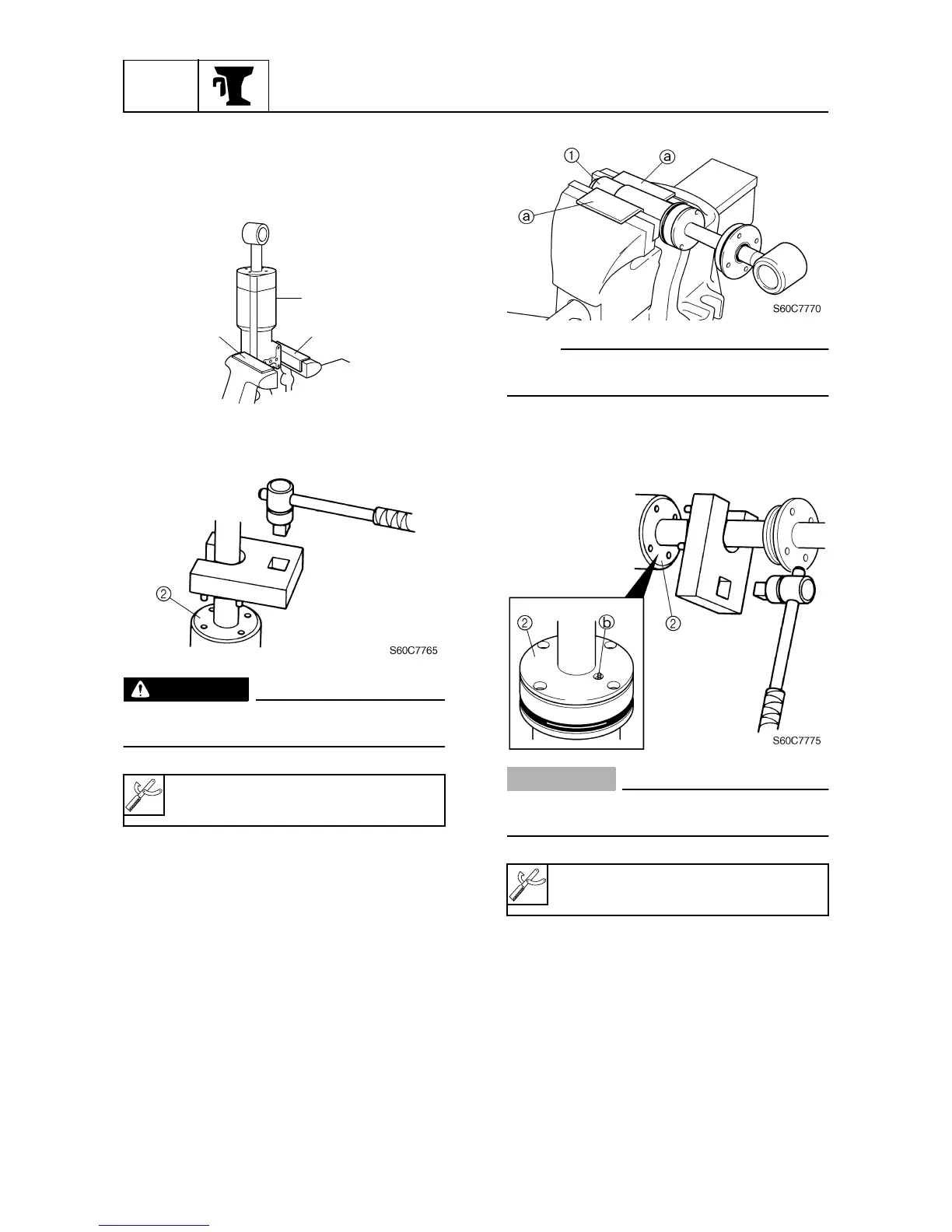

Disassembling the tilt cylinder
1. Hold the power trim and tilt unit
1
in a
vise using aluminum plates
a
on both
sides.
2. Loosen the tilt cylinder end screw
2
, and
then remove it.
WARNING
Make sure that the ram is fully extended
before removing the end screw.
3. Drain the fluid.
Disassembling the trim cylinder
1. Hold the trim cylinder
1
in a vise using
aluminum plates
a
on both sides.
NOTE:
Place the trim cylinder in the vise horizon-
tally.
2. Loosen the trim cylinder end screw
2
,
and then remove it.
CAUTION:
Do not damage the check valve
b
when
loosening the end screw.
Checking the tilt cylinder and trim
cylinder
1. Check the power trim and tilt unit for
cracks or corrosion. Replace if neces-
sary.
2. Check the inner walls of the trim cylinder
and tilt cylinder for scratches. Replace if
necessary.
Cylinder-end screw wrench:
90890-06544
S60C7760
1
aa
Cylinder-end screw wrench:
90890-06544
