ELEC
Electrical systems
– +
8-19
60C5D11

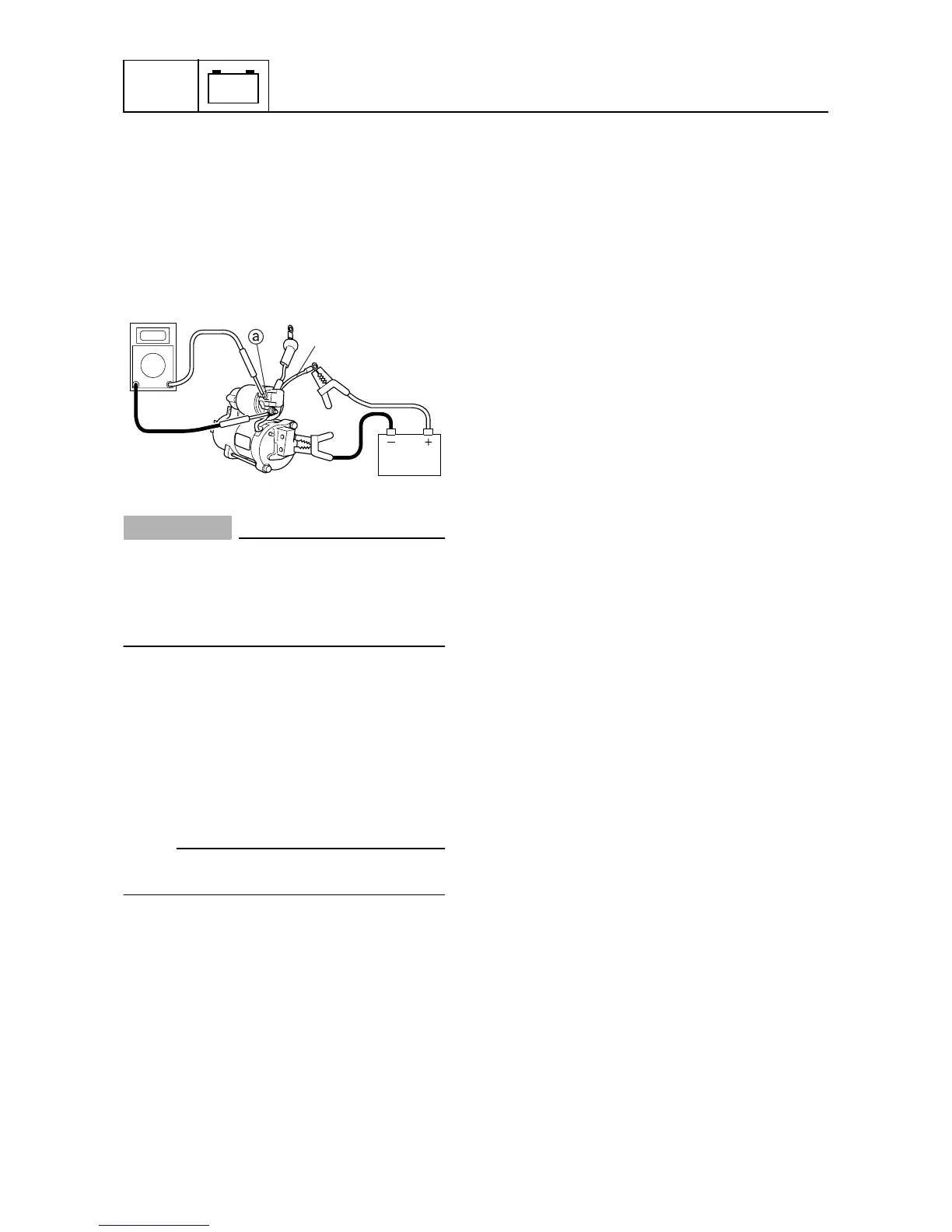

Checking the relay assembly
1. Connect the tester leads between the
relay terminals as shown.
2. Connect the positive battery terminal to
the black and white (B/W) lead.
3. Connect the negative battery terminal to
the starter motor body.
CAUTION:
• Do not connect the battery for more than
one second, otherwise the relay may be
damaged.
• Do not connect the positive battery ter-
minal the position
a
shown.
4. Check that there is continuity between
the relay terminals. Replace if there is no
continuity.
5. Check that there is no continuity after the
negative battery terminal is removed.
Replace if there is continuity.
NOTE:
The starter motor pinion should be pushed
out while the relay is on.
Checking the starter motor operation
1. Check the operation of the starter motor
after installing it to the power unit.
S60C8350
B/W
