Yamaha F100B - Installing the Trim Rams

60C5D11
7-34
1
2
3
4
5
6
7
8
9

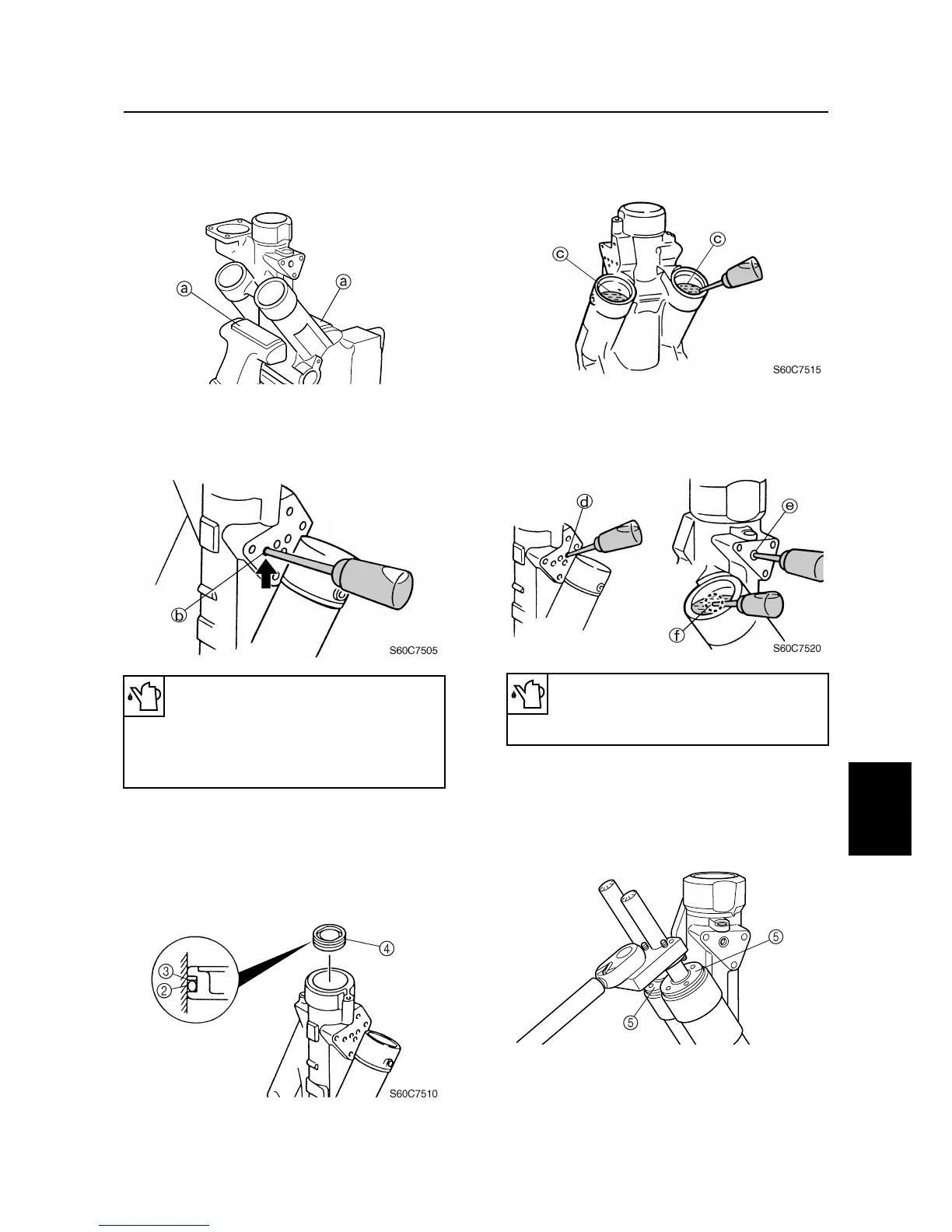

Installing the trim rams
1. Hold the cylinder body
1
in a vise using
aluminum plates
a
on both sides.
2. Add the specified amount of the recom-
mended fluid through the cylinder body
hole
b
.
3. Install the new O-ring
2
and backup ring
3
to the free piston
4
.
4. Push the free piston
4
into the tilt cylin-
der until it bottoms out.
5. Fill the trim cylinders
c
with the recom-
mended fluid to the correct level as
shown.
6. Add a small amount of the recommended
fluid though cylinder body holes
d
,
e
,
and
f
.
7. Install the trim piston assembly into the
trim cylinder, and then tighten the trim
cylinder end screw
5
to the specified
torque.
Recommended power trim and tilt
fluid:
ATF Dexron
II
Fluid quantity:
30 cm
3
(1.0 US oz, 1.1 Imp oz)
S60C7500
Recommended power trim and tilt
fluid:
ATF Dexron
II
S60C7525
Tilt cylinder and trim cylinder (F100B)
