7. Install the reservoir cap, and then tighten
it to the specified torque.

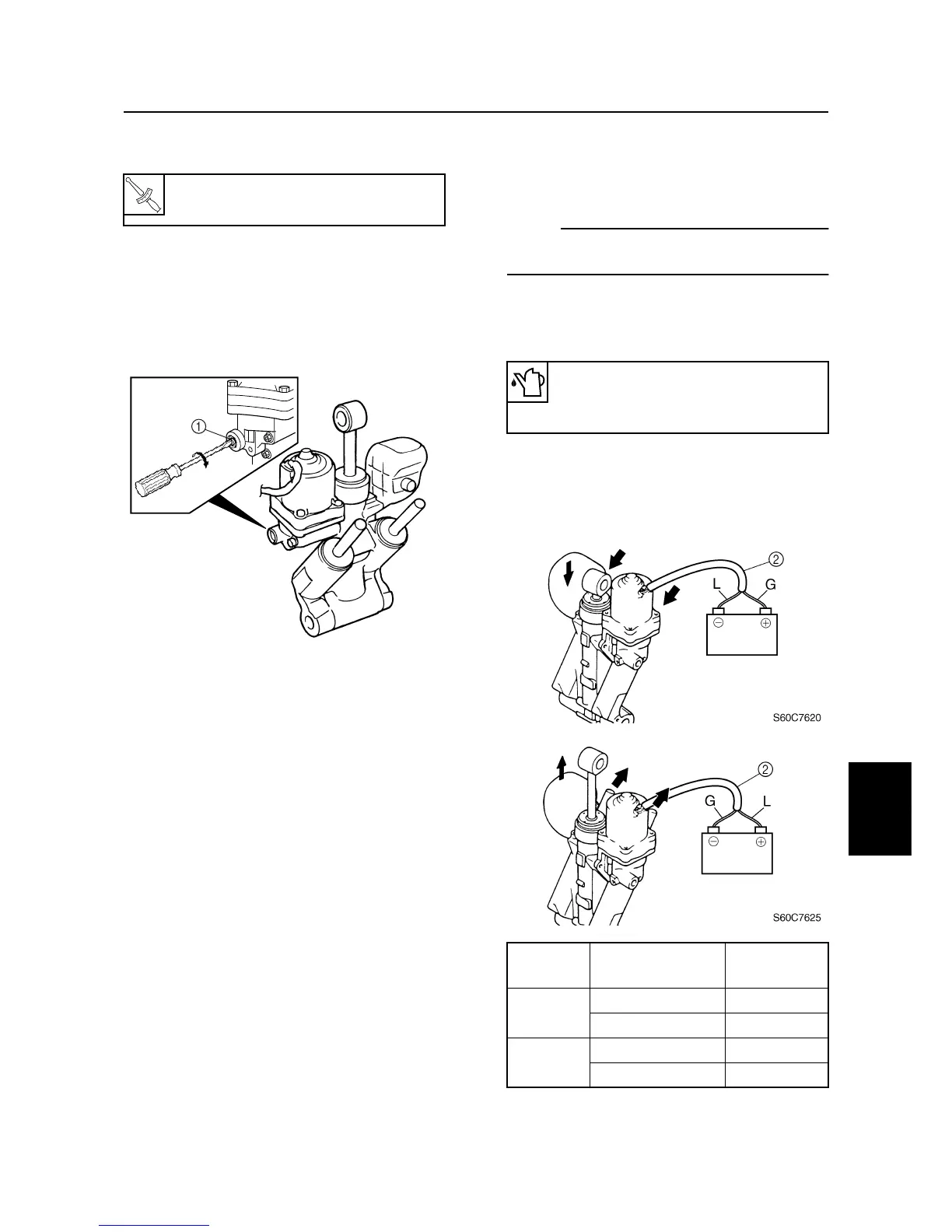

Bleeding the power trim and tilt
unit (F100B)
7
Not installed
1. Tighten the manual valve
1
by turning it
clockwise.
2. Place the power trim and tilt unit in an
upright position.
3. Check the fluid level in the reservoir.
NOTE:
The fluid level should be at the brim of the
filler hole.
4. If necessary, add sufficient fluid of the
recommended type to the correct level.
5. Install the reservoir cap.
6. Connect the PTT motor leads
2
to the
battery terminals.
T
R
.
.
Reservoir cap:
7 N·m (0.7 kgf·m, 5.1 ft·lb)
S60C7615
Recommended power trim and tilt
fluid:
ATF Dexron
II
Ram PTT motor lead
Battery
terminal
Up
Blue (L)
+
Green (G)
-
Down
Green (G)
+
Blue (L)
-
Power trim and tilt motor (F100B) / Bleeding the power trim and tilt unit (F100B)
