60C5D11
6-22
1
2
3
4
5
6
7
8
9

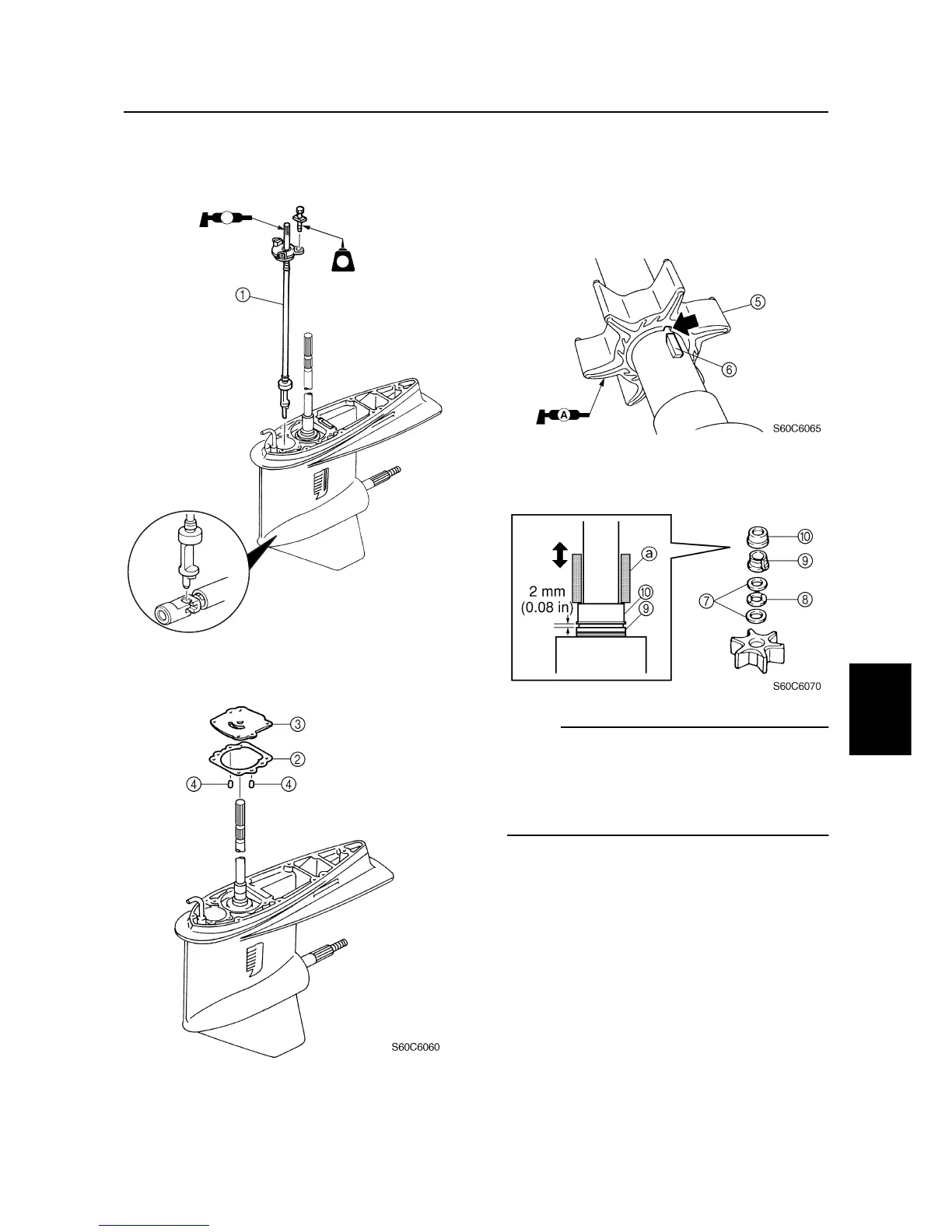

Installing the water pump and shift
rod
1. Install the shift rod assembly
1
.
2. Install the new gasket
2
, outer plate car-
tridge
3
, and dowel pins
4
.
3. Install the Woodruff key into the drive
shaft.
4. Align the groove on the impeller
5
with
the Woodruff key
6
, and then install it to
the drive shaft.
5. Install the washers
7
, wave washer
8
,
spacer
9
, and collar
0
to the drive shaft.
NOTE:
• The collar and spacer should fit together
firmly.
• While pulling the drive shaft up, install the
collar with some appropriate tool
a
that fits
over the drive shaft as shown.
S60C6055
LT
572
AA
Drive shaft and lower case (F100B)
