Yamaha F100B Service Manual

LOWR
Lower unit
6-21
60C5D11
NOTE:
Install the drive shaft by lifting it up slightly,
then aligning it with the pinion and the spline
of the drive shaft.
4. Tighten the housing bolt.

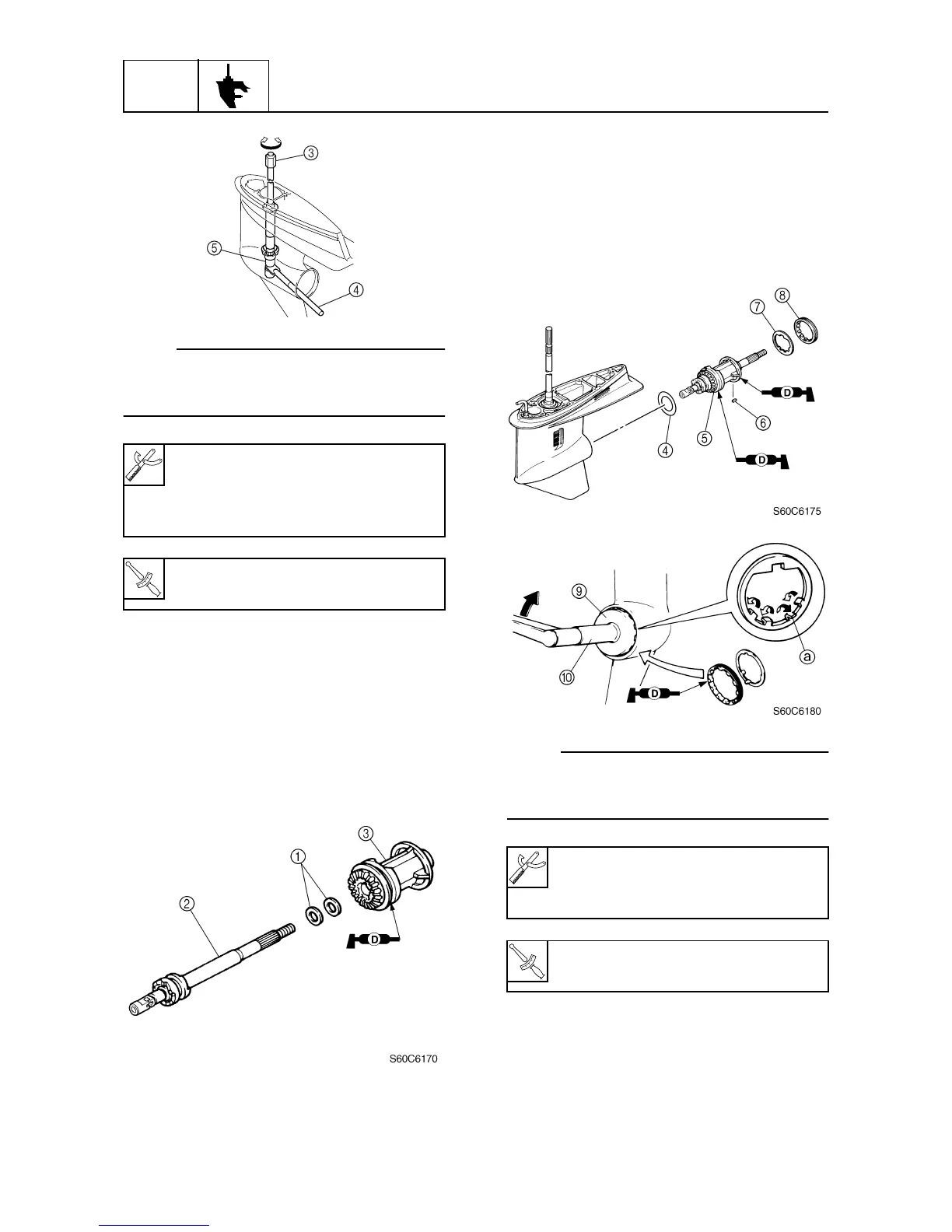

Installing the propeller shaft housing
1. Install the washers
1
and propeller shaft
assembly
2
into the propeller shaft
housing assembly
3
.
2. Apply grease to the new O-rings.
3. Install the original shim(s)
4
and propel-
ler shaft housing assembly
5
into the
lower case, and then install the straight
key
6
, claw washer
7
, and ring nut
8
.
4. Tighten the nut to the specified torque.
NOTE:
Secure the ring nut by bending one tab
a
into the slot in the ring nut and the other tabs
toward the propeller shaft housing assembly.
Drive shaft holder 5
3
:
490890-06519
Pinion nut holder
4
: 90890-06505
Socket adapter 2
5
: 90890-06507
T
R
.
.
Pinion nut:
93 N·m (9.3 kgf·m, 67 ft·lb)
S60C6270
Ring nut wrench 3
9
: 90890-06511
Ring nut wrench extension
0
:
90890-06513
T
R
.
.
Ring nut
8
:
103 N·m (10.3 kgf·m, 74 ft·lb)
