GEN
INFO
General information
1-13
60C5D11

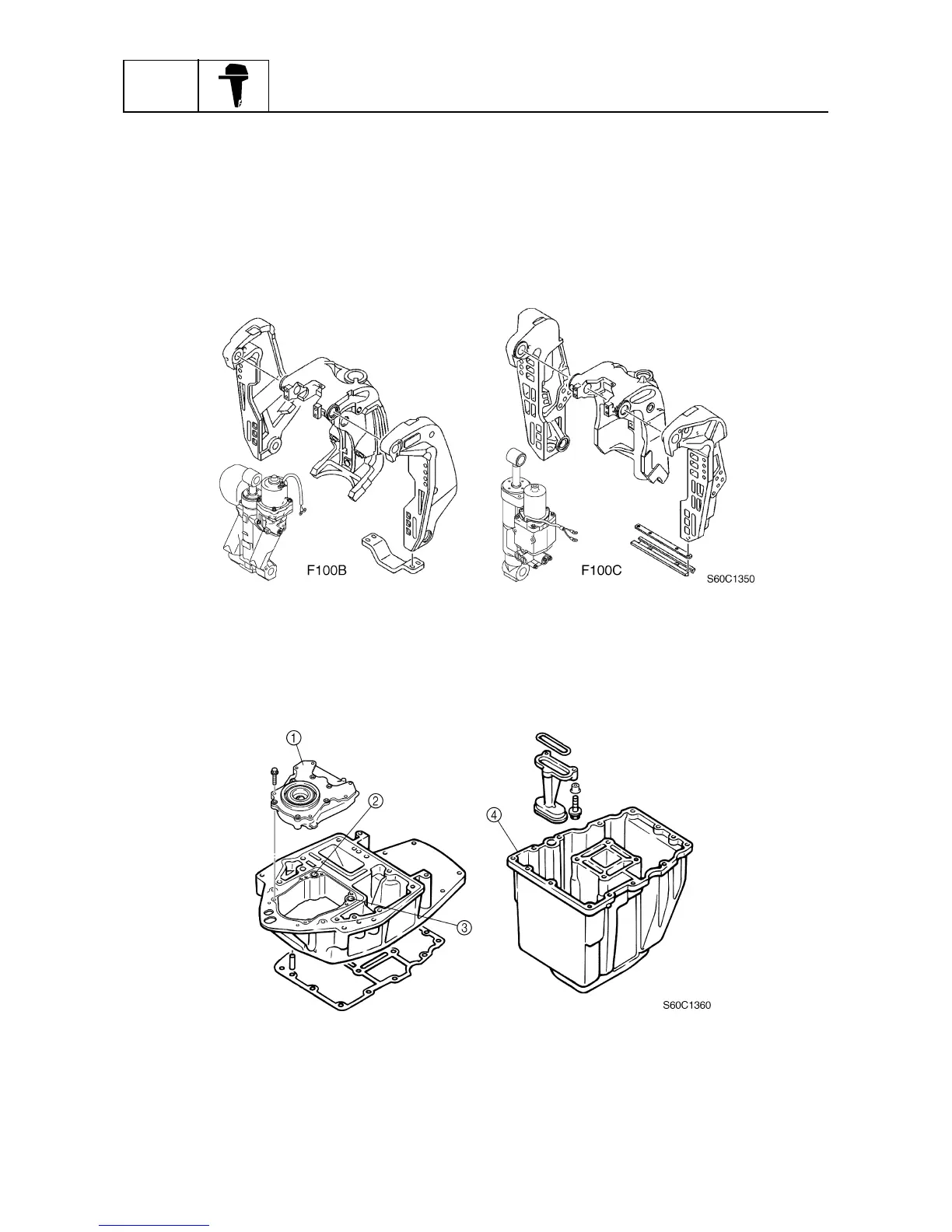

Bracket unit and the PTT unit
F100B uses the bracket unit of 2-stroke, V4 outboard motor and F100C uses that of F100A.
In addition, the PTT unit has been adopted from the F100A as well.
The F100B uses the one found on the proven 2-stroke, V4, and V6 outboard motors. This PTT unit
has been constructed to feature a single tilt cylinder and two trim cylinders.
The PTT unit of the F100C has been adopted from the proven F100A. This PTT unit consists of a
single cylinder for both tilt and trim functions, making the unit compact and lightweight.
Oil pump
The oil pump has been installed directly above the oil pan and to the exhaust guide.
In addition, the oil pump is operated directly by the drive shaft, therefore proper oil delivery can be
achieved.
1
Oil pump
2
OUT
3
IN
4
Oil pan
To Next Page
