Power unit
5-51
60C5D11
11. Install the new gasket and exhaust cover,
and then tighten the bolts to the specified
torques in two stages and in the
sequence shown.

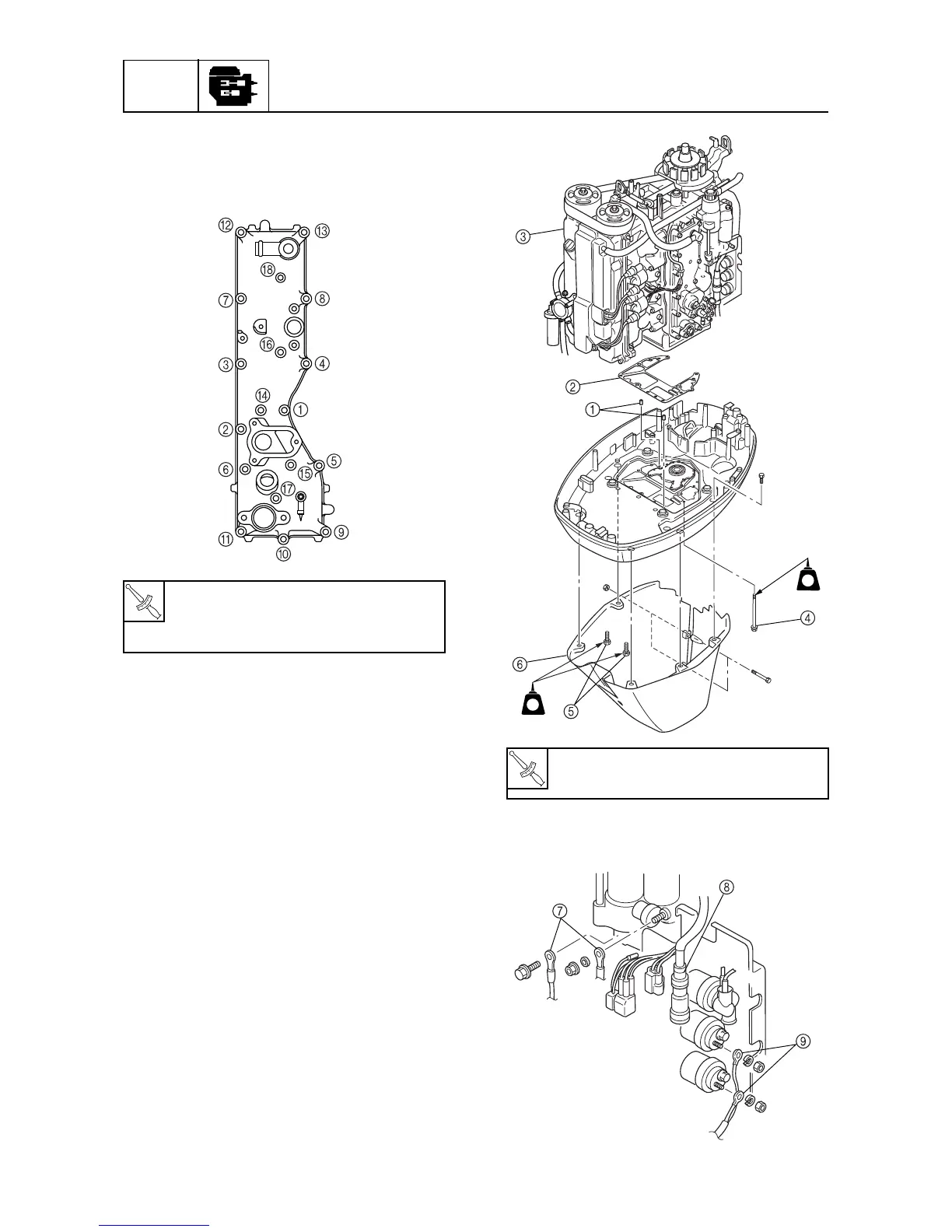

Installing the power unit
1. Install the dowel pins
1
and gasket
2
.
2. Install the power unit
3
by installing bolts
4
and
5
, then tightening them to the
specified torque.
3. Install the apron
6
.
4. Connect the battery leads
7
, wiring har-
ness
8
, and PTT motor leads
9
.
T
R
.
.
Exhaust cover bolt:
1st: 6 N·m (0.6 kgf·m, 4.3 ft·lb)
2nd: 12 N·m (1.2 kgf·m, 8.7 ft·lb)
S60C5B50
To Next Page
