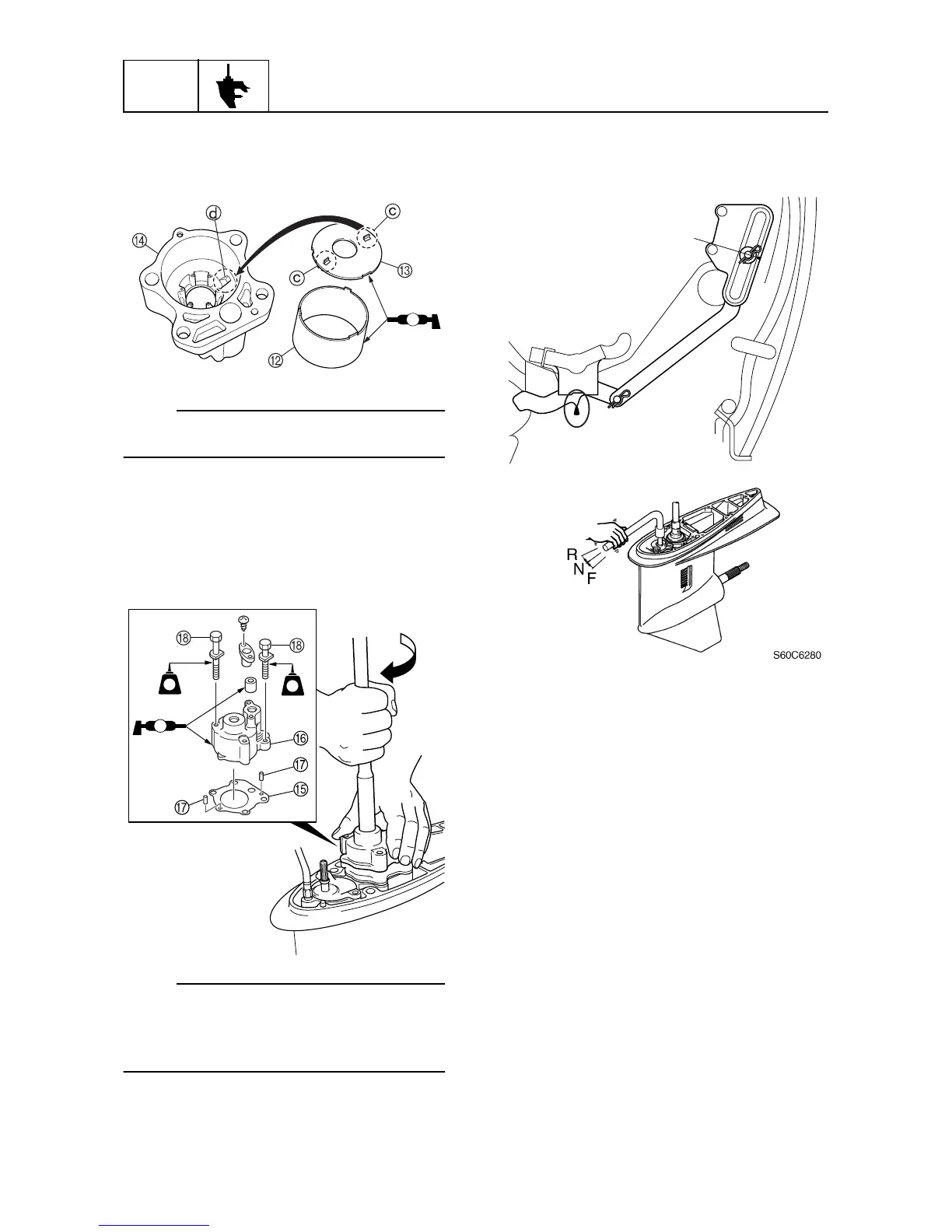

7. Install the insert cartridge
B
and inner
plate cartridge
C
into the pump housing
D
.
NOTE:
Align the insert cartridge projections
c
with
the holes
d
in the pump housing.
8. Install the new gasket
E
, pump housing
assembly
F
, and dowel pins
G
to the
lower case.
9. Install and tighten the bolts
H
.
NOTE:
When installing the pump housing, apply
grease to the inside of the housing, and then
turn the drive shaft clockwise while pushing
down the pump housing.
Installing the lower unit
1. Set the gearshift to the neutral position at
the power unit and lower unit.
2. Install the two dowel pins
1
to the lower
unit.
3. Install the lower unit to the upper case,
and then tighten the bolts to the specified
torque.
S60C6450
AA
S60C6455
A
LT
572
LT
572
S60C6275
N
