Yamaha F100B - Replacing the Valve Guides; Checking the Valve Seat

60C5D11
5-28
1
2
3
4
5
6
7
8
9

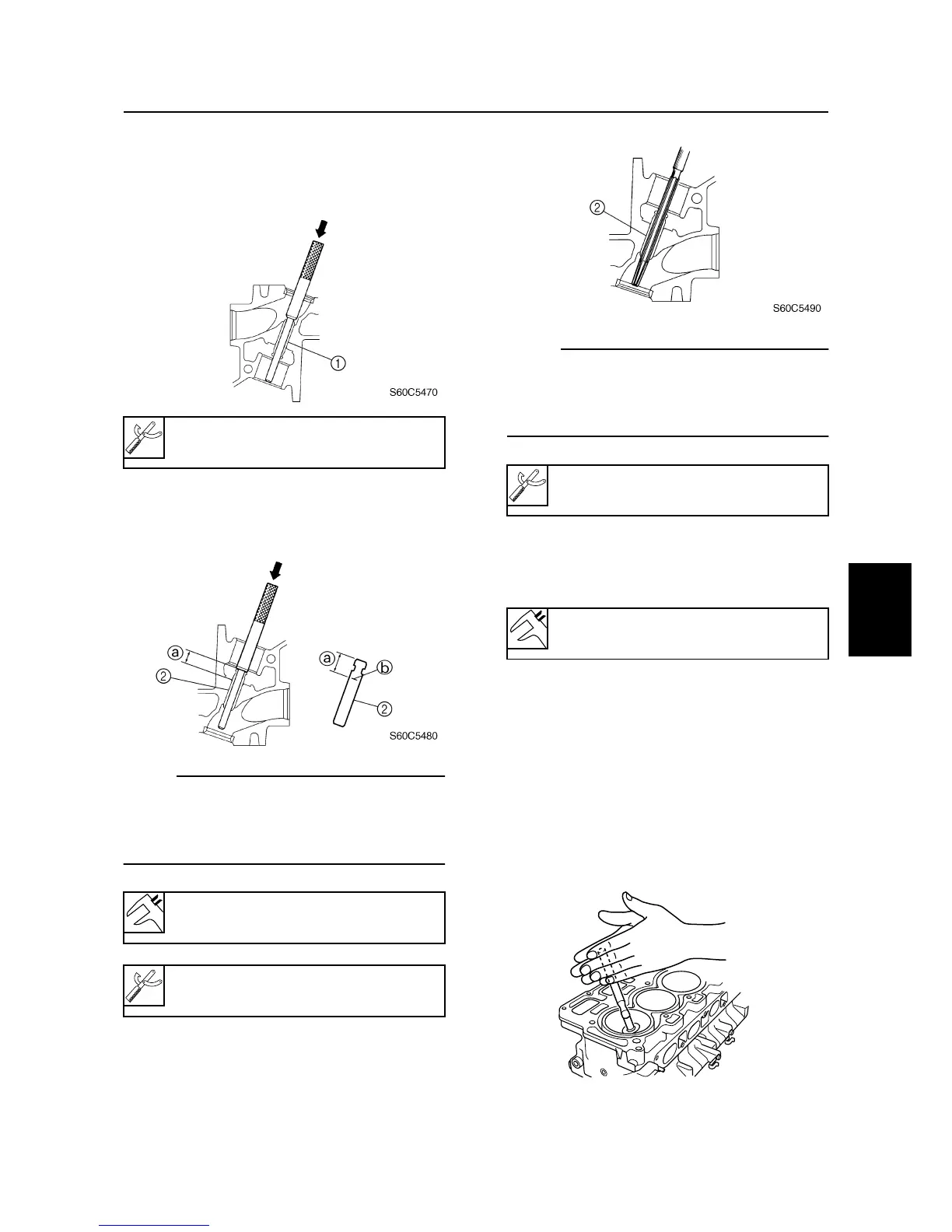

Replacing the valve guides
1. Remove the valve guide
1
by striking
the special service tool from the combus-
tion chamber side.
2. Install the new valve guide
2
by striking
the special tool from the camshaft side to
the specified position
a
.
NOTE:
• Before installing the valve guide, mark its
installation position
b
as shown.
• Apply engine oil to the surface of the new
valve guide.
3. Insert the special service tool into the
valve guide
2
, and then ream the valve
guide.
NOTE:
• Turn the valve guide reamer clockwise to
ream the valve guide.
• Do not turn the reamer counterclockwise
when removing the reamer.
4. Measure the valve guide inside diameter.
Replace the valve guide if out of specifi-
cation.
Checking the valve seat
1. Eliminate carbon deposits from the valve
with a scraper.
2. Apply a thin, even layer of Mechanic’s
blueing dye (Dykem) onto the valve seat.
3. Lap the valve slowly on the valve seat
with a valve lapper (commercially obtain-
able) as shown.
Valve guide remover/installer:
90890-04064
Valve guide position
a
:
11.5 mm (0.45 in)
Valve guide remover/installer:
90890-04064
Valve guide reamer: 90890-04066
Valve guide inside diameter:
6.01–6.02 mm (0.2367–0.2370 in)
S60C5500
Cylinder head
