ZXR10ZSRV2HardwareDescription
9.22RAC-PIU-04GE-SFP
Overview
RAC-PIU-04GE-SFPboardprovidesthefollowingfunctions:
lProvidesfourGEopticalinterfaceswhichsupport1000BASE-X.
lSupportshotswapping.
lSupportsboardinformationqueryandtemperaturemonitoring.
Panel
ForthepaneloftheRAC-PIU-04GE-SFPboard,seeFigure9-22.

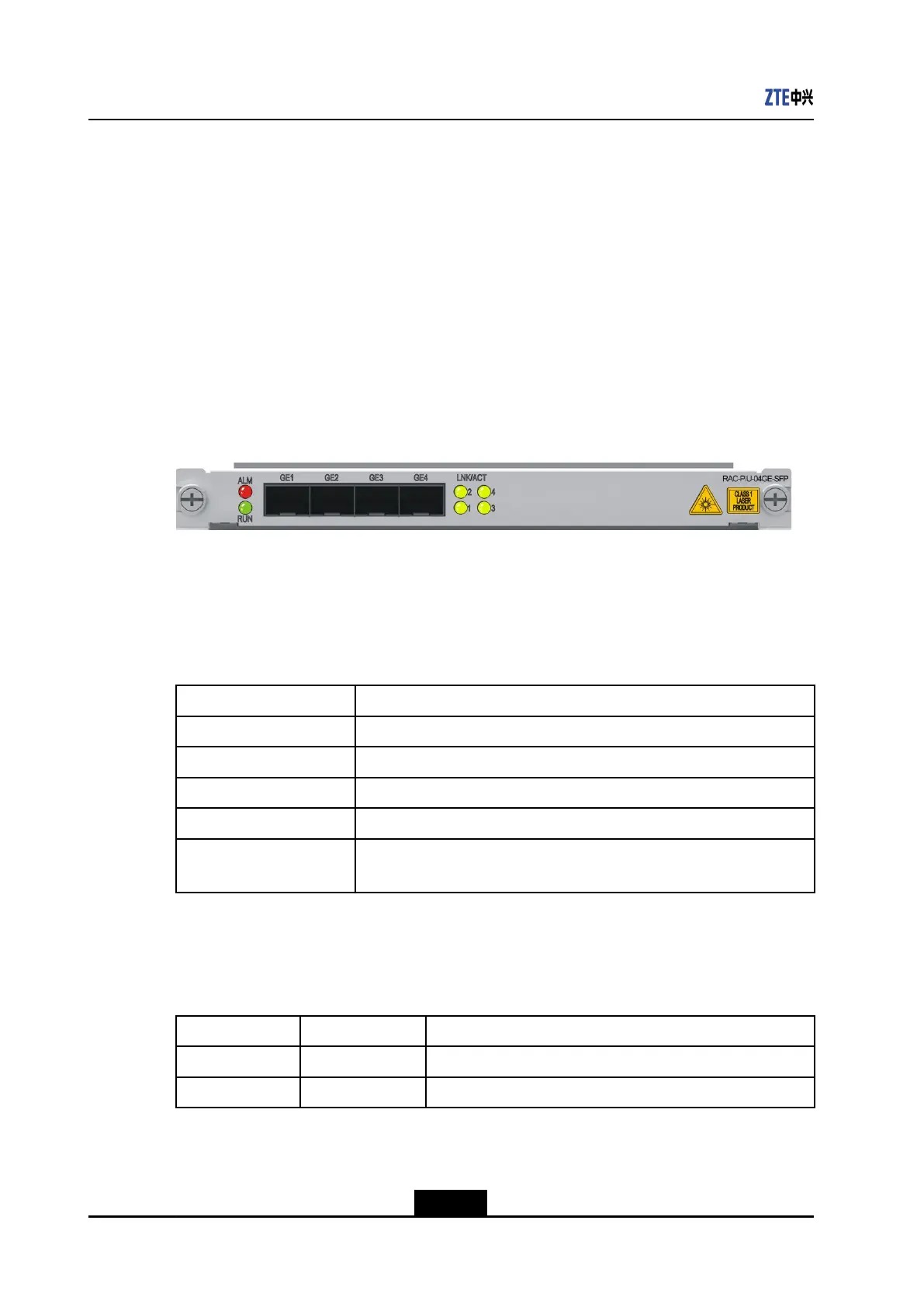

Figure9-22FrontPaneloftheRAC-PIU-04GE-SFPBoard
InterfaceProperties
TheRAC-PIU-04GE-SFPboardusesSFPopticalmodules.Foradescriptionofthe
interfaceproperties,refertoT able9-64.
Table9-64InterfacePropertiesoftheRAC-PIU-04GE-SFPBoard
PropertyDescription
ConnectortypeLC-typeSFPopticalmoduleinterface
OperationalmodeFullduplex
AppliedstandardIEEE802.3zGigabitEthernetstandard
SupportedlinkprotocolEthernetFrame
Supportednetwork
protocol
Ethernet
Indicators
ForadescriptionoftheindicatorsoftheRAC-PIU-04GE-SFPboard,refertoT able9-65.
Table9-65DescriptionoftheIndicatorsonthePaneloftheRAC-PIU-04GE-SFPBoard
IndicatorColorDescription
RUNGreenTheindicatorislitwhentheboardisoperatingproperly.
ALMRedTheindicatorislitiftheboardproducesanalarm.
9-34
SJ-20150204153047-004|2015-03-30(R1.0)ZTEProprietaryandCondential

Zte ZXR10 3800-8 Specifications

General

MAC Address Table Size	16K
VLAN	4K
MAC Address Table	16K
Packet Buffer	4 MB
Storage Temperature	-40°C to 70°C
Dimensions	440mm x 220mm x 44mm
Power Supply	AC: 100V~240V, 50/60Hz
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% RH
Ports	8x 10/100/1000Base-T, 4x SFP
Power Consumption	Max 30W
