MP-1xx SIP User’s Manual 5. Configuring the MP-1xx
Version 4.4 133 March 2005

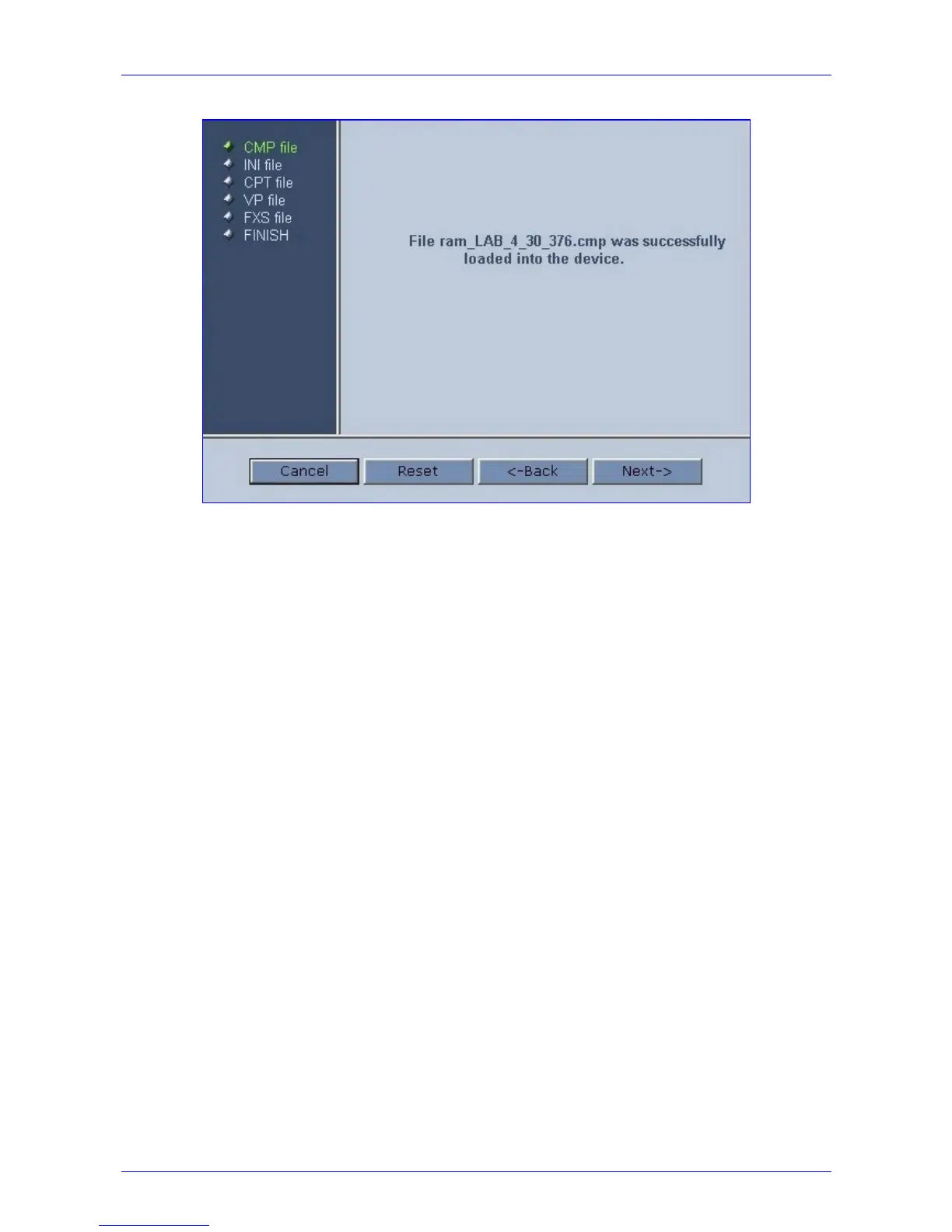

Figure 5-44: cmp File Successfully Loaded into the MP-1xx Notification
5. Note that the four action buttons (Cancel, Reset, Back, and Next) are now activated
(following cmp file loading).
You can now choose to either:
Click Reset; the MP-1xx resets, utilizing the new cmp you loaded and utilizing the
current configuration files.
Click Cancel; the MP-1xx resets utilizing the cmp, ini and all other configuration files that
were previously stored in flash memory. Note that these are NOT the files you loaded in
the previous Wizard steps.
Click Back; the ‘Load a cmp File’ screen is reverted to; refer to Figure 5-43.
Click Next; the ‘Load an ini File’ screen opens; refer to Figure 5-45. Loading a new ini
file or any other auxiliary file listed in the Wizard is optional.
Note that as you progress, the file type list on the left indicates which file type loading is in
process by illuminating green (until ‘FINISH’).
