MP-1xx SIP User’s Manual 8. Gateway Capabilities Description
Version 4.4 167 March 2005
8.9.4.3 MP-108/FXS Configuration (using the Embedded Web Server)

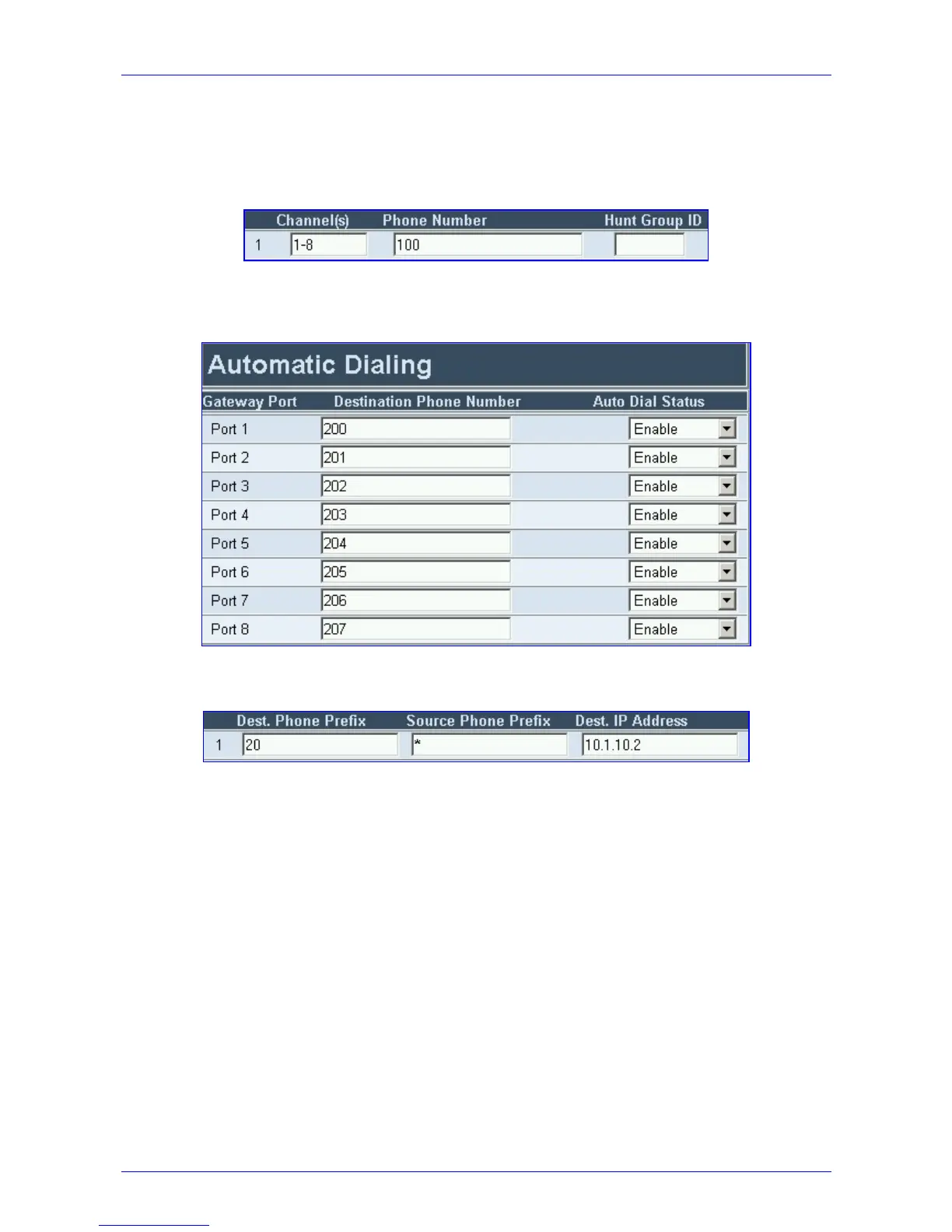

To configure the MP-108/FXS, take these 3 steps:
1. In the ‘Endpoint Phone Numbers’ screen, assign the phone numbers 100 to 107 for the
gateway’s endpoints.
2. In the ‘Automatic Dialing’ screen, enter the phone numbers of the MP-108/FXO gateway in
the ‘Destination Phone Number’ fields. When a phone connected to port #1 goes offhook,
the FXS gateway automatically dials the number ‘200’.
3. In the ‘Tel To IP Routing’ screen, enter 20 in the ‘Destination Phone Prefix’ field, and the IP
address of the MP-108/FXO gateway (10.1.10.2) in the field ‘IP Address’.
