B.7 BootP/TFTP Application User Interface

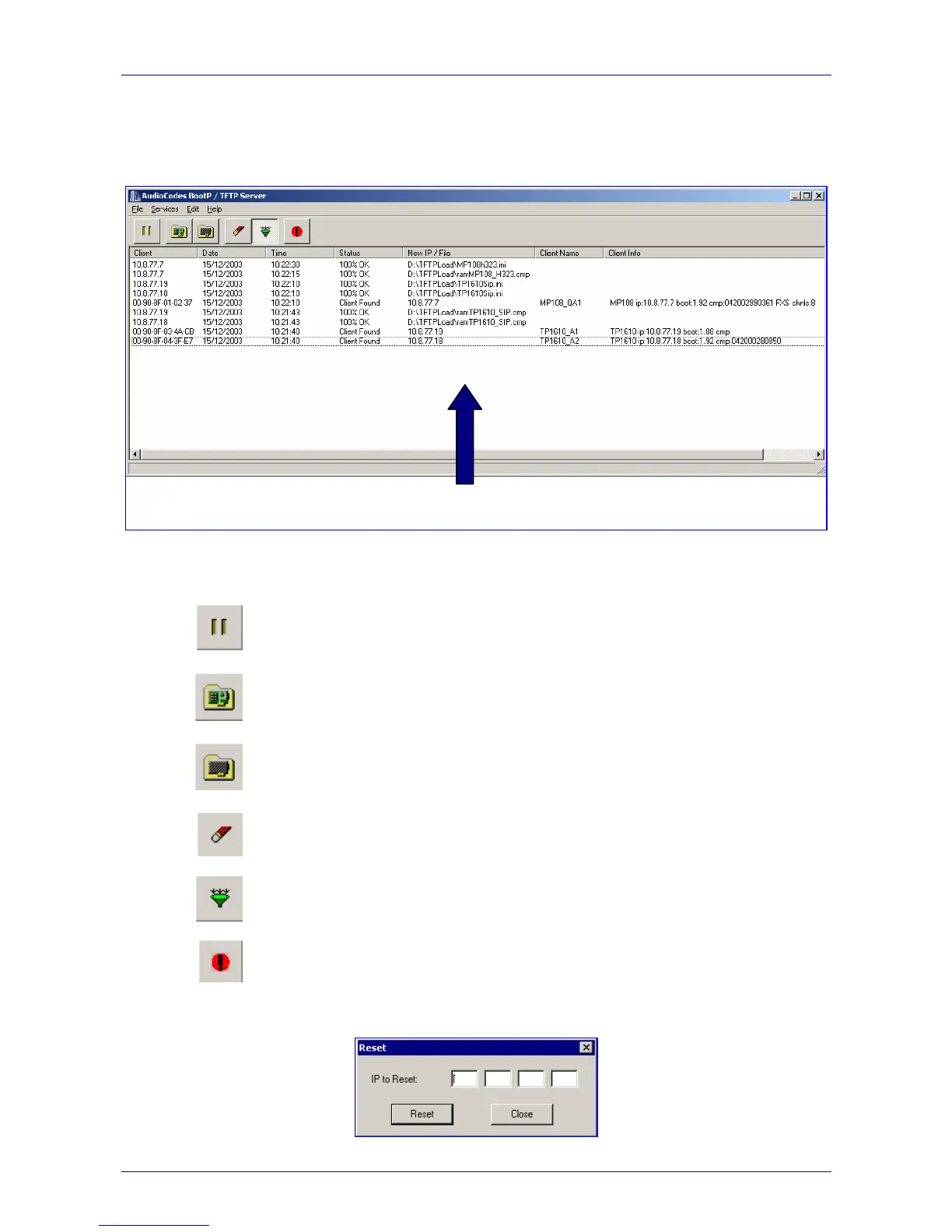

Figure B-1 shows the main application screen for the BootP/TFTP utility.
Figure B-1: Main Screen
B.8 Function Buttons on the Main Screen
Pause: Click this button to pause the BootP Tool so that no replies are sent to BootP
requests. Click the button again to restart the BootP Tool so that it responds to all
BootP requests. The Pause button provides a depressed graphic when the feature is
active.
Edit Clients: Click this button to open a new window that enables you to enter
configuration information for each supported VoIP gateway. Details on the Clients
window are provided in Section B.11 on page 203.
Edit Templates: Click this button to open a new window that enables you to create or
edit standard templates. These templates can be used when configuring new clients
that share most of the same settings. Details on the Templates window are provided
in Section B.12 on page 207.
Clear Log: Click this button to clear all entries from the Log Window portion of the
main application screen. Details on the log window are provided in Section B.9 on
page 200.
Filter Clients: Click this button to prevent the BootP Tool from logging BootP requests
received from disabled clients or from clients which do not have entries in the Clients
table.
Reset: Click this button to open a new window where you enter an IP address
requests for a gateway that you want to reset. Refer to Figure B-2 below.
Figure B-2: Reset Screen
