3. Select the gateway’s ports that are connected to your PBX, and specify the phone number of
each extension.
4. In the Invalid phone number field, enter a number that generates a “fast busy” tone when
dialed. Usually, any incorrect phone number should cause a “fast busy” tone.
5. Press Next.
Note: The CPTWizard communicates with the MP-10x/FXO gateway via TPNCP
(TrunkPack Network Control Protocol). If this protocol has been disabled in
the gateway configuration, the CPTWizard doesn’t display the next screen
and an error is reported.
F.2.4 Recording Screen – Automatic Mode
After the connection to the MP-1xx/FXO gateway is established, the recording screen is
displayed.

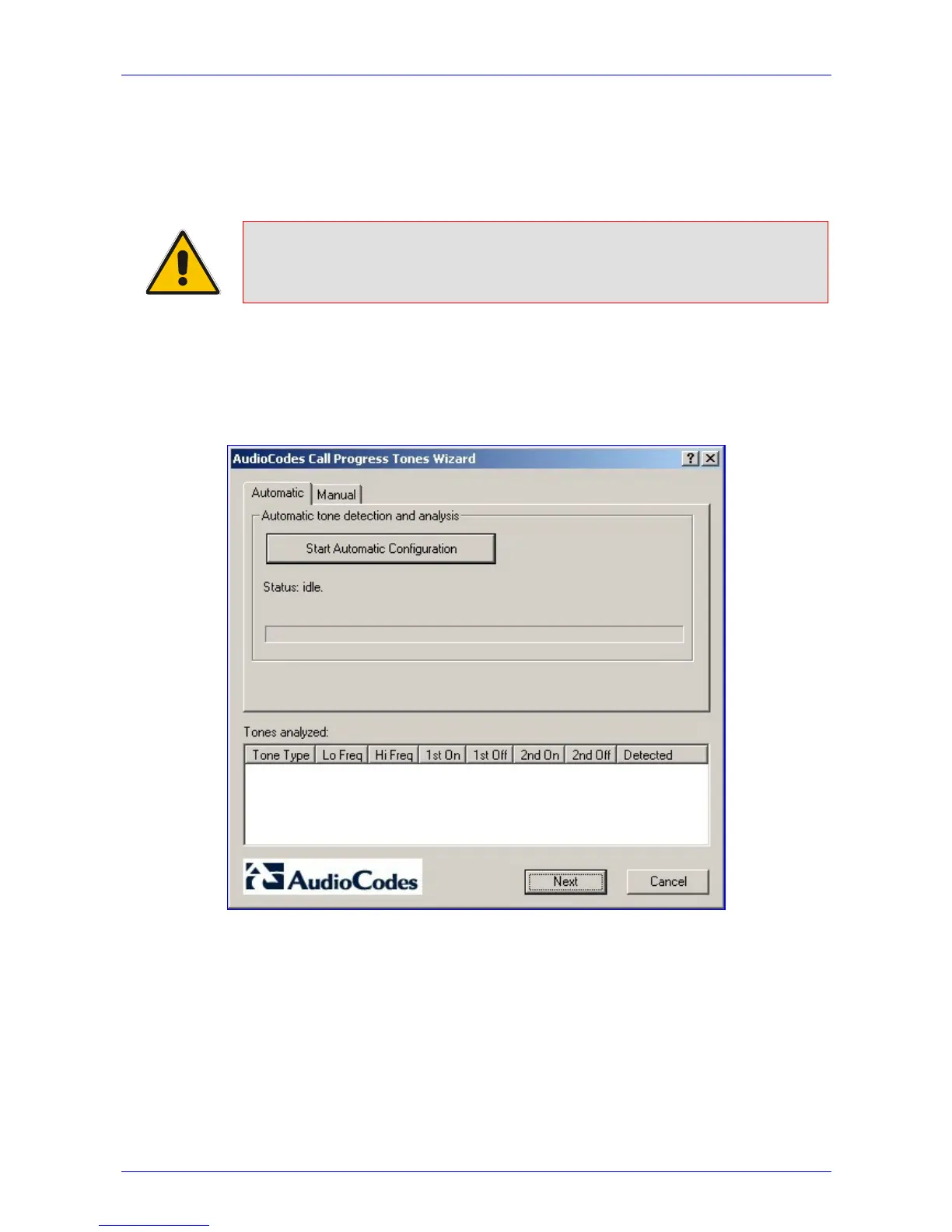

Figure F-7: Recording Screen –Automatic Mode
To start recording in automatic mode:
Press the Start Automatic Configuration button; the wizard starts the following Call Progress
Tones detection sequence (the operation takes approximately 60 seconds to complete):
1. Sets port 1 offhook, listens to the dial tone
2. Sets port 1 and port 2 offhook, dials the number of port 2, listens to the busy tone
3. Sets port 1 offhook, dials the number of port 2, listens to the Ringback tone
4. Sets port 1 offhook, dials an invalid number, listens to the reorder tone
