MP-1xx SIP
MP-1xx SIP User’s Manual 140 Document #: LTRT-65404
5.13 Resetting the MP-1xx
The Reset screen enables you to remotely reset the gateway. Before reset you can choose to
save the gateway configuration to flash memory.
To reset the MP-1xx, take these 3 steps:
1. Click the Reset button on the main menu bar; the Reset screen is displayed.

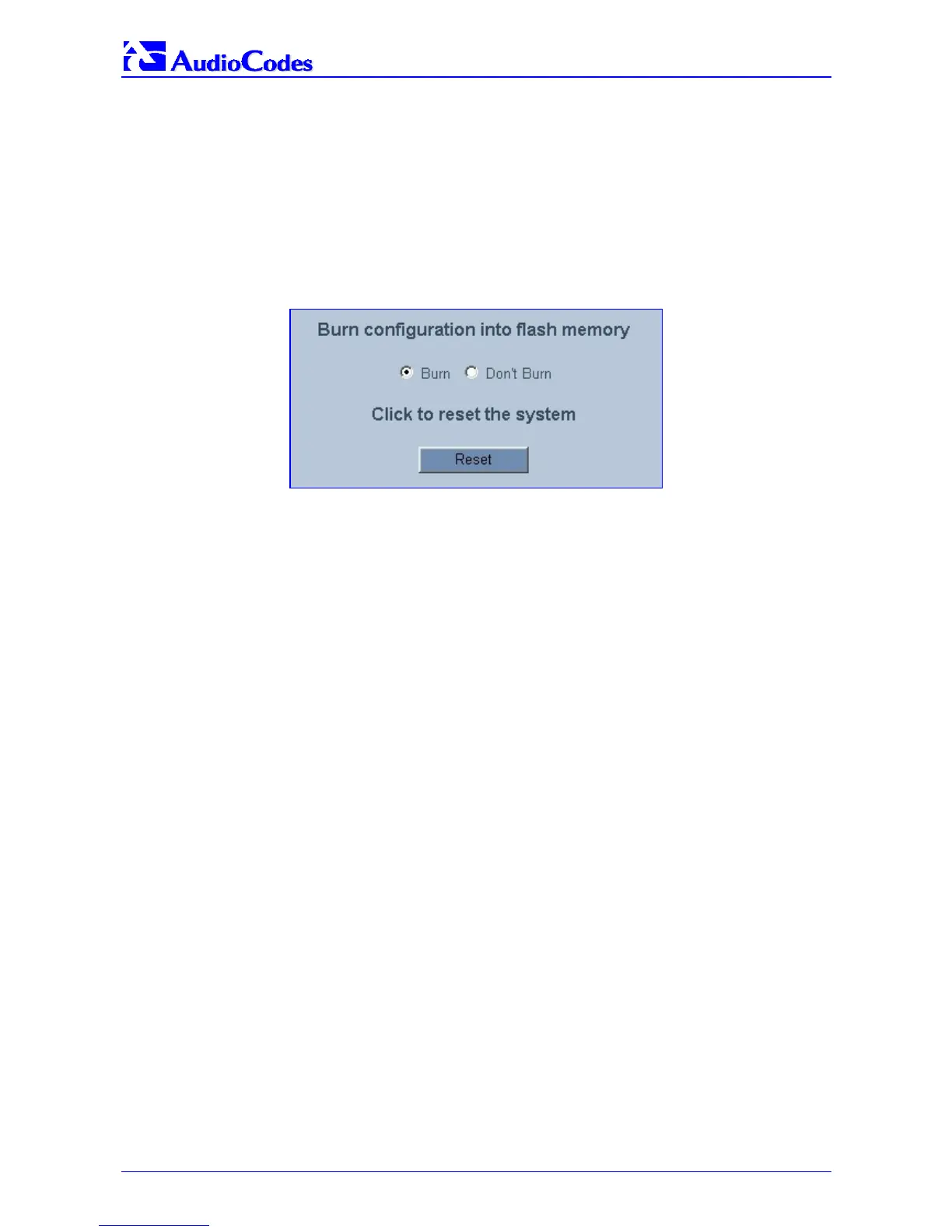

Figure
5-51: Reset Screen
2. Select one of the following options:
Burn - (default) the current configuration is burned to flash prior to reset.
Don’t Burn - resets the MP-1xx without burning the current configuration to flash
(discards all modifications to the configuration).
3. Click the Reset button. If the Burn option is selected, all configuration changes are saved to
flash memory. If the Don’t Burn option is selected, all configuration changes are discarded.
The MP-1xx is shut down and re-activated. A message about the waiting period is displayed.
The screen is refreshed.
