Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Chapter 4 Installing a Cisco Nexus 7010 Chassis
Grounding the Cisco Nexus 7010 Chassis

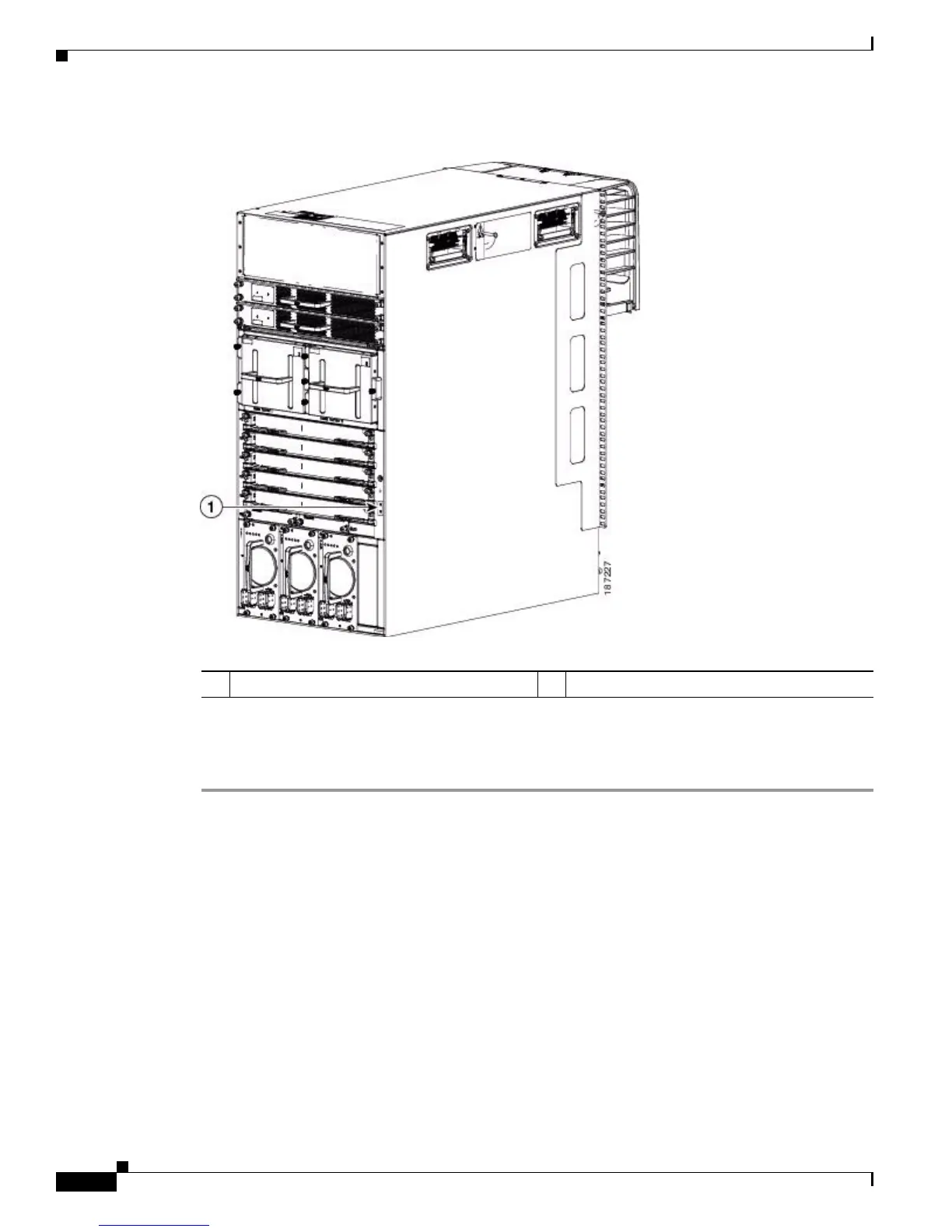

Figure 4-7 Grounding Pad on the Rear of the Cisco Nexus 7010 Chassis
Step 5
Prepare the other end of the grounding wire and connect it to an appropriate grounding point in your site
to ensure an adequate earth ground for the switch. If the rack is grounded, connect the grounding wire
as explained in the documentation provided by the vendor for the rack.
Connecting Your ESD Wrist Strap to the Chassis
After you connect the chassis to the data center earth ground, you can ground your ESD wrist strap by
plugging it into any one of three ESD ports shown in Figure 4-8 (front of the chassis) or Figure 4-9 (rear
of the chassis).
1 Grounding pad

Cisco Nexus 7000 Specifications

General

Chassis Type	Modular
Product Type	Switch
Power Supply	AC or DC
Cooling	Redundant, hot-swappable fan trays
Management	CLI, SNMP
Form Factor	Modular chassis
Interfaces/Ports	Varies by module
Product Series	Nexus 7000
Port Density	Varies by module
Redundancy	Power supply, fan, supervisor engine
Management Interfaces	Console, Ethernet
Security Features	ACLs, port security
Virtualization Support	VRF
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 95% non-condensing
