Chapter 3 Installing a Cisco Nexus 7009 Chassis
Installing the Chassis

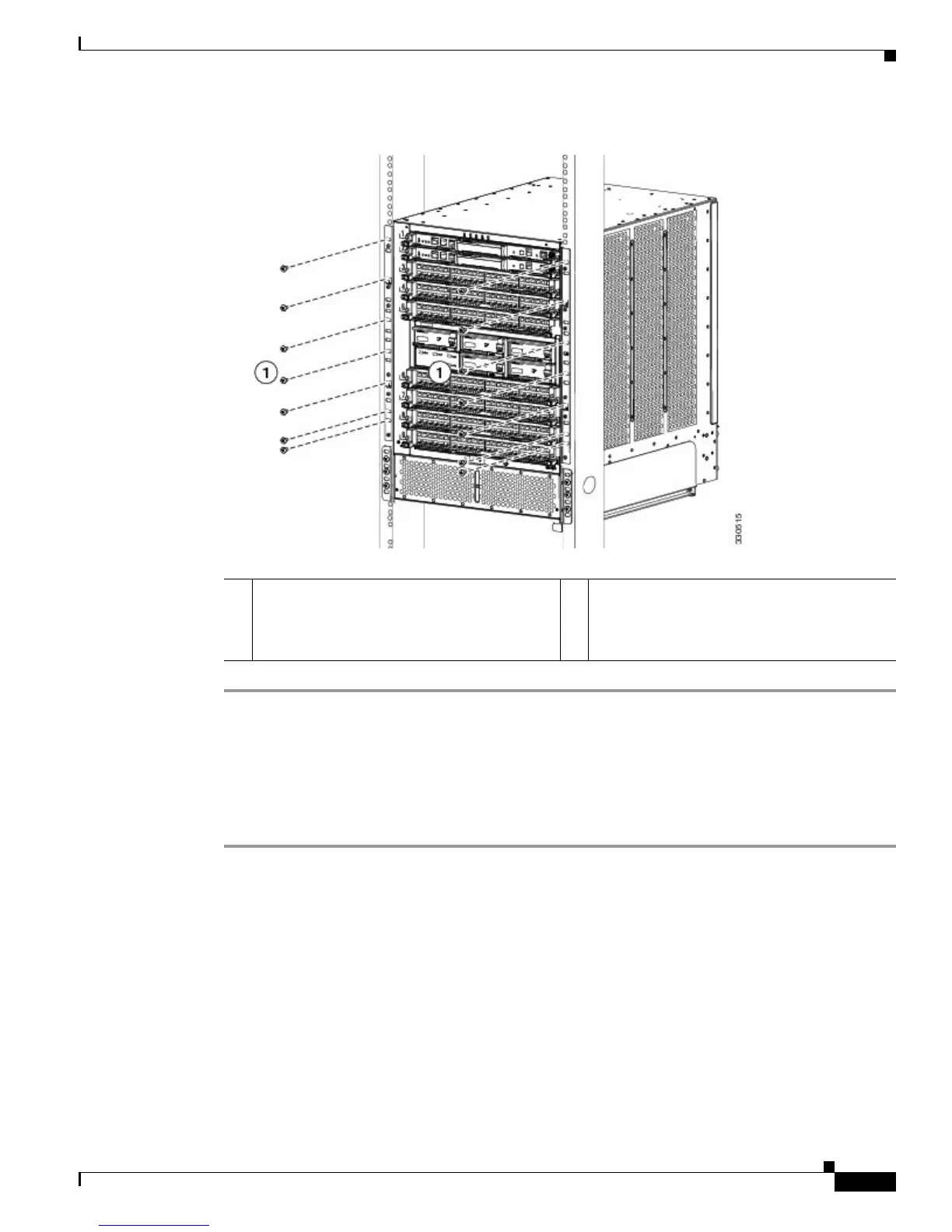

Figure 3-6 Attaching the Front of the Cisco Nexus 7009 Chassis to the Rack
Mounting the Chassis by its Center Brackets
To install a Cisco Nexus 7009 chassis by its optional center bracket to a rack or cabinet, follow these
steps:
Step 1 Follow these steps to replace the front-mount bracket on the chassis with center-mount brackets:
a. Remove the two front-mount brackets from the chassis by unscrewing the five screws that hold each
bracket to the front sides of the chassis (see Figure 3-7).
1 Seven to eight M6 x 19 mm or 10-24 x 3/4 in.
Phillips screws used to attach each side
bracket to a front mounting rail (use a total of
eight screws)
2

Cisco Nexus 7000 Specifications

General

Chassis Type	Modular
Product Type	Switch
Power Supply	AC or DC
Cooling	Redundant, hot-swappable fan trays
Management	CLI, SNMP
Form Factor	Modular chassis
Interfaces/Ports	Varies by module
Product Series	Nexus 7000
Port Density	Varies by module
Redundancy	Power supply, fan, supervisor engine
Management Interfaces	Console, Ethernet
Security Features	ACLs, port security
Virtualization Support	VRF
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 95% non-condensing
