Chapter 1 Overview
Cisco Nexus 7000 Series

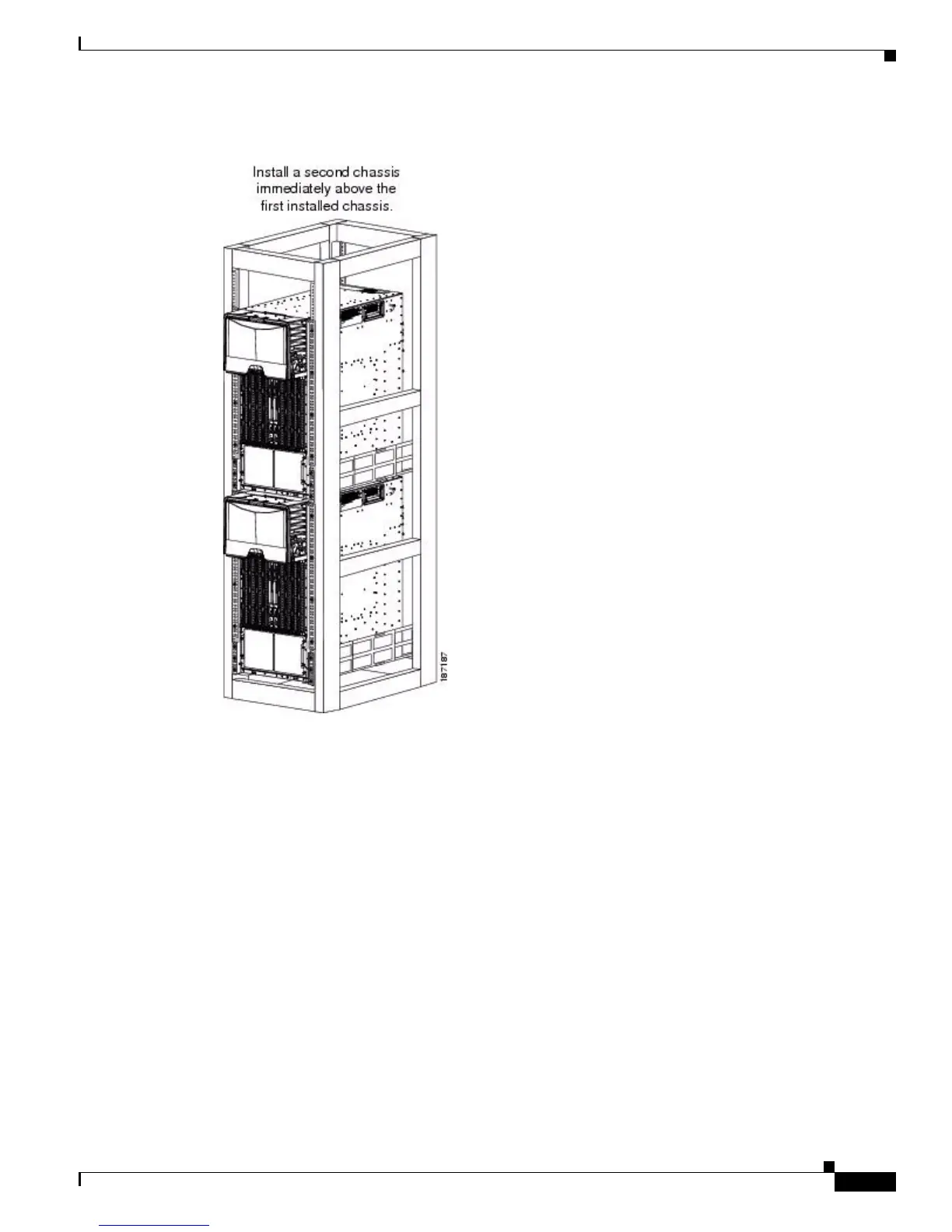

Figure 1-8 Two Cisco Nexus 7010 Chassis Installed in a Four-Post Rack
Cisco Nexus 7018 System
The Cisco Nexus 7018 chassis has 18 slots that allow for two supervisor modules and up to 16 I/O
modules. The chassis also holds up to five fabric modules, two fan trays, up to four power supplies, and
a cable management system. The chassis also has a mounting bracket and four positioning handles (two
on each side) that you use to install the chassis after you position it on a rack. Optionally, you can include
a front door to protect the I/O cable connections.
Figure 1-9 identifies the standard features on the front and sides of the Cisco Nexus 7018 chassis,
Figure 1-10 identifies the components of the cable management system, Figure 1-11 identifies the
optional feature on the front side of the chassis, and Figure 1-12 identifies the standard features on the
rear of the chassis.

Cisco Nexus 7000 Specifications

General

Chassis Type	Modular
Product Type	Switch
Power Supply	AC or DC
Cooling	Redundant, hot-swappable fan trays
Management	CLI, SNMP
Form Factor	Modular chassis
Interfaces/Ports	Varies by module
Product Series	Nexus 7000
Port Density	Varies by module
Redundancy	Power supply, fan, supervisor engine
Management Interfaces	Console, Ethernet
Security Features	ACLs, port security
Virtualization Support	VRF
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 95% non-condensing
