190 © 2001- 2008 D-Link Corporation. All Rights Reserved.
D-Link Unified Access System User Manual

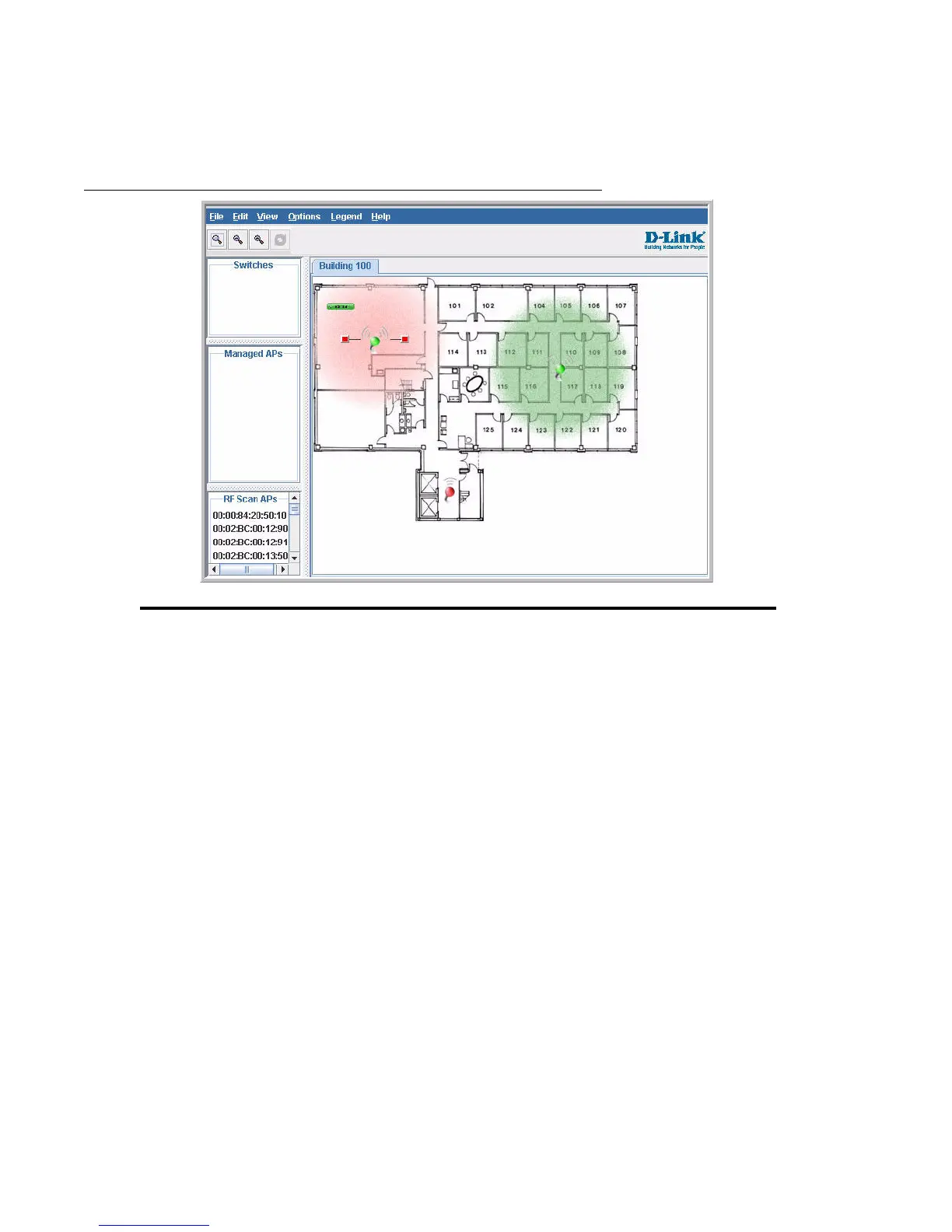

Figure 93 shows an example of a floor plan with a D-Link Unified Switch that manages two
APs. The figure also shows two switches and a rogue AP.
Figure 93. Sample WLAN Visualization
Importing and Configuring a Background Image
By default, the WLAN Visualization graph does not have a background image. You can
upload one or more images, such as your office floor plan, to provide a site context and site
related information.
Images that you upload should be in one of the following two file formats:
• GIF (Graphics Interchange Format)
• JPG (Joint Photographic Experts Group)
Additionally, we recommend that you do not use color images since the WLAN components
might not show up as well.
To load an image onto the switch to use as a background for the WLAN Visualization graph,
use the following procedures:
1. Click WLAN Visualization > Download Image.
2. Click Browse to navigate to the file location.
