198 © 2001- 2008 D-Link Corporation. All Rights Reserved.
D-Link Unified Access System User Manual
Legend Menu
The items in the Legend menu contain information about the icons and colors that appear on
the graph.
The Images menu item shows the icons that represent the WLAN components on the graph.

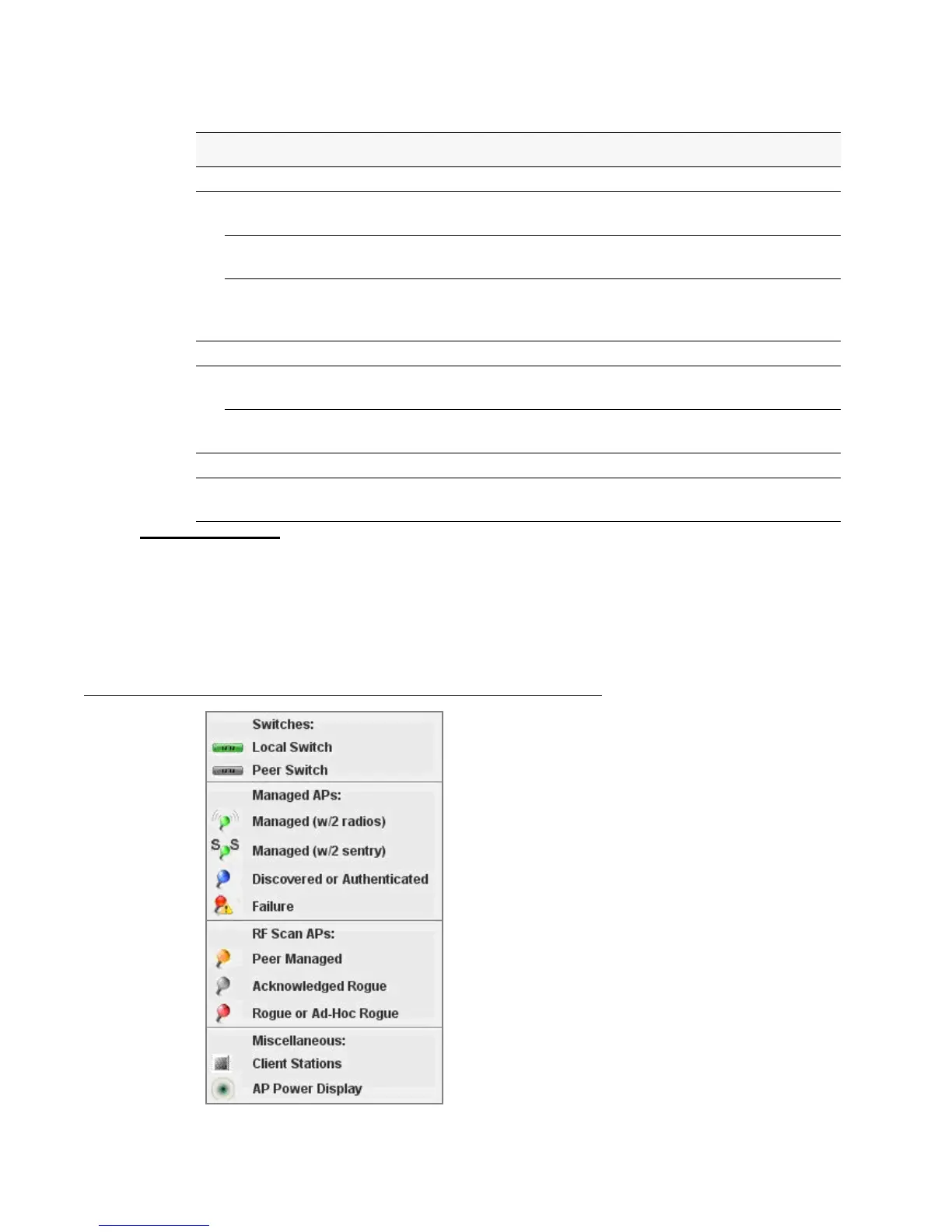

Figure 98. Legend
Options
Show Managed APs Controls whether to display D-Link Access Point on the graph.
Clearing the check box hides but does not un-graph the objects.
Show RF Scan APs Controls whether to display the APs detected through the RF scan.
Clearing the check box hides but does not un-graph the objects.
Show Managed AP
Clients
Controls whether to display wireless clients associated with man-
aged APs. Clearing the check box hides but does not un-graph the
objects.
Legend
Images Shows the icons associated with each WLAN component on the
graph.
Channel Color Maps the color of the power transmission image to the channel that
the radio is using for transmission.
Help
Table of Contents Opens a new HTML window to display the table of contents for the
WLAN online Help.
Table 74. WLAN Visualization Menu Bar Options
Menu Item Description
