D-Link Unified Access System User Manual

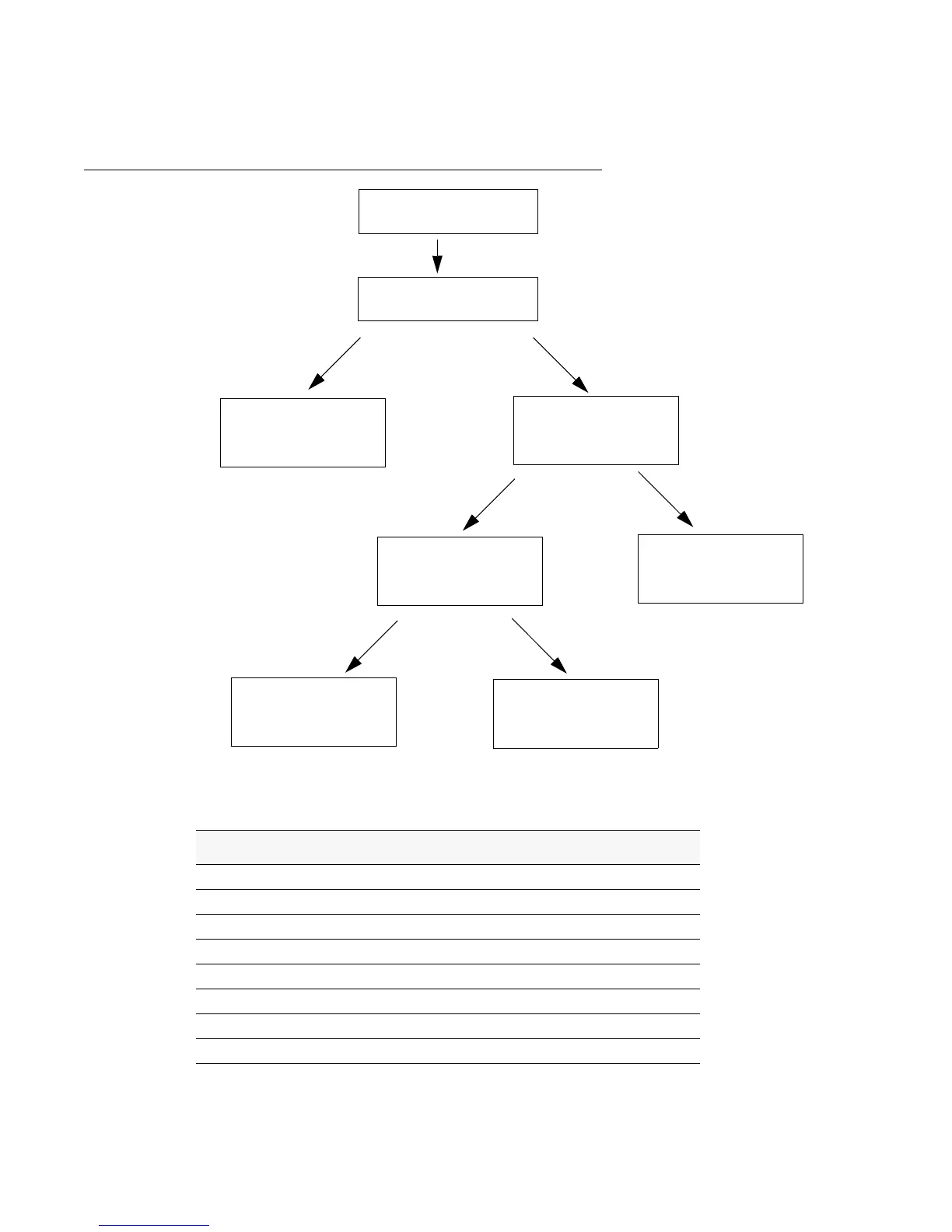

Figure 104 outlines the way in which tags are retrieved and traffic prioritized on a network.

Figure 104. Traffic Prioritization

Table 84 outlines the VLAN priority and DSCP values.

Table 84. VLAN Priority Tags

VLAN Priority Priority DSCP Value

0 Best Effort

1 Background 16

2 Background

3 Best Effort 24

4Video32

5Video40

6 Voice 48

7 Voice 56

START

Is VLAN tag?

YES

Take Priority from

DSCP

Is VLAN priority tag

(VLAN id = 0)

Take priority from tag

Is priority tag = 0

Take priority from tag

Take Priority from

DSCP

YES

Default Chapter3
