Connecting the Switch 49
3 Installing the Hardware
Now tighten the two screws at adjacent ends of the module into the available screw holes on
the Switch. The upgraded Switch is now ready for use.

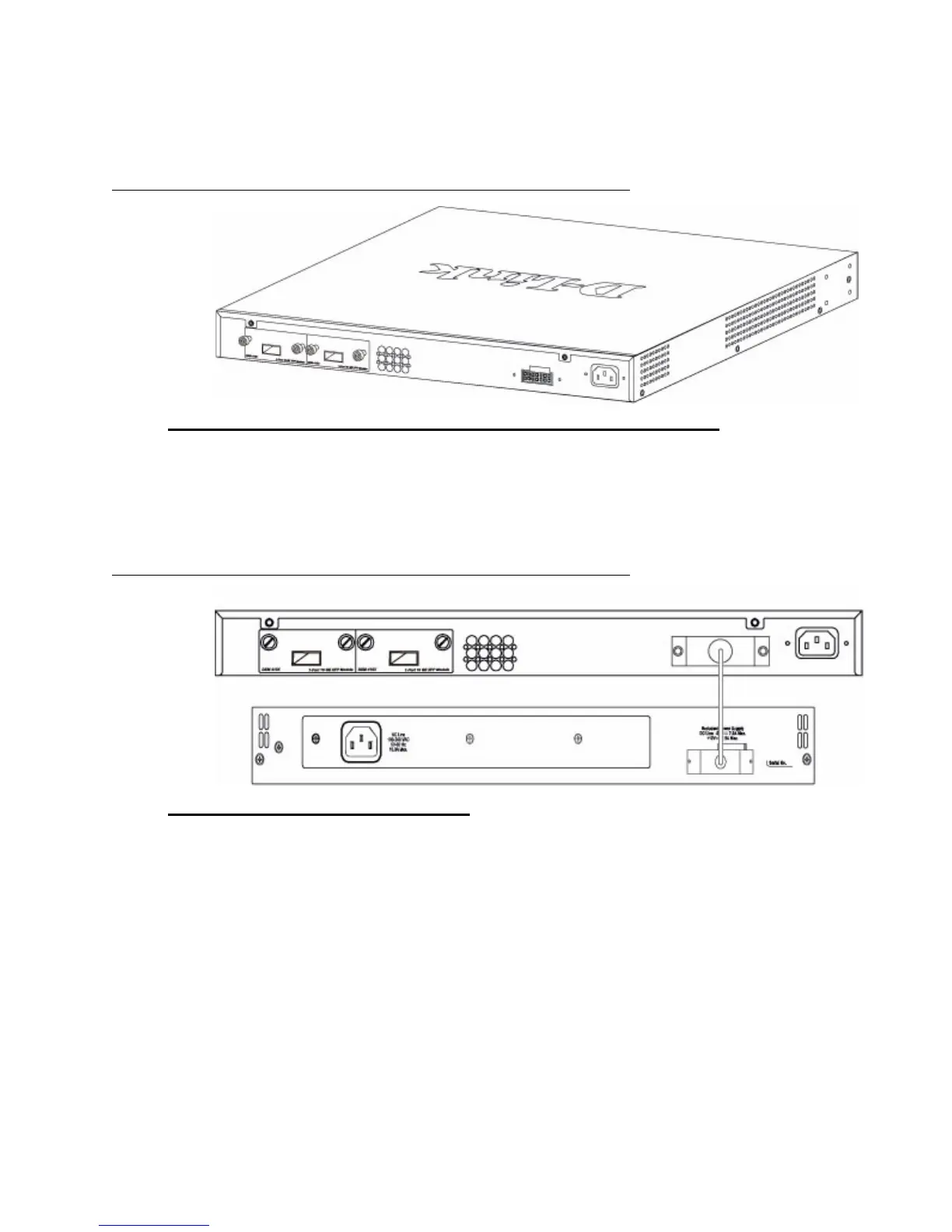

Figure 26. DWS-3026 with optional DEM-410X module installed
Connecting to the External Redundant Power System
The Switch supports an external redundant power system (RPS). The diagrams below
illustrate a proper RPS power connection to the Switch. Please consult the documentation for
information on power cabling and connectors and setup procedure.
Figure 27. RPS Connector
Connecting the Switch
This section describes how to connect the following nodes:
• Switch to the network
• AP directly to the Switch
• AP to the Switch through the L2/L3 network
• Switch through the 10GB uplink to the network core
NOTE: All 24 high-performance N-Way Ethernet ports can support both MDI-II and
MDI-X connections.
