D-Link Unified Access System Topology 23
1 Overview of the D-Link Unified Access System
WLAN Visualization
The D-Link Unified Access System includes the WLAN Visualization tool, which provides a
graphical representation of your wireless network through a Web browser. WLAN
Visualization detects and displays the D-Link Unified Switch, D-Link Access Points, other
access points, and all wireless clients associated with the D-Link Access Point. You can import
information about your building layout to customize the network view.
Figure 1 shows an example of a floor plan and network with a D-Link Unified Switch that
manages two APs. The graph also shows a peer switch and a rogue AP in the network.

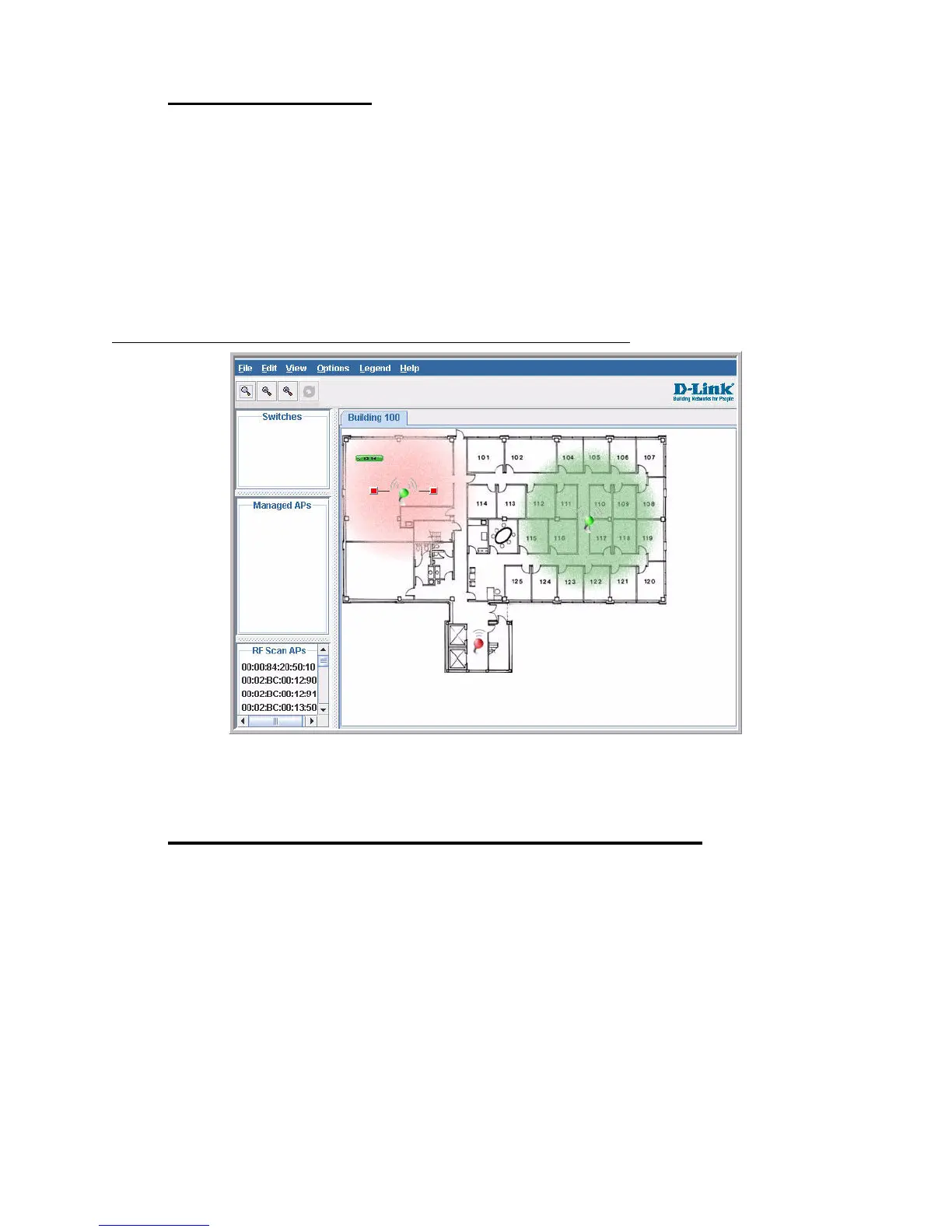

Figure 1. Sample WLAN Visualization
The WLAN Visualization tool provides an AP power display with color-coded channels to
help you determine where to physically place access points to reduce interference or increase
coverage on your WLAN.
D-Link Unified Access System Topology
The WLAN network topology you use depends on the size and requirements of your network.
Small-to-medium networks might require only one Unified Switch that manages a few D-Link
Access Points. For larger networks that need greater roaming capabilities for wireless clients, a
deployment with multiple peer switches that each manage several APs might be appropriate.
