D-Link Unified Access System User Manual

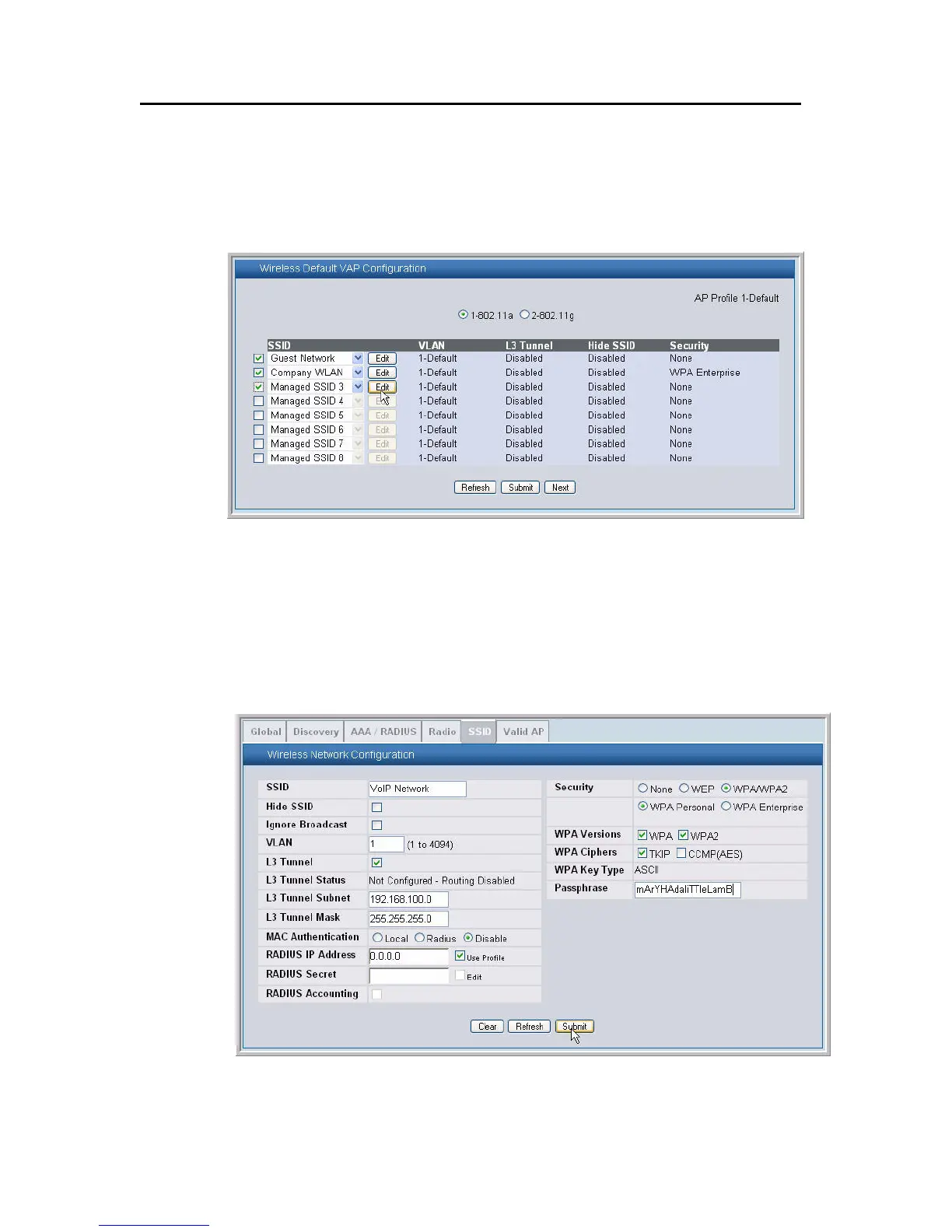

Example of Configuring L3 Roaming by Using the Web Interface

The following steps shows the procedures to configure the L3 Tunnel Network by using the

Web interface on the switch.

1. From the Administration > Basic Setup > SSID tab, select the check box next to the

SSID to configure and click Edit.

2. From Wireless Network Configuration page, configure the following settings:

- SSID—L3 Tunnel

- L3 Tunnel check box—Selected

- L3 Tunnel Subnet—192.168.60.0

- L3 Tunnel Mask—255.255.255.0.

- Security—WPA/PSK.

The L3 Tunnel Subnet is the network IP address of the VLAN routing interface configured

in the procedures for Creating the VLAN Routing Interface.

3. Click Submit to save the changes to the L3 Tunnel network configuration.
