User's Manual
86
Figure 3-42

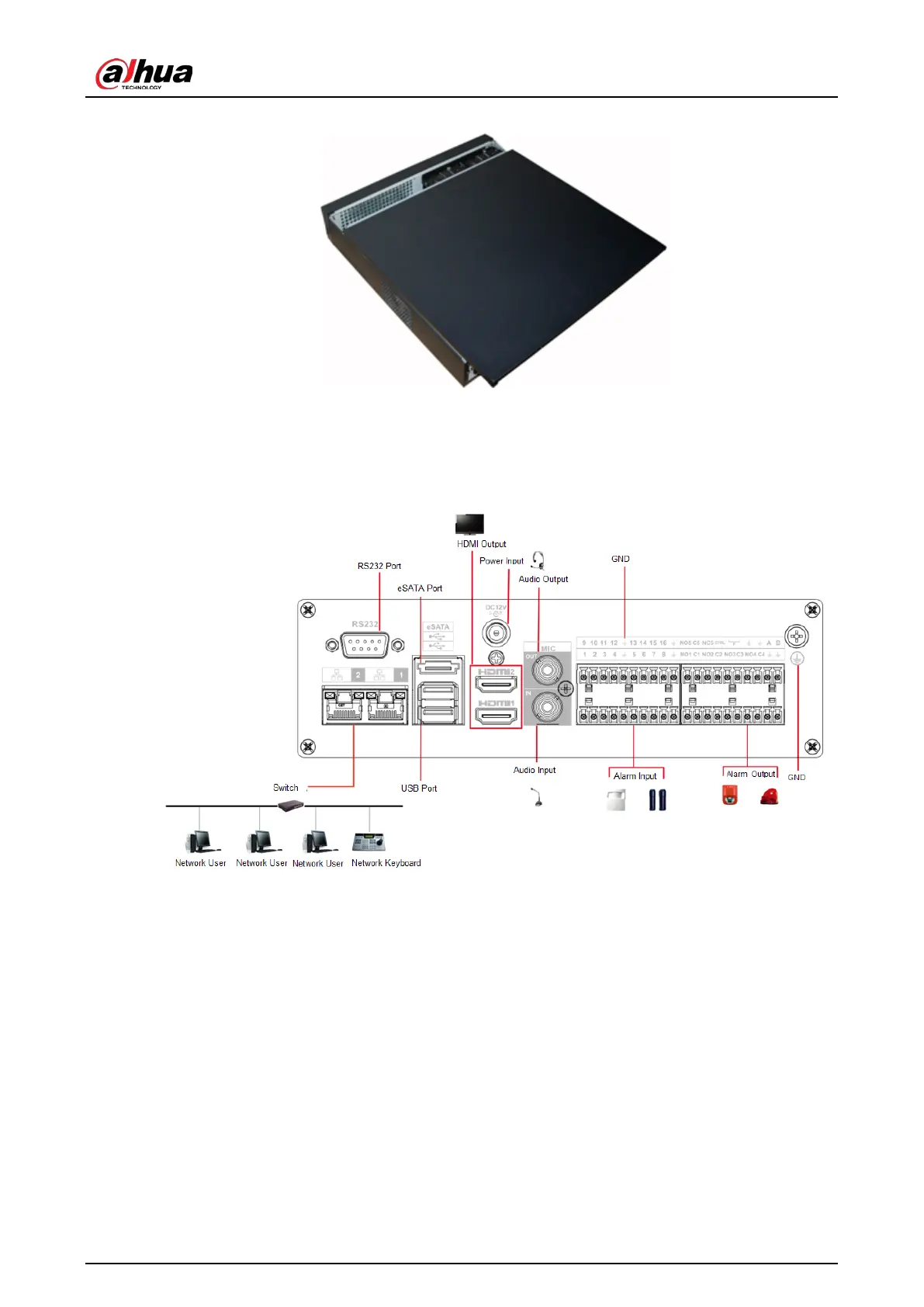

3.6 Connection Sample
Figure 3-43 IVD connection sample
3.6.1 NVR41-4KS2/NVR41-P-4KS2/NVR41-8P-4KS2/NVR41-
4KS2/L/NVR41-P-4KS2/L/NVR41-8P-4KS2/L/NVR21-4KS2/NVR21-P-
4KS2/NVR21-8P-4KS2/NVR21-I/NVR21-I2/NVR21-P-I/NVR21-P-
I2/NVR21-8P-I/NVR21-8P-I2 Series
See Figure 3-44 for connection sample.
