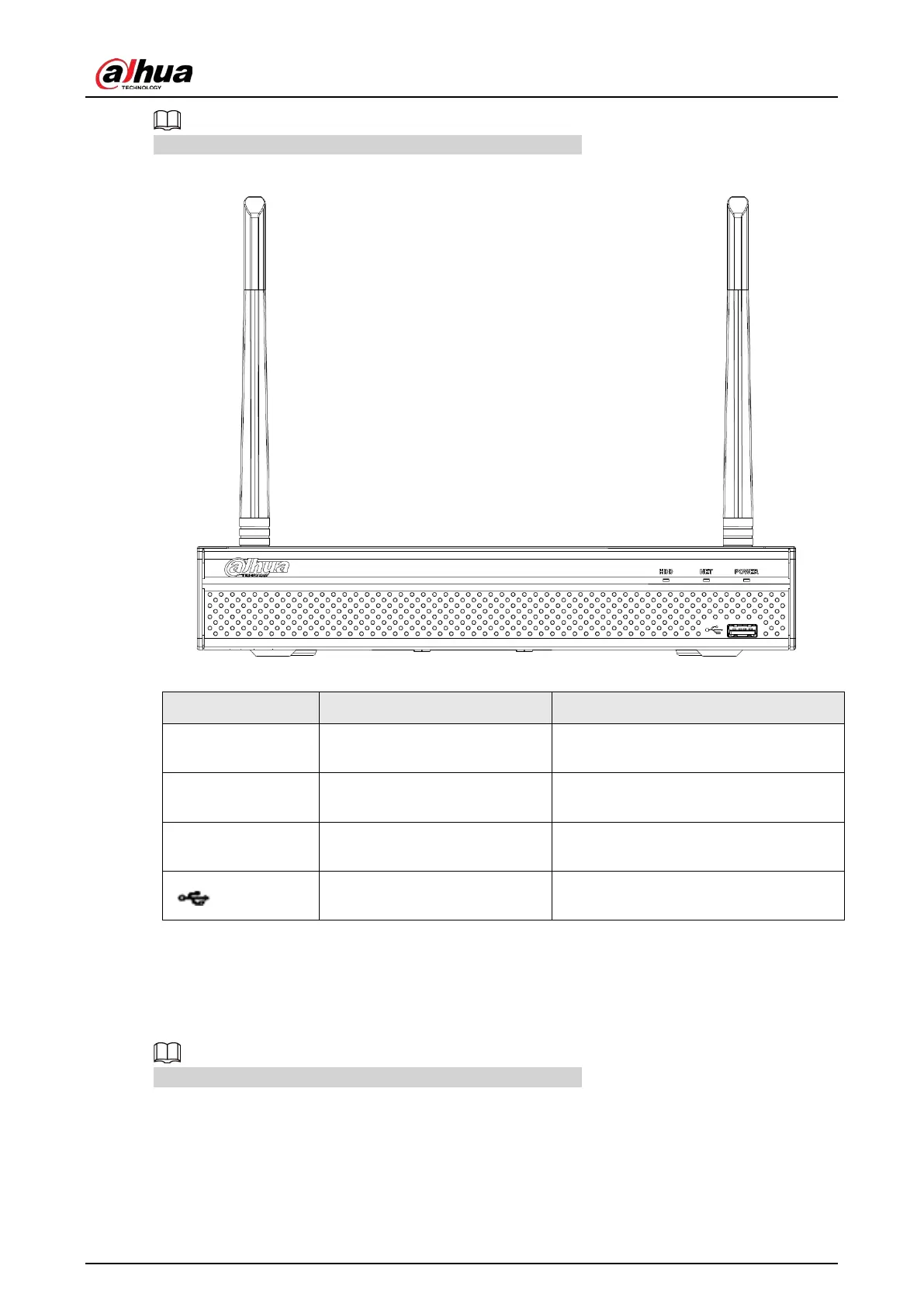

Figure 2-8 Front panel
Table 2-5 Icons
Icon Name Function
HDD HDD status indicator light
The blue light is on when the HDD is
malfunction.
NET Network status indicator light
The blue light is on when the network
connection is abnormal.
POWER Power status indicator light
The blue light is on when the power
connection is OK.
USB2.0 port
Connect to peripheral USB 2.0 storage
device, mouse and etc.
2.1.6 NVR21-I/NVR21-I2/NVR21-P-I/NVR21-P-I2/NVR21-8P-I/NVR21-
8P-I2 Series
The figure is for reference only. The actual product shall prevail.
The NVR21-I/NVR21-I2front panel is shown as below.
