User's Manual
45
Port Name Connection Function
VGA
VGA video output
port
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
Network port
10M/100Mbps self-adaptive Ethernet port.
Connect to the network cable.
PoE PORTS PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to
provide power to the network camera.
Power input port Power socket.

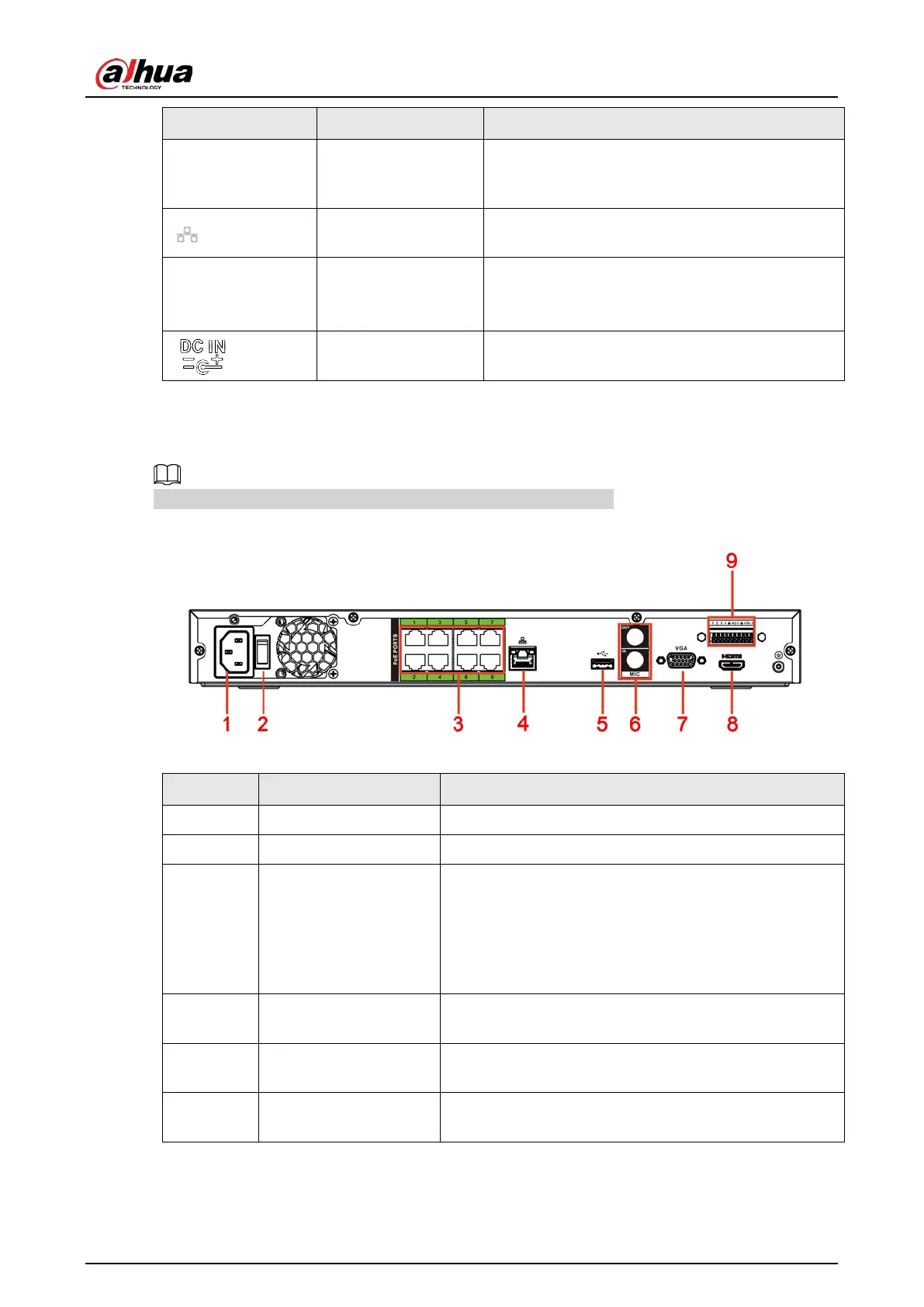

2.2.22 NVR4208-8P-I Series
These figures are for reference only. The actual product shall prevail.
Figure 2-66 Rear panel
Table 2-34 Ports
No. Port Name Function
1 Power input port Input power of 100V-240V and 50Hz-60Hz.
2 Power button Turns on/off the NVR.
3 PoE port
Built-in switch. It can provide power for IPC.
8 PoE ports: 1-8 are ePoE ports (support 300m @ 100M.
800m @ 10M). The device supports 48V, 100W total
power output under 55
℃
, and 48V, 130W total power
output under 45
℃
.
4 Network port
10M/100M/1000Mbps self-adaptive Ethernet port.
Connect to the network cable.
5 USB port
USB3.0 port. Connect to devices such as mouse, USB
storage device and USB burner.
6 MIC IN
Bidirectional talk input port. It is to receive analog audio
signal from devices such as microphone, sound pickup.
