User's Manual
54
No. Port Name Function
6 USB port
USB3.0 port. Connect to devices such as mouse, USB storage
device and USB burner.
7 Network port
10M/100M/1000Mbps self-adaptive Ethernet port. Connect
to the network cable.
8
MIC IN
Bidirectional talk input port. It is to receive analog audio
signal from devices such as microphone, sound pickup.
MIC OUT
Audio output port. It is to output analog audio signal to
devices such as sound box.
●
Bidirectional talk output.
●
Audio output on 1-window video monitor.
●
Audio output on 1-window video playback.
9 VGA port
VGA video output port. Output analog video signal. It can
connect to the monitor to view analog video.
10 RS232 port
It is for general COM debugging to configure IP address and
transfer transparent COM data.
11
GND.

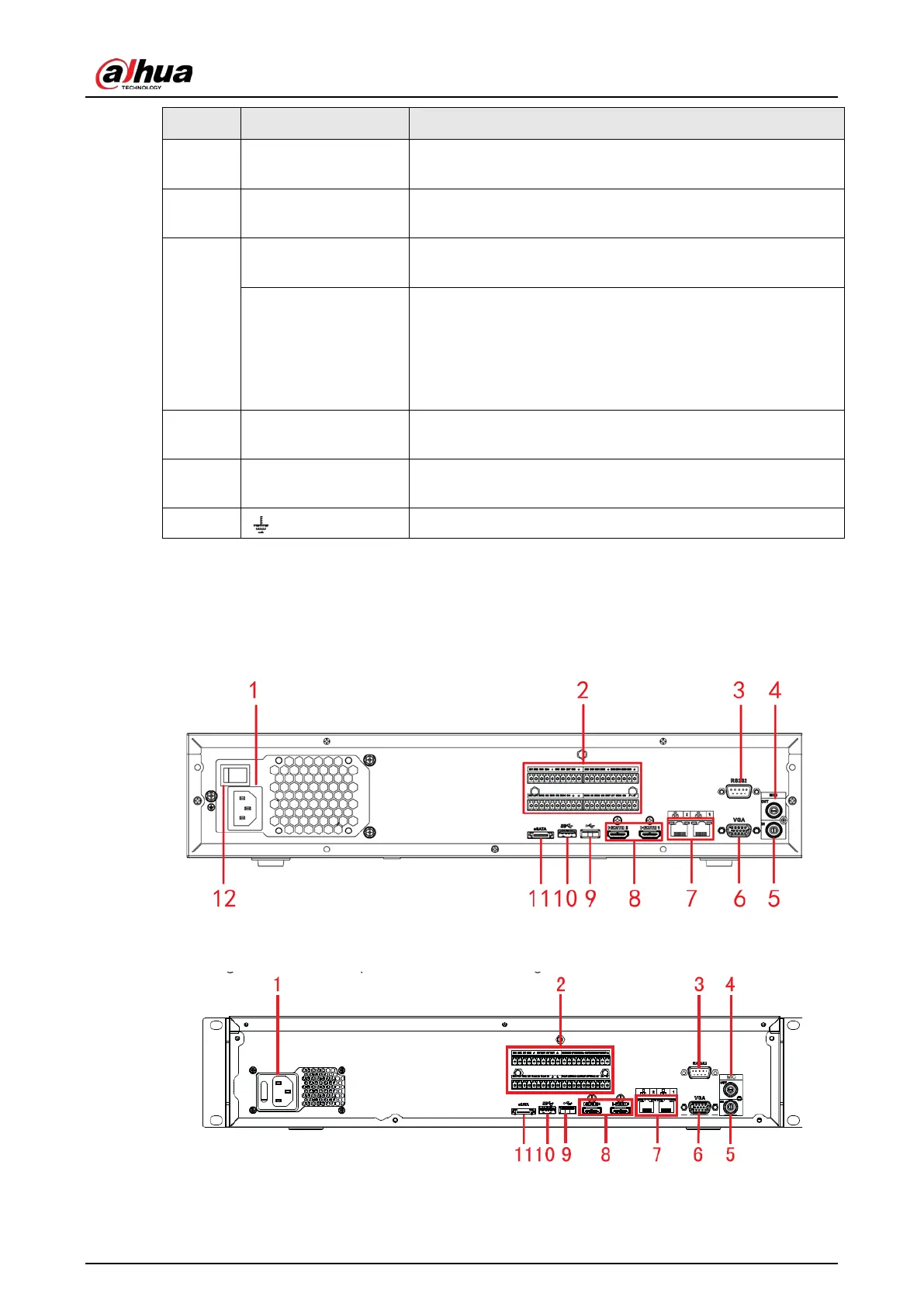

2.2.27 NVR608-4KS2 Series
The NVR608-32-4KS2 series rear panel is shown as below.
Figure 2-73 Rear panel
The NVR608-64-4KS2, NVR608-128-4KS2 general series rear panel is shown as below.
Figure 2-74 Rear panel
The NVR608-64-4KS2, NVR608-128-4KS2 redundant power series rear panel is shown as below.
