User's Manual
25
Name Function
P (+12V) —
+12V power output port. It can provide the
power to some peripheral devices such as the
camera or the alarm device. Please note the
supplying power shall be below 1A.
RS-232 RS232 debug COM.
It is for general COM debug to configure IP
address or transfer transparent COM data.
VGA VGA video output port
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
PoE PORTS —
Built-in Switch. Support PoE or ePoE function.
For ePoE series product, port 1 to port 8 are the
ePoE ports. ePoE port supports 300
meters@100Mbps, 800 meters@10Mbps. Port 9 to
port 16 are general PoE ports.
The 16 PoE series supports total 150W.
2.2.6 NVR41-4KS2/NVR41-P-4KS2/NVR41-8P-4KS2/NVR41-
4KS2/L/NVR41-P-4KS2/L/NVR41-8P-4KS2/L

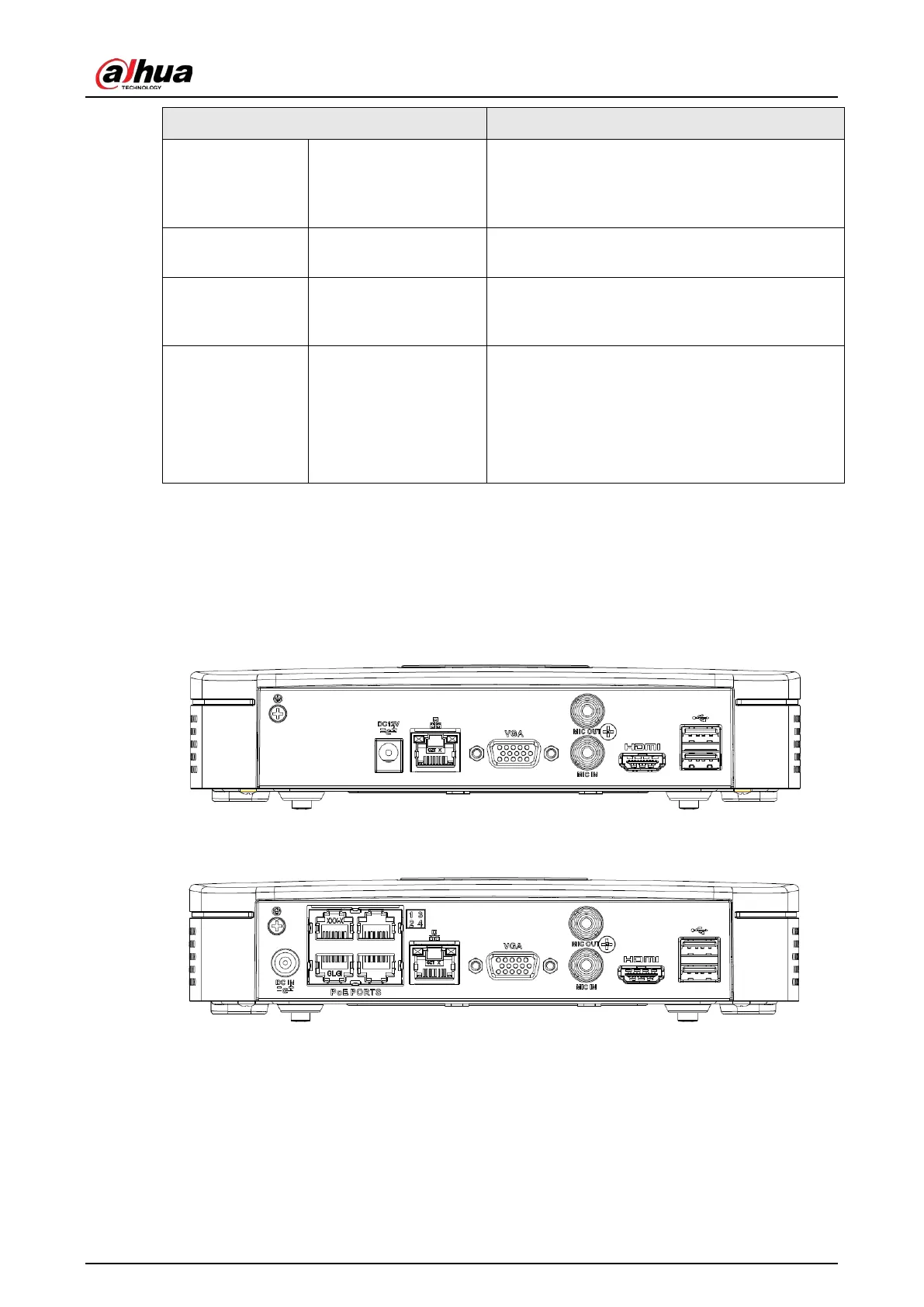

The NVR41-4KS2/NVR41-4KS2/L series rear panel is shown as below.
Figure 2-43 Rear panel
The NVR41-P-4KS2/NVR41-P-4KS2/L series rear panel is shown as below.
Figure 2-44 Rear panel
The NVR41-8P-4KS2/NVR41-8P-4KS2/L series rear panel is shown as below.
