User's Manual
89

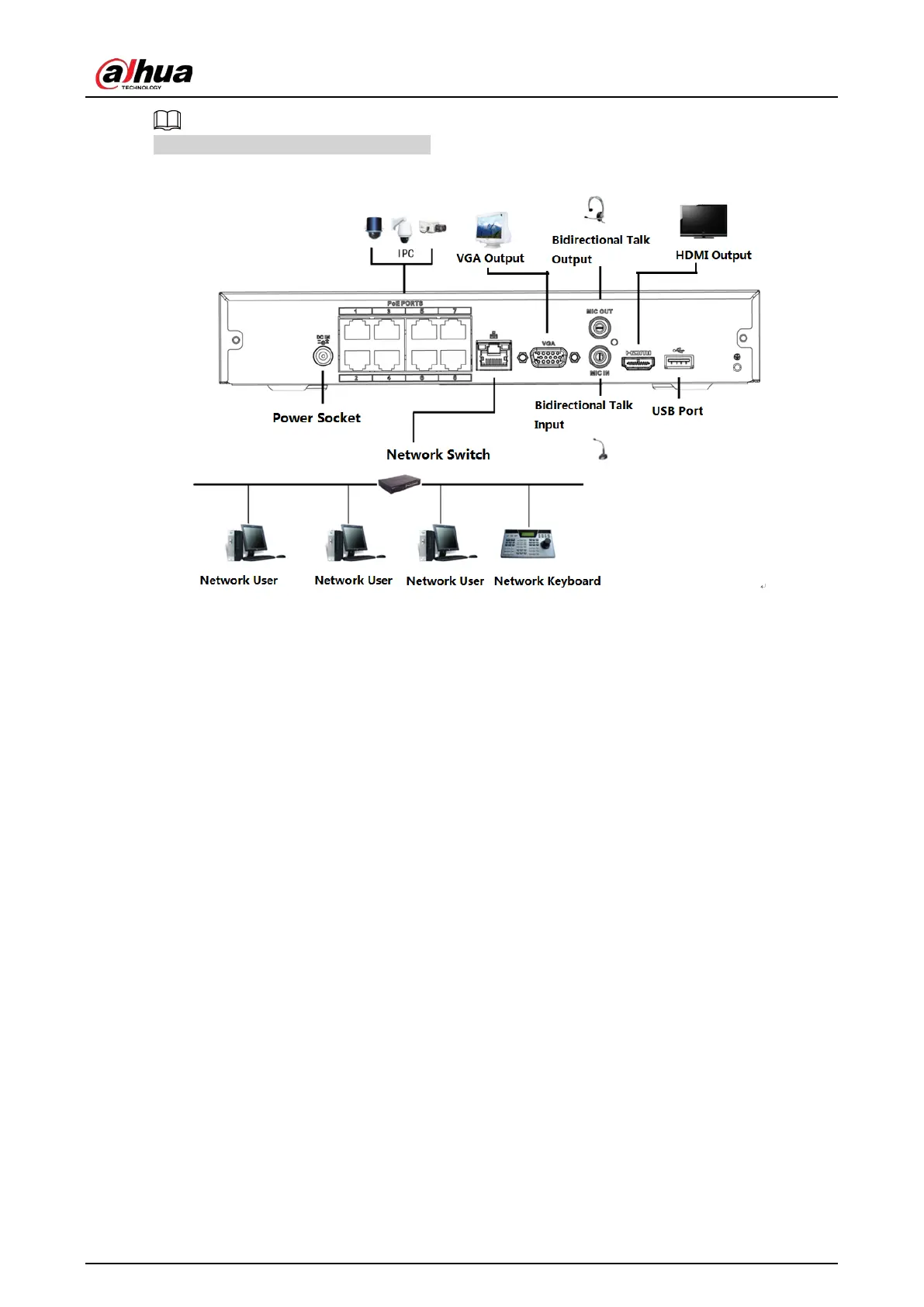

The following figure is for reference only.
Figure 3-46
3.6.4 NVR22-4KS2/NVR22-P-4KS2/NVR22-8P-4KS2/NVR22-I/NVR22-
I2/NVR22-P-I/NVR22-P-I2/NVR22-8P-I/NVR22-8P-I2/NVR22-16P-
I/NVR22-16P-I2 Series
See Figure 3-47 for connection sample.
