Fujitsu 8FX User Manual

MB95630H Series
MN702-00009-2v0-E FUJITSU SEMICONDUCTOR LIMITED 125
CHAPTER 10 WILD REGISTER FUNCTION
10.2 Configuration
10.2 Configuration
The block diagram of the wild register is shown below. The wild register
consists of the following blocks:
• Memory area block
Wild register data setting register (WRDR0 to WRDR2)
Wild register address setting register (WRAR0 to WRAR2)
Wild register address compare enable register (WREN)
Wild register data test setting register (WROR)
• Control circuit block
■ Block Diagram of Wild Register Function

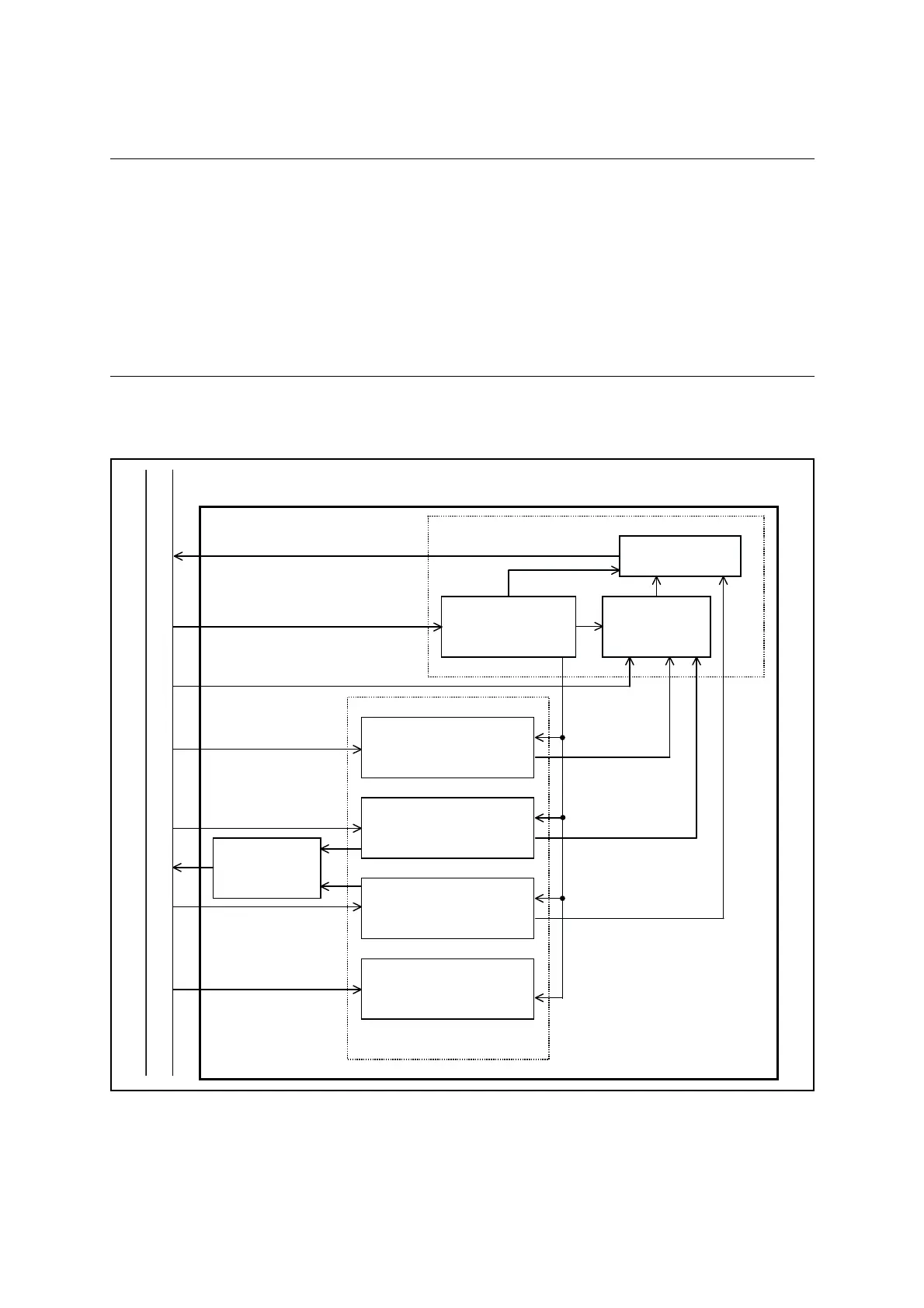

Figure 10.2-1 Block Diagram of Wild Register Function
Access
control circuit
Address
compare circuit
Decoder and logic
control circuit
Wild register address
compare enable register
(WREN)
Wild register data test
setting register
(WROR)
Wild register data setting
register
(WRDR)
Wild register address
setting register
(WRAR)
Access
control circuit
Internal bus
Memory space
Control circuit block
Wild register function
Memory area block
