CHAPTER 21 MULTI-PULSE GENERATOR
21.5 Operations
21.5.4.4 At Position Detection and Timer Underflow
The output timing change of the operation of the Position Detection and Reload
Timer underflow is shown in Figure 21.5-18 and Figure 21.5-19.
■ Timing Generated by Position Detection and Timer Underflow

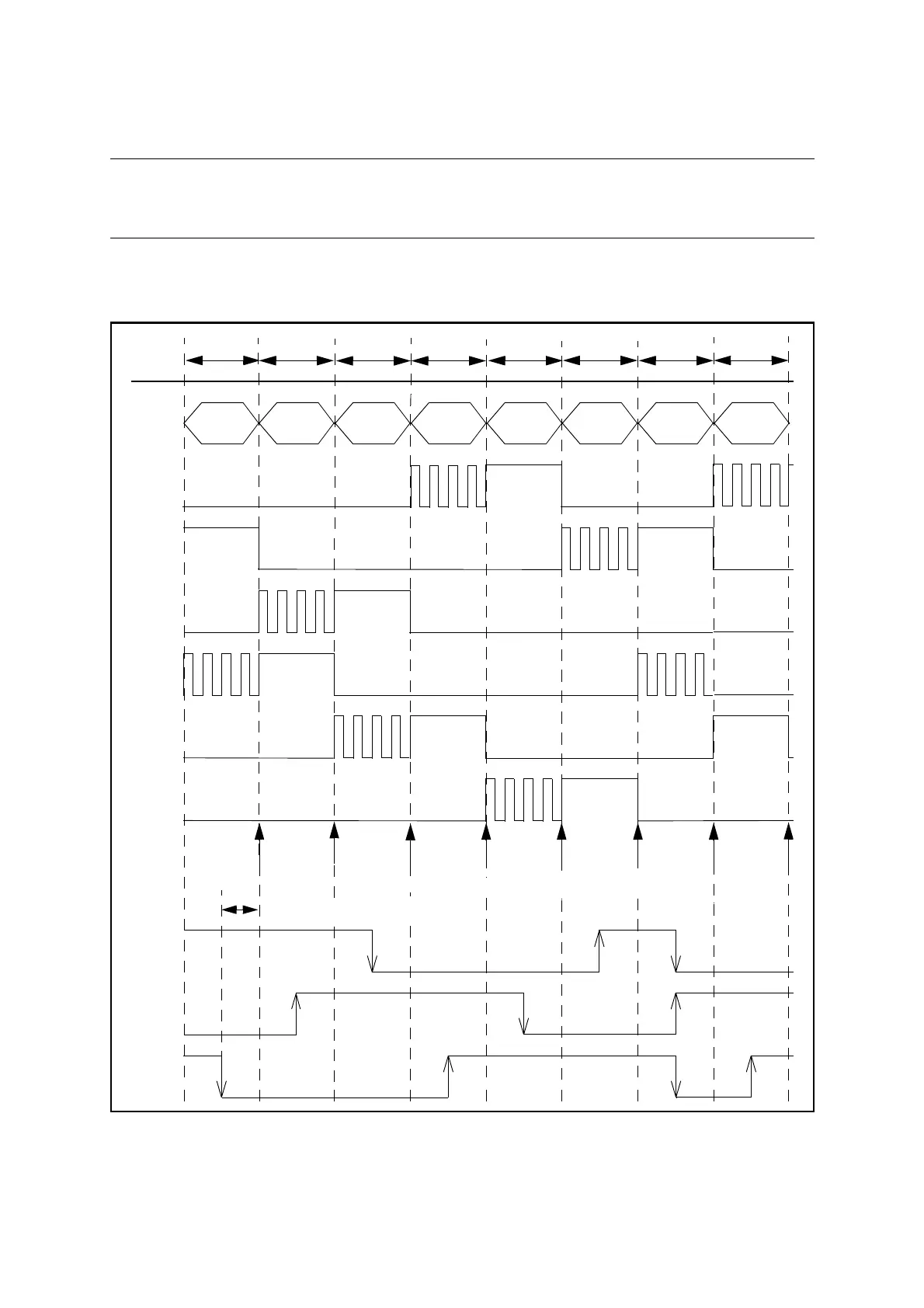

Figure 21.5-18 Timing Generated by Position Detection and Timer Underflow
No. 0 No. 4 No. 6 No. 2 No. 3 No. 1 No. 5 No. A
0b0100 0b0110 0b0010 0b0011 0b0001 0b0101 0b1010 0b1011
BNKF,
RDA2,
RDA1,
RDA0
OPT5
OPT4
OPT3
OPT2
OPT1
OPT0
SNI2
SNI1
SNI0
16-bit reload timer down-counting time
Write signal is generated by 16-bit reload timer underflow.
