Fujitsu 8FX User Manual

MB95630H Series
532 FUJITSU SEMICONDUCTOR LIMITED MN702-00009-2v0-E
CHAPTER 25 EXAMPLE OF SERIAL PROGRAMMING CONNECTION
25.1 Basic Configuration of Serial
Programming Connection
25.1 Basic Configuration of Serial Programming
Connection
The MB95630H Series supports Flash memory serial on-board programming.
This section describes the configuration.
■ Basic Configuration of Serial Programming Connection
The BGM adaptor MB2146-07-E or MB2146-08-E, manufactured by Fujitsu Semiconductor
Limited, is used for serial onboard programming.

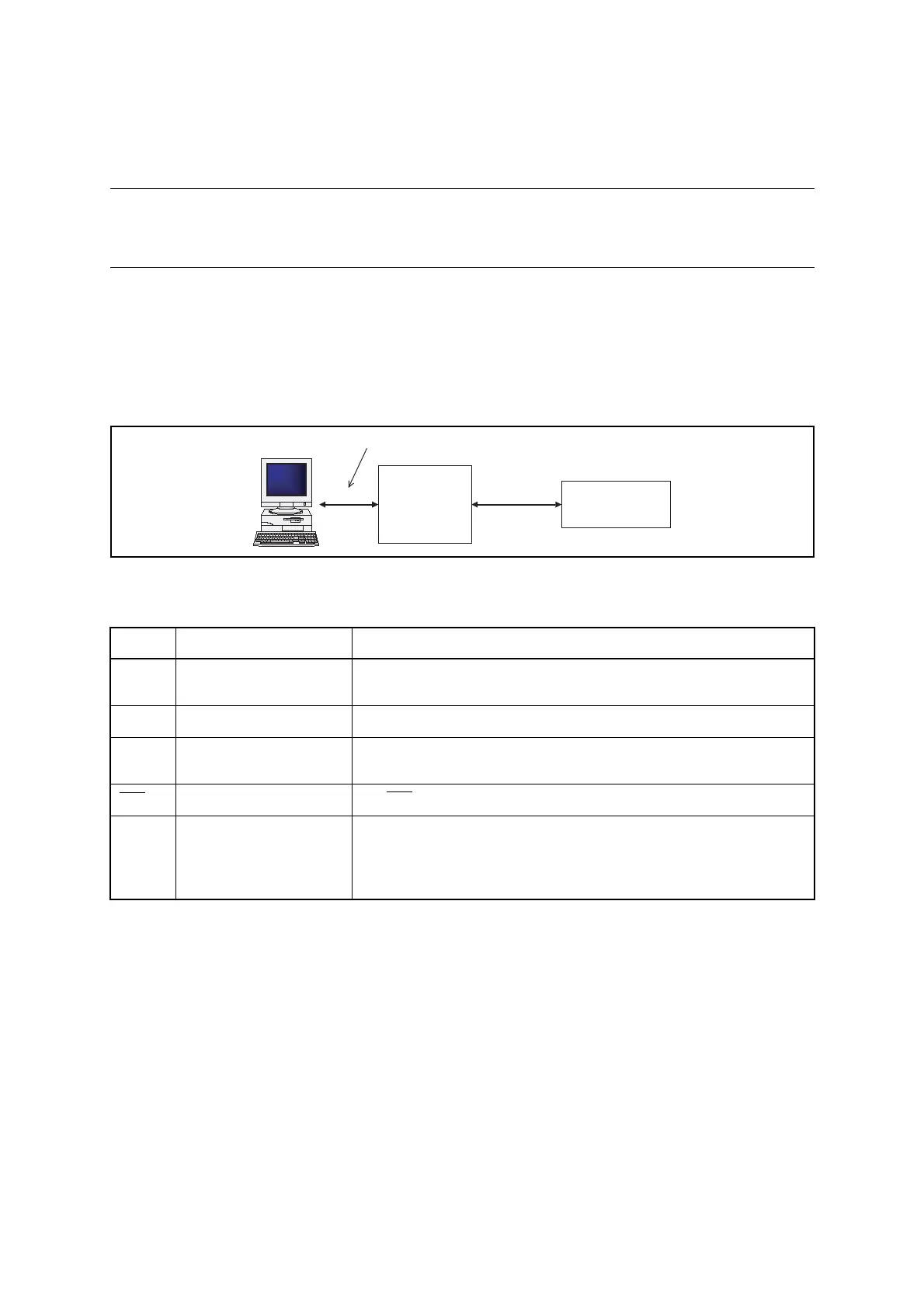

Figure 25.1-1 shows the basic configuration of serial programming connection.
Figure 25.1-1 Basic Configuration of Serial Programming Connection
● UART clock
The UART clock is supplied from the main CR clock.
USB 1-line UART
Host interface cable
Flash memory
product user system
BGM adaptor
(MB2146-07-E/
MB2146-08-E)
Table 25.1-1 Pins Used for Fujitsu Semiconductor Standard Serial Onboard Programming
Pin Function Details
V
CC
Power supply voltage
supply pin
The programming voltage (2.4 V to 5.5 V) is supplied from the user system.
V
SS
GND pin It is shared with the GND of the Flash microcontroller programmer.
C
Decoupling capacitor
connection
Connect it to a decoupling capacitor and then to the ground.
RST
Reset
The RST
pin is pulled up to V
CC
.
DBG
1-line UART setting serial
programming mode
The DBG pin provides 1-line UART communication with the programmer.
The serial programming mode is set if voltage is supplied to the DBG pin and
the V
CC
pin at specific timings.
(For the timings, see Figure 25.2-1.)
