CHAPTER 21 MULTI-PULSE GENERATOR
21.5 Operations
21.5.4.3 At Position Detection
The output timing change, which is triggered by the input pin SNIx for the
position detection, is shown in Figure 21.5-16 and Figure 21.5-17.
■ Timing Generated by Position Detection

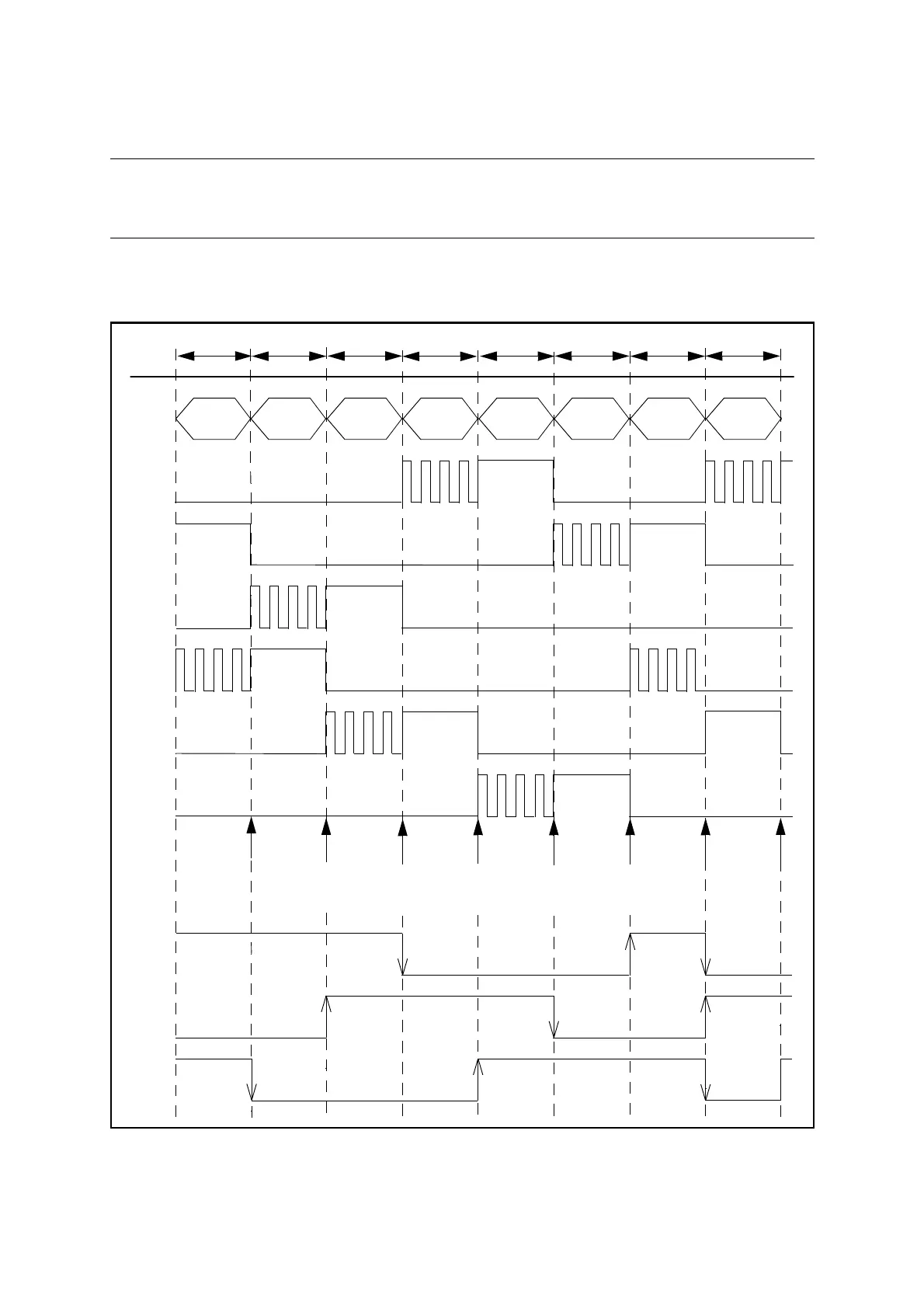

Figure 21.5-16 Timing Generated by Position Detection
0b0100 0b0110 0b0010 0b0011 0b0001 0b0101 0b1010 0b1011
OPT5
OPT4
OPT3
OPT2
OPT1
OPT0
SNI2
SNI1
SNI0
BNKF,
RDA2,
RDA1,
RDA0
Write signal is generated when theres is a comparison match between RDA[2:0] and
SNI2-SNI0 or any effective edge input at SNI2-SNI0. The comparison is triggered by the
input edge position detection input terminal SNIx.
No. 0 No. 4 No. 6 No. 2 No. 3 No. 1 No. 5 No. A
