To Next Page

To Previous Page

CT & VT

48 samples/

cycle ADC

Capacitive current

Compensation

Send to remote

AND

Ping-Pong

Technique

Recieve from

remote ends

Data alignment

(synchronisation)

Differential trip

Phase differential

CT supervision

CT saturation

(internal/external fault)

Internal fault

If Ibias > IbiasThres fulﬁlled

E00763

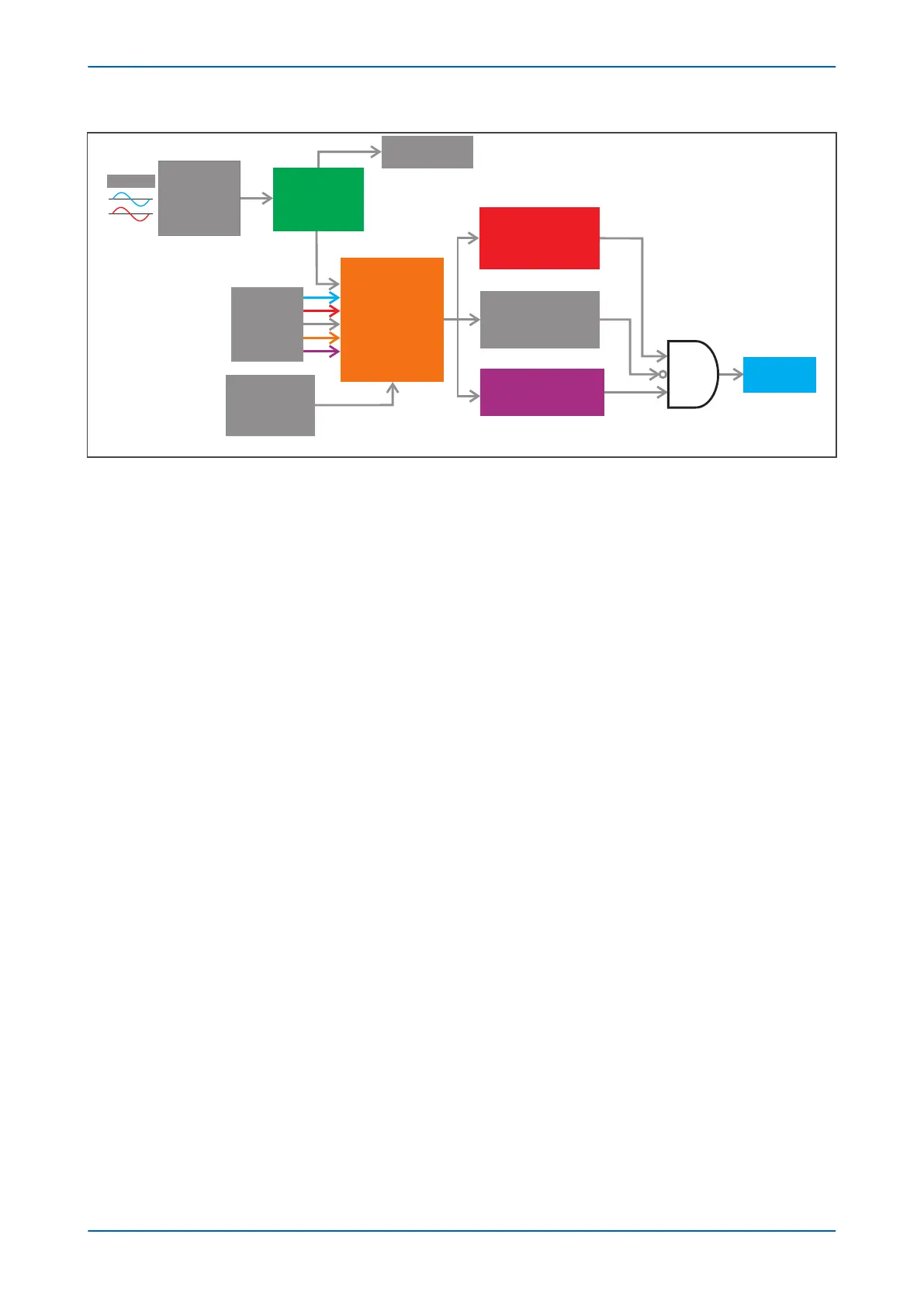

Figure 34: Overall scheme designed for multi-ended differential protection

2.3.6 COMMUNICATION REQUIREMENTS

● Communication topolog

y: Ring or master-master connection (up to 6 ends)

● Frame sending rate: 8 frames/cycle

● Communication connection ports: Ring topology

● Communication protocol: IEEE 37.94 *

● Bandwidth: 12*64 kbps

Details of communication configuration are described in the Fibre Teleprotection chapter.

*A GE recommended third party protocol converter could be used for other protocols such as X21.

P54A/B/C/E Chapter 6 - Current Differential Protection

P54xMED-TM-EN-1 103

Default Chapter3
- Table of Contents3
