default PSL is set up such that Function key 2 initiates a trip and Function key 3 initiates a close. For this to work
y
ou have to set the CB control by cell to option 5 Opto+Local, or option 7 Opto+Local+Remote in the CB
CONTROL column.
As shown below, function keys 2 and 3 have already been assigned to CB control in the default PSL.
V01245
Function Key 2
Init Trip CB
FnKey LED2 Red
FnKey LED2 Grn
Function Key 3
Init Close CB
FnKey LED3 Red
FnKey LED3 Grn
1
Close in Prog
Non-
Latching
Non-
Latching

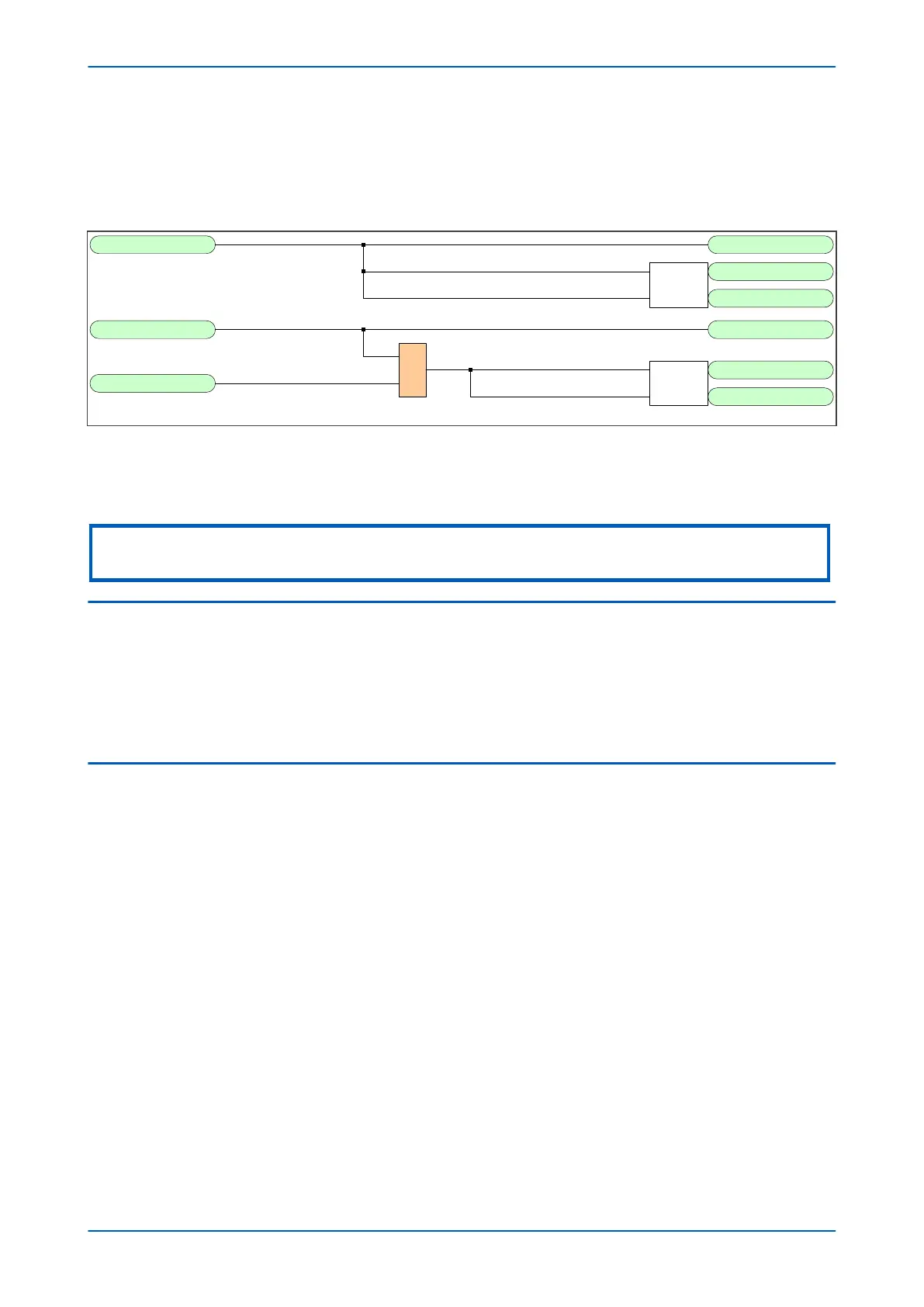

Figure 131: Default function key PSL
The pr
ogrammable function key LEDs have been mapped such that they will indicate yellow whilst the keys are
activated.
Note:
Not all models provide function keys.
7.4 CB CONTROL USING THE OPTO-INPUTS
Certain applications may require the use of push buttons or other external signals to control the various CB control
operations. It is possible to connect such push buttons and signals to opto-inputs and map these to the r
elevant
DDB signals.
For this to work, you have to set the CB control by cell to option 4 opto, option 5 Opto+Local, option 6 Opto
+Remote, or option 7 Opto+Local+Remote in the CB CONTROL column.
7.5 REMOTE CB CONTROL
Remote CB control can be achieved by setting the CB T
rip/Close cell in the SYSTEM DATA column to trip or close by
using a command over a communication link.
For this to work, you have to set the CB control by cell to option 2 Remote, option 3 Local+Remote, option 6
Opto+remote, or option 7 Opto+Local+Remote in the CB CONTROL column.
We recommend that you allocate separate relay output contacts for remote CB control and protection tripping.
This allows you to select the control outputs using a simple local/remote selector switch as shown below. Where
this feature is not required the same output contact(s) can be used for both protection and remote tripping.
P54A/B/C/E Chapter 12 - Monitoring and Control
P54xMED-TM-EN-1 263
