5.16 CIRCUIT BREAKER CONTROL

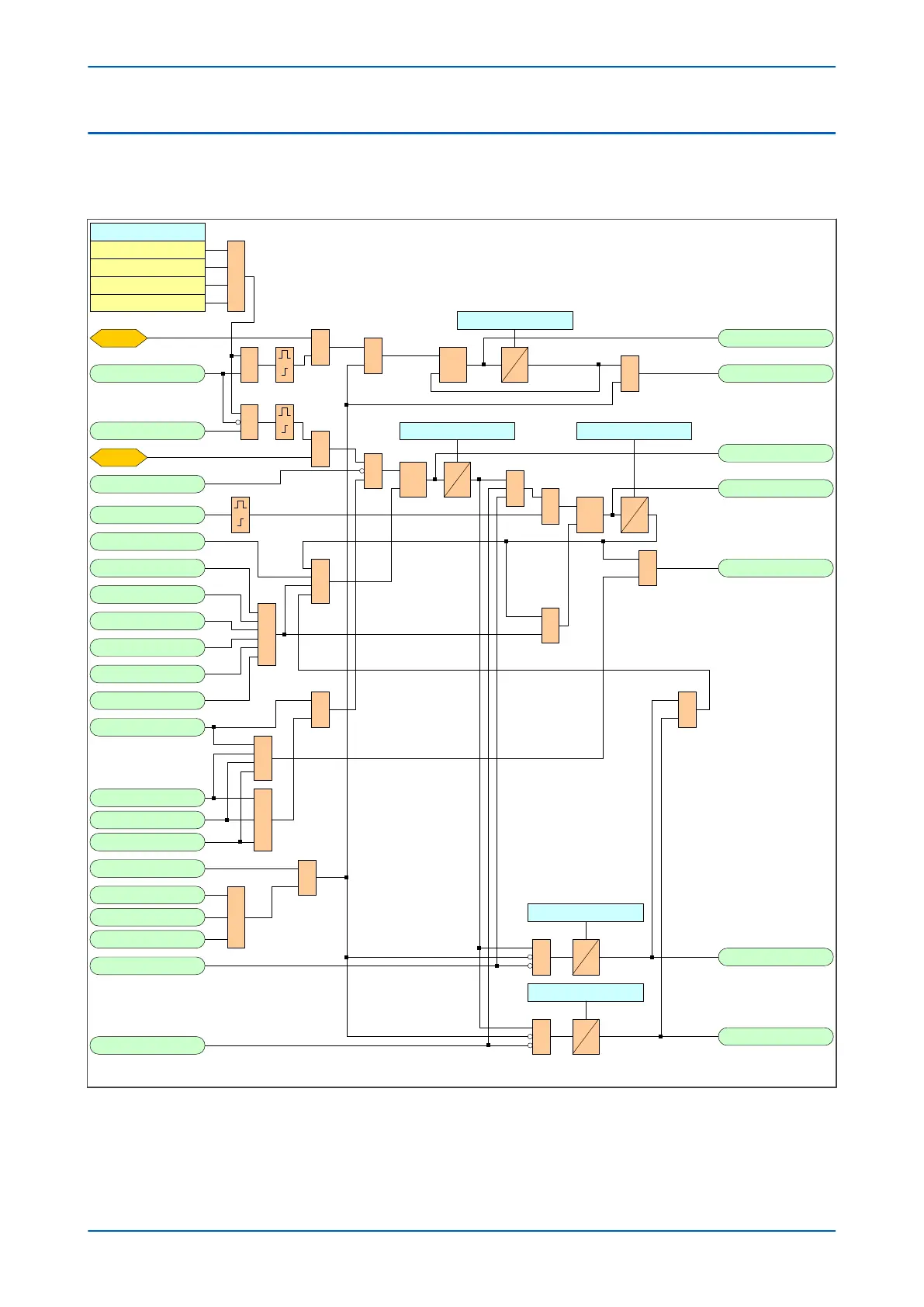

5.16.1 CB CONTROL LOGIC DIAGRAM

V03369

Init close CB

CB Control by

Opto+Local

Opto

Opto+Remote

Opto+Rem+Local

HMI Trip

HMI Close

Init Trip CB

CB ARIP

Auto Close

CB Close Fail

Control Close

Close in Prog

CB Trip Fail

Control Trip

Reset Close Dly

External Trip3Ph

Control Trip

Any Trip

CB Open 3 ph

CB Closed 3 ph

CB Healthy

Man CB Unhealthy

No C/S Man Close

CB Man SCOK

External Trip A

External Trip B

External Trip C

CB Open A ph

CB Open B ph

CB Open C ph

CB Closed A ph

CB Closed B ph

CB Closed C ph

Trip Pulse Time

Close Pulse TimeMan Close Delay

CB Healthy Time

Check Sync Time

Note: If the DDB signal CB Healthy is not mapped in PSL it defaults to High .

Figure 83: CB Control logic diagram (Module 43)
