V01056

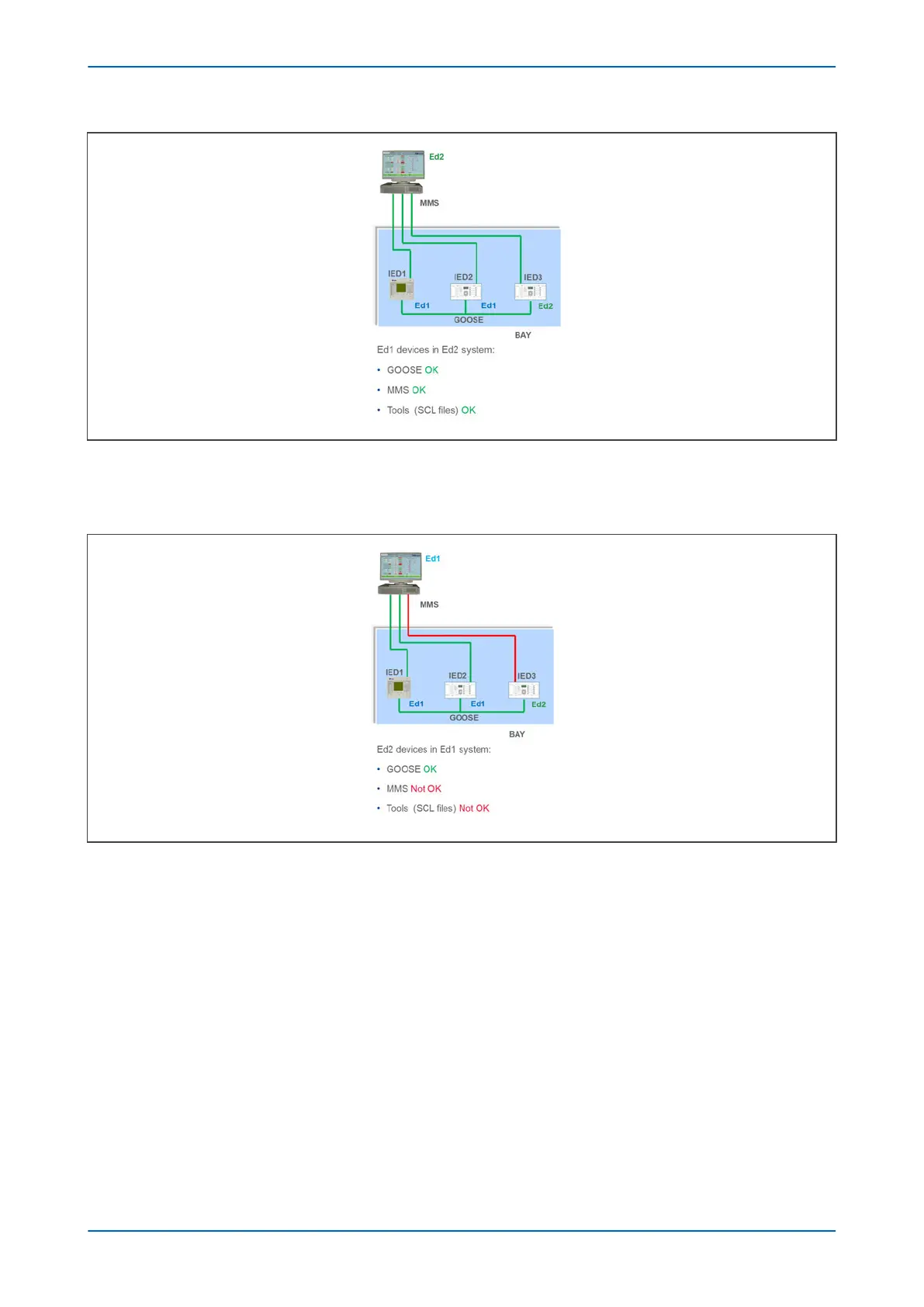

Figure 186: Edition 2 system - backward compatibility

An Edition 2 IED cannot normally operate within an Edition 1 IEC 61850 system. An Edition 2 IED can w

ork for

GOOSE messaging in a mixed system, providing the client is compatible with Edition 2.

V01057

Figure 187: Edition 1 system - forward compatibility issues

7.4.11.2 EDITION-2 COMMON DATA CLASSES

The following common data classes (CDCs) are new to Edition 2 and therefore should not be used in GOOSE control

blocks in mixed Edition 1 and Edition 2 systems

● Histogram (HST)

● Visible string status (V

SS)

● Object reference setting (ORG)

● Controllable enumerated status (ENC)

● Controllable analogue process value (APC)

● Binary controlled analogue process value (BAC)

● Enumerated status setting (ENG)

● Time setting group (TSG)
