4 FRONT PANEL
4.1 FRONT PANEL
Depending on the exact model and chosen options, the product will be housed in either a 40TE, 60TE or 80TE case.
By w
ay of example, the following diagram shows the front panel of a typical 60TE unit. The front panels of the
products based on 40TE and 80TE cases have a lot of commonality and differ only in the number of hotkeys and
user-programmable LEDs. The hinged covers at the top and bottom of the front panel are shown open. An optional
transparent front cover physically protects the front panel.

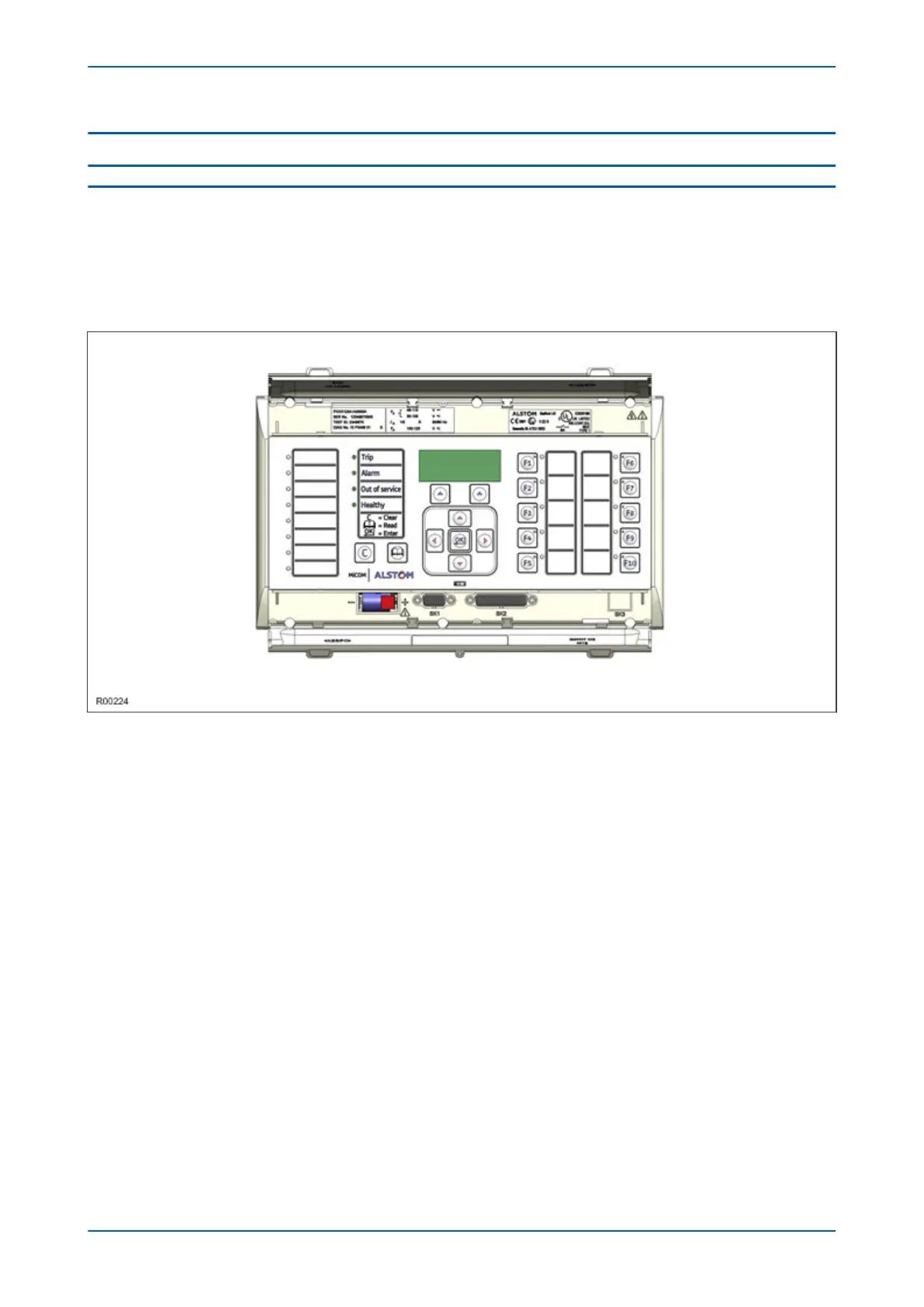

Figure 6: Front panel (60TE)
The fr
ont panel consists of:
Top and bottom compartments with hinged cover
LCD display
Keypad
9 pin D-type serial port
25 pin D-type parallel port
Fixed function LEDs
Function keys and LEDs (60TE and 80TE models)
Programmable LEDs (60TE and 80TE models)
4.1.1 FRONT PANEL COMPARTMENTS
The top compartment contains labels for the:
Serial number
Curr
ent and voltage ratings.
P54A/B/C/E Chapter 3 - Hardware Design
P54xMED-TM-EN-1 35
