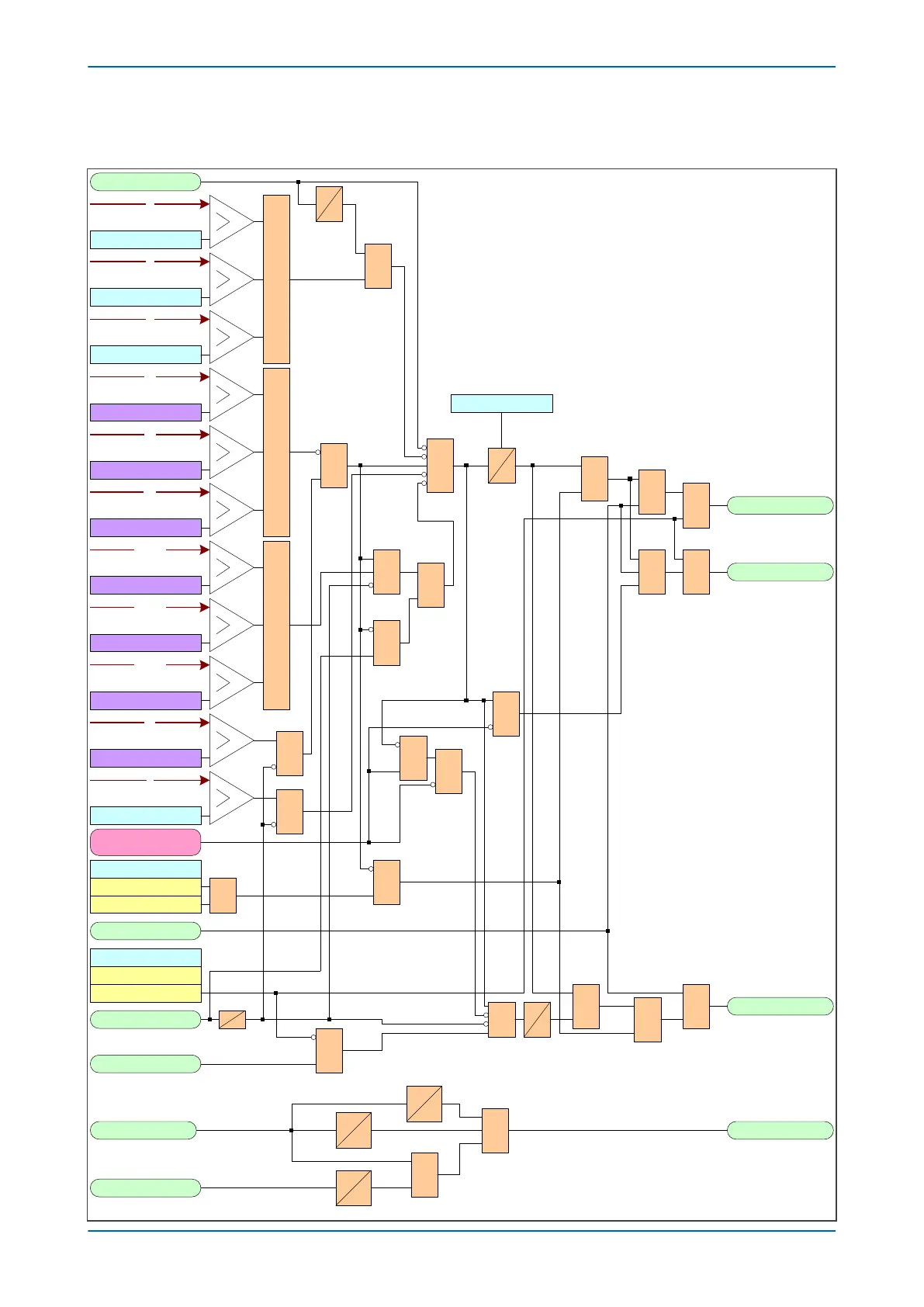

3.5 VTS LOGIC

V01261

All Poles Dead

VTS I> Inhibit

Hardcoded threshold

I2>1 Current Set

Delta IA

Delta IB

Delta IC

Hardcoded threshold

Any Pole Dead

VTS Reset Mode

Manual

Auto

MCB/VTS

VTS Status

Indication

Blocking

VTS Acc Ind

& VTS Slow Block

VTS Fast Block

VT Fail Alarm

Hardcoded threshold

240ms

VTS Time Delay

20ms

Any Voltage dependent

function

VT Fast Block

All Poles Dead

Block Distance

Cycle

1½

Cycle

P54A/B/C/E Chapter 13 - Supervision
