IED
Ethernet switch
TX1
Media
C
onverter
RJ45
V01803
R
X1 TX2 RX2
RX1 TX1 RX2 TX2
TX RX
(a)
(
b)
IED
RX1 TX1 RX2 TX2

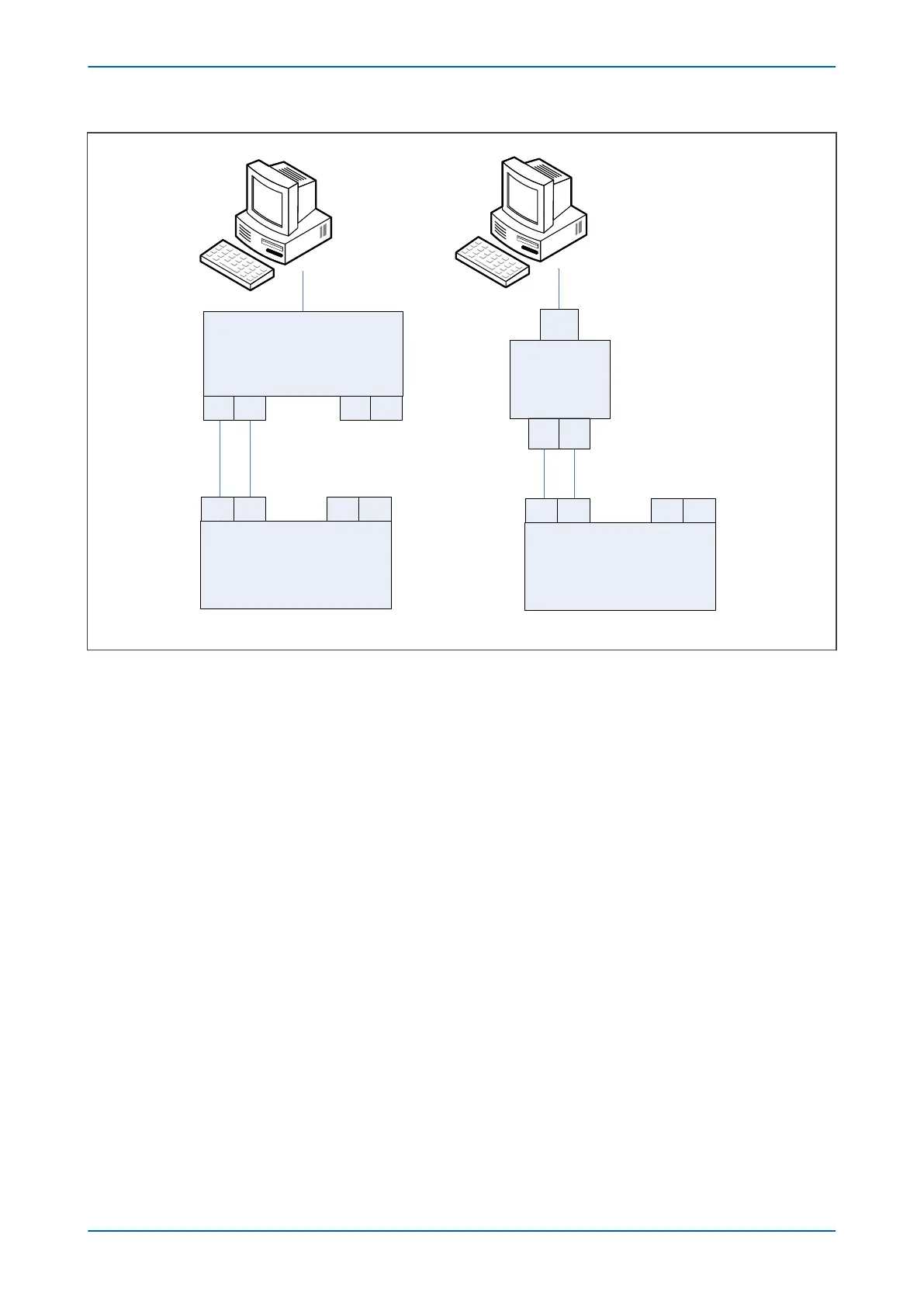

Figure 183: Connection using (a) an Ethernet switch and (b) a media converter
5.9.2 INSTALLING THE CONFIGURATOR
To install the configurator:
1.
Double click the WinPcap installer.
2. Double click the Configurator installer.
3. Click Next and follow the on-screen instructions.
5.9.3 STARTING THE CONFIGURATOR
To start the configurator:
1.
Select the Configurator from the Windows Programs menu.
2. The Login screen appears. For user mode login, enter the Login name as User and click OK with no
password.
3. If the login screen does not appear, check all network connections.
4. The main window appears. In the bottom right-hand corner of the main window, click the Language button
to select the language.
5. The Network Board drop-down list shows the Network Board, IP Address and MAC Address of the PC in
which the Configurator is running.
5.9.4 RSTP DEVICE IDENTIFICATION
To configure the redundant Ethernet board, go to the main window and click Identif
y Device.
Chapter 17 - Communications P54A/B/C/E
366 P54xMED-TM-EN-1
