V03396

Protection Trip

AR in Progress

CB Open

Dead Time

Auto-close

Reclaim Time

Autoreclose Lockout

Successful Autoreclose

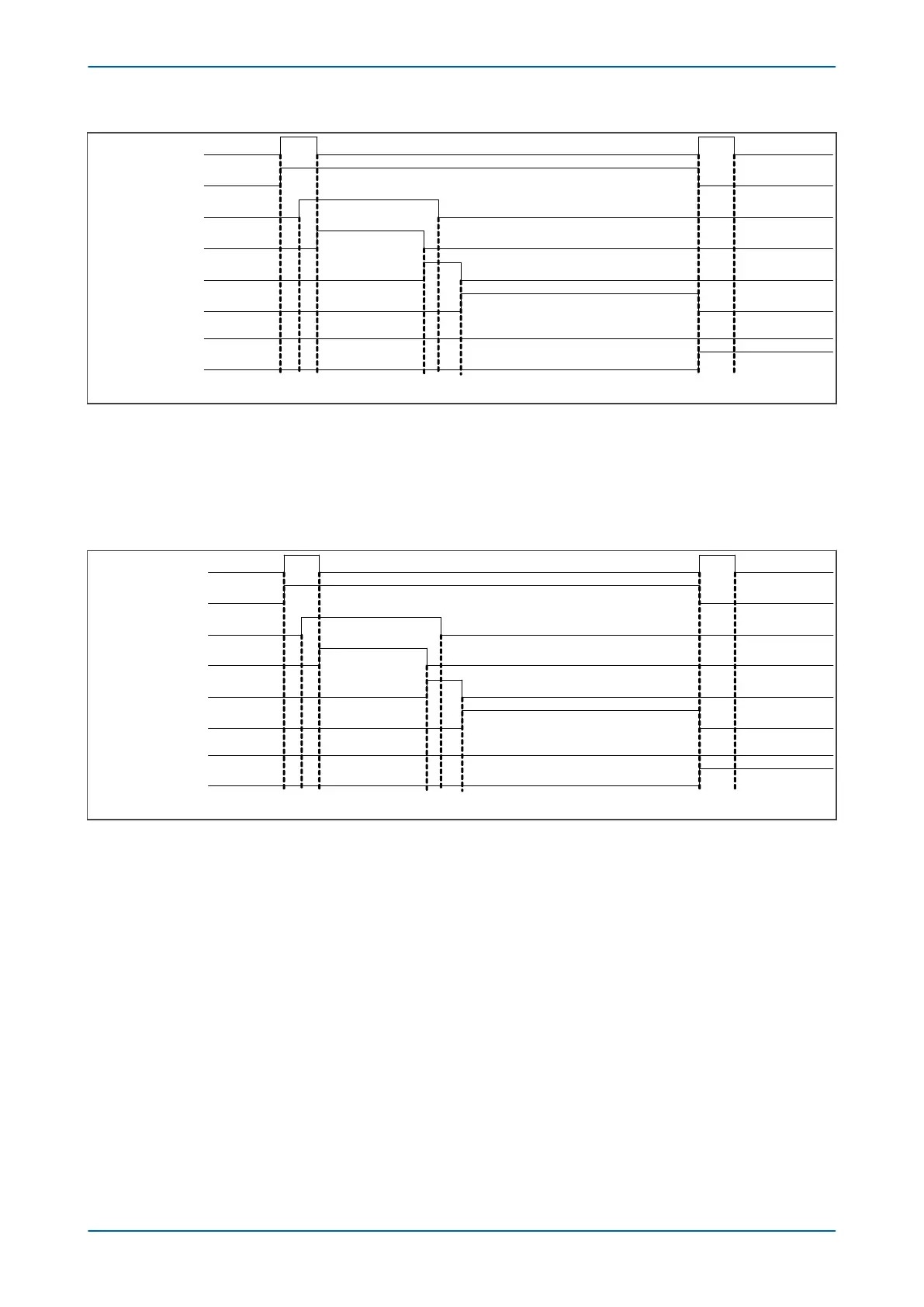

Figure 49: Autoreclose sequence for an evolving or permanent fault

3.4.3 AR TIMING SEQUENCE - EVOLVING/PERMANENT FAULT SINGLE-PHASE

If the Autorecloser is set for single-phase operation, then single phase operation is only allowed on the first shot.

ubsequent tripping will be three-phase only until the AR has been successful or until AR has locked out as shown

in the figure below.

V03397

Protection Trip

AR in Progress

CB Open

Dead Time

Auto-close

Reclaim Time

Autoreclose Lockout

Successful Autoreclose

1-ph 3-ph

Figure 50: Autoreclose sequence for an evolving or permanent fault - single-phase operation

P54A/B/C/E Chapter 7 - Autoreclose

P54xMED-TM-EN-1 131
