IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-40 Section 8-3 - Control Console Components - Replacement Procedures
PRELIMINARY
7.) Lift the Touch Screen off the chassis and remove from the system.
8.) Carefully lie the Touch Screen face-down on a clean, soft, stable surface - Figure 8-45
9.) Remove the Touch Screen Rotaries Board:
NOTE: After removing the Touch Screen Rotaries Board, if not installing the replacement Touch Screen
immediately, keep the Rotaries Board and screws in a safe place as they will be required later for
refitting to the new Touch Screen.

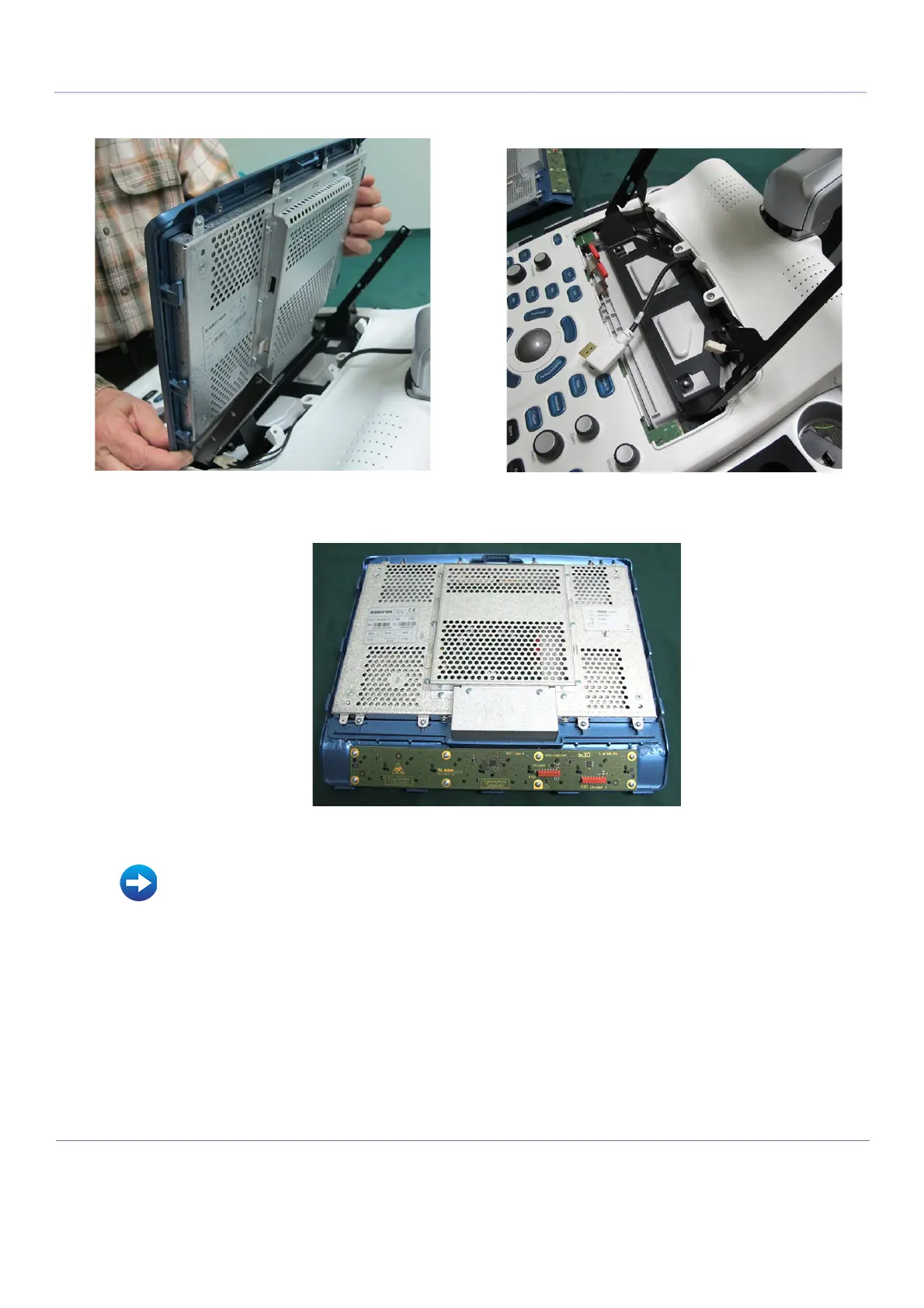

Figure 8-44 Removing the Touch Screen
Figure 8-45 Touch Screen Removed
• Touch Screen Rotaries Board Removal Procedure on page 8 - 42
