D
IRECTION
FR091521, R
EVISION
1
V
IVID
S60N/V
IVID
S70N
B
ASIC
S
ERVICE
M
ANUAL
8-74
Sect
ion 8-4 - Ca
bles - Repla
cement Procedures
PRELIMINARY

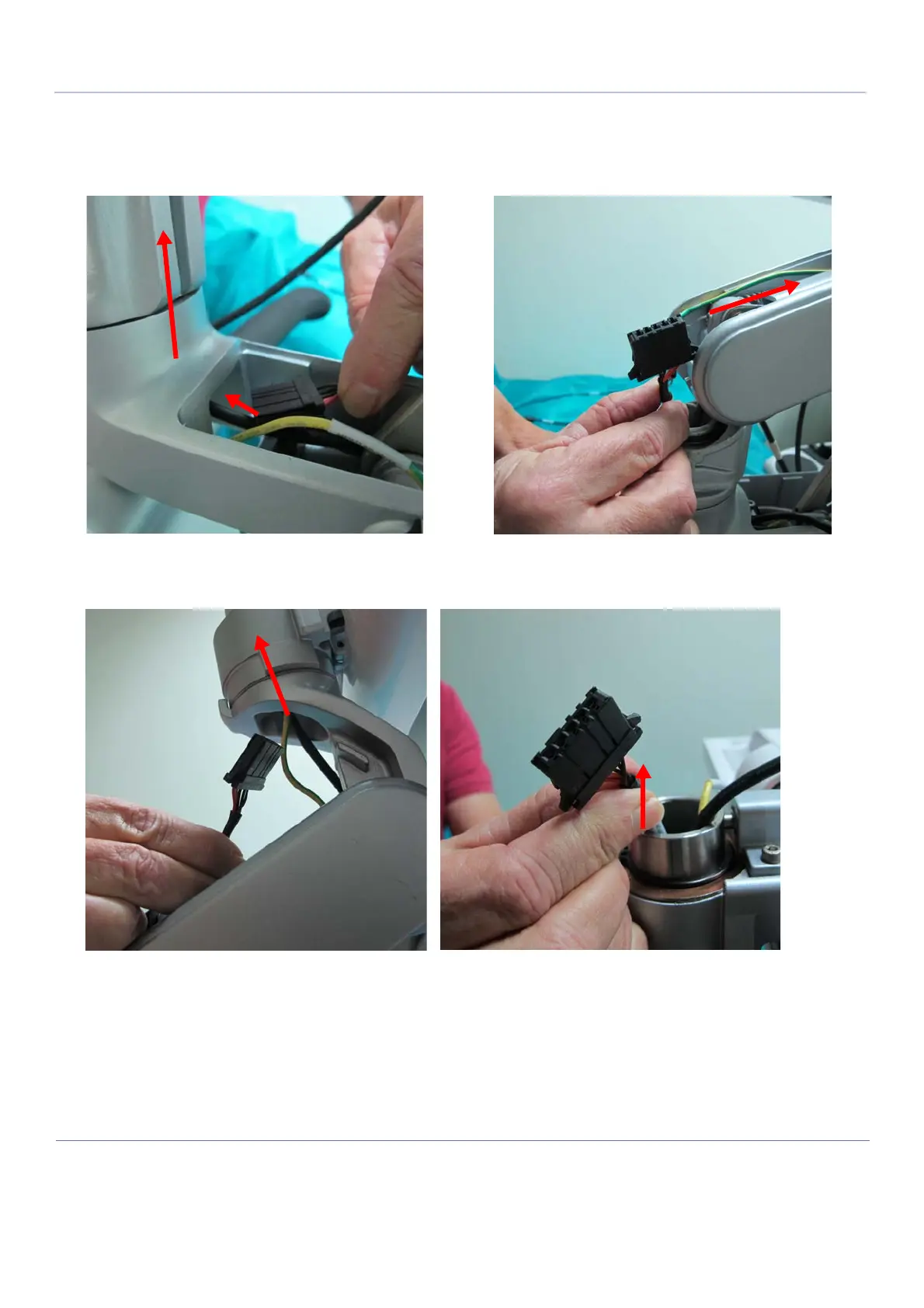

3.)
Thread the
"display to O
PIO cable" v
ia the ba
se of the lower articulate
d arm aperture upward
s
towards the monitor as sh
own in
Figure 8-94 below
and
Figure 8-95 below
.
Figure 8-94 Threading the Display t
o OPIO Cable
Figure 8-95 Threading the Display t
o OPIO Cable
303
305
