IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-96 Section 8-5 - Electronic Cage Components - Replacement Procedures
PRELIMINARY
6.) Loosen 5 BEP securing screws - 3 upper screws (top, left in Figure 8-119) and two lower screws
(bottom, right).
7) Gently pull the BEP assembly outwards and upwards to remove it from the Cabinet Cage - Figure 8-120.

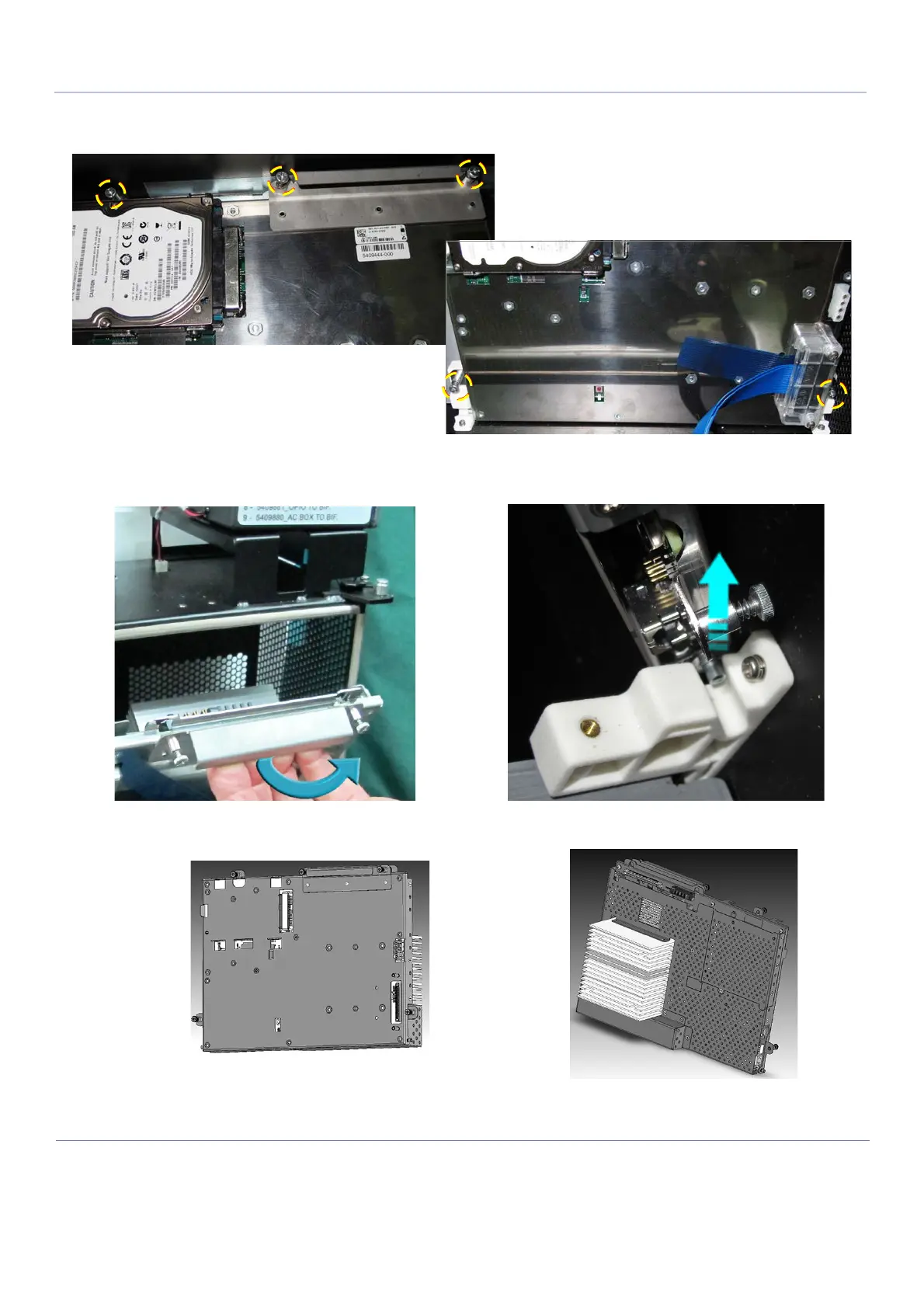

Figure 8-119 BEP Securing Screws
Figure 8-120 Gently Pull the BEP Assembly Outwards
Figure 8-121 BEP Removed
BEP - Front View
BEP - Rear View
