IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-156 Section 8-6 - Mechanical Platform Components - Replacement Procedures
PRELIMINARY
4.) Remove the spring clips securing the particular handle to be removed - Figure 8-190.
5.) Release the small spring that presses on the handle to be replaced - Figure 8-191.
6.) Release the tension in the up-down/swivel cables by pressing the cable tension levers inwards.

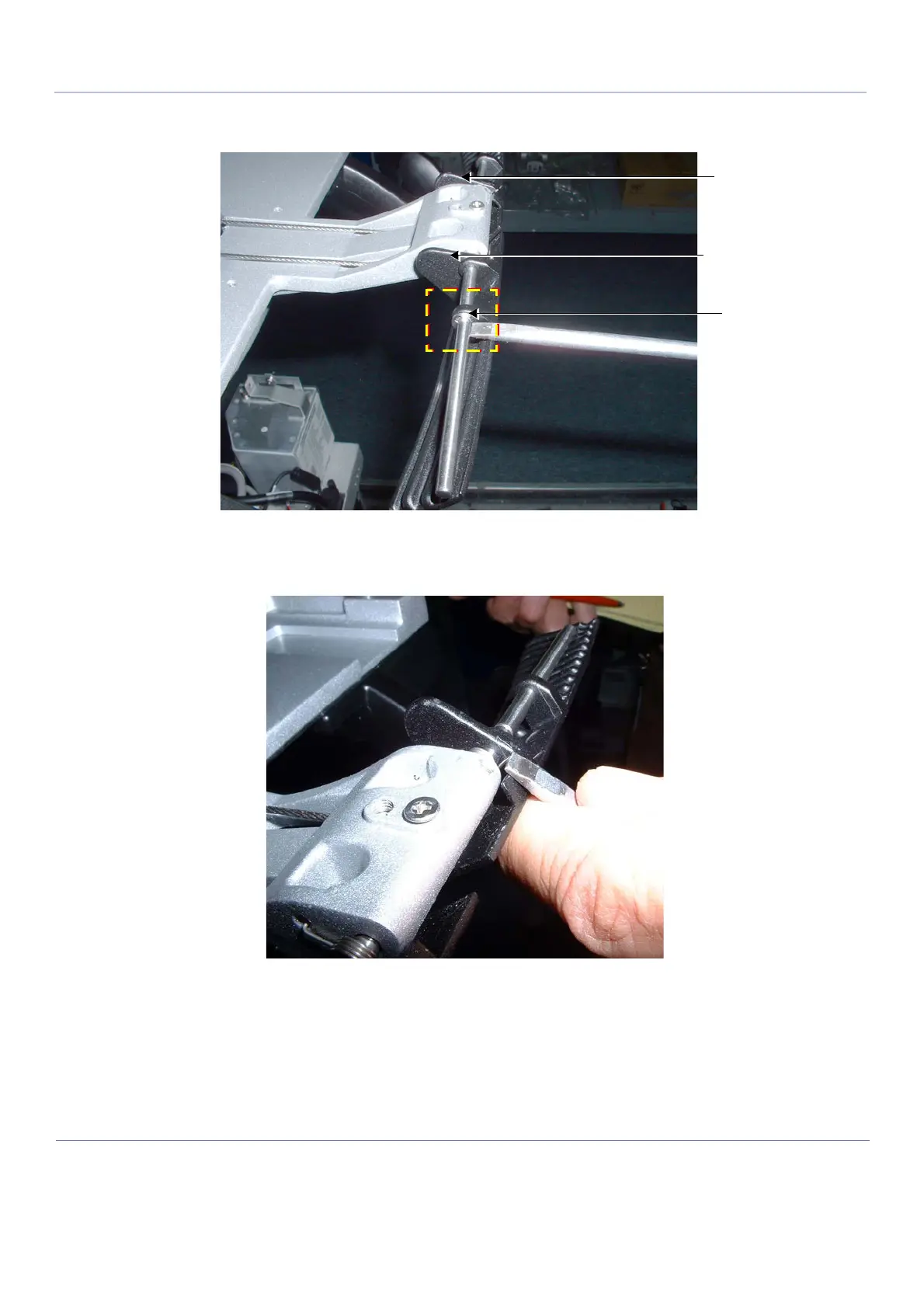

Figure 8-190 Removing Spring Clip that Secures the Swivel Handle
Figure 8-191 Releasing Spring that Presses on the Handle
Spring Clip
Swivel Handle
Up-down Handle
